Milesight AM300(L) Series
9-in-1 Ambience Monitoring Sensor
- Integrated with multiple sensors like humidity, temperature, CO2, light, barometric pressure, PM2.5, PM10, etc.
- Multiple display modes and clear emoticon to easily understand the comfort levels via screen
- Support batteries or DC power supply
- Equipped with traffic LED and buzzer to indicate device status and threshold alarms
- Support more than 20,000 data records store locally
- Compliant with standard LoRaWAN® gateways and network servers
- Quick and easy management with Milesight IoT Cloud

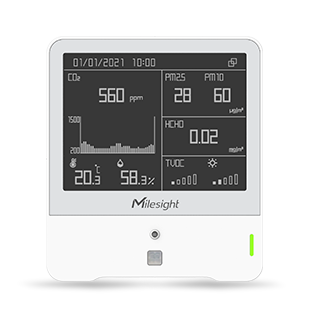

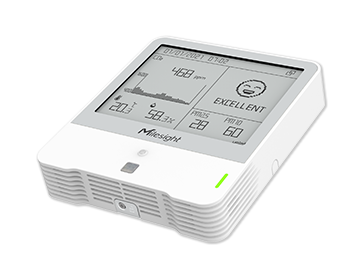

AM300(L) series is a compact indoor ambience monitoring sensor for measurement of temperature, humidity, light, CO2 concentration, HCHO/O3 level, TVOC, barometric pressure, PM2.5, PM10 and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. AM300 series is widely used for offices, stores, classrooms, hospitals, etc.
Sensor data is transmitted using LoRaWAN® technology. Combining Milesight LoRaWAN® gateway and Milesight IoT Cloud,
users can manage all sensor data remotely and visually.
Specifications
Model | AM307(L) | AM308(L) | AM319(L) |
---|---|---|---|
Wireless Transmission | |||
Technology | LoRaWAN® | ||
Frequency | CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4 | ||
Tx Power | 16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz) | ||
Sensitivity | -137dBm @300bps | ||
Work Mode | OTAA/ABP Class A | OTAA/ABP Class A | OTAA/ABP Class C |
Sensors | |||
Temperature | |||
Operating Principle | Digital CMOSens® technology (MEMS) | ||
Range | -20°C~60°C | ||
Accuracy | ± 0.2°C | ||
Resolution | 0.1°C | ||
Humidity | |||
Operating Principle | Digital CMOSens® technology (MEMS) | ||
Range | 0% ~ 100% RH | ||
Accuracy | ± 2% RH | ||
Resolution | 0.5% RH | ||
Motion | |||
Operating Principle | Passive infrared (PIR) | ||
Detection Range | 80 ° Horizontal, 55 ° Vertical, 5m2 | ||
Status | Vacant/Occupied | ||
Light | |||
Operating Principle | Photodiode | ||
Range | 0-60000 Lux (Determine as 6 levels, 0-5) | ||
TVOC | |||
Operating Principle | MOX (MEMS) | ||
Range1 | 1.00 ~ 5.00 (IAQ Rating) | ||
Accuracy | ±1 | ||
Resolution | 0.01 | ||
Barometric Pressure | |||
Operating Principle | Piezoresistive absolute pressure sensor (MEMS) | ||
Range | 260 - 1260 hPa | ||
Accuracy | ±0.5 hPa | ||
Resolution | 0.1 hPa | ||
Carbon Dioxide (CO2) | |||
Operating Principle | Nondispersive Infrared (NDIR) | Photoacoustic | |
Range | 400 ~ 5000 ppm | 400 ~ 2000 ppm | |
Accuracy | ± (30 ppm + 3 % of reading) (0°C~ 50°C, 0% to 85%RH) | ± (50 ppm + 5 % of reading) (-10°C~ 60°C) | |
Resolution | 1 ppm | 1 ppm | |
PM2.5 & PM10 | |||
Operating Principle | - | Laser Scattering | |
Range | - | 0 ~ 1000 µ/m3 | |
Accuracy | - | 0~100(±10µ/m3), 100~1000(±10 %) (-10°C~ 60°C) | |
Resolution | - | 1 µ/m3 | |
Formaldehyde (HCHO)2 | |||
Operating Principle | - | - | Electrochemical |
Range3 | - | - | 0 ~ 1.25 mg/m3 |
Accuracy | - | - | ±10 % |
Resolution | - | - | 0.01 mg/m3 |
Working Life | - | - | 6 Years |
Ozone (O3)2 | |||
Operating Principle | - | - | Electrochemical |
Range | - | - | 0 ~ 10 ppm |
Accuracy | - | - | ±5 % FS |
Resolution | - | - | 0.01 ppm |
Working Life | - | - | 2 Years |
Display & Configuration | |||
Display | AM307 & AM308 & AM319: 4.2-inch Black & White E-Ink Screen AM307L & AM308L & AM319L: Not Support | ||
Button | 1 x Power Button + 1 x Reset Button | ||
LED & Buzzer | 1 x Traffic Light Status Indicator + 1 x Buzzer | ||
Configuration | 1. Mobile App via NFC 2. PC software via NFC or USB Type-C port | ||
Physical Characteristics | |||
Power Supply | 1. 4 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries 2. 5V/1A by Type-C Port | 5V/1A by Type-C Port | |
Battery Life4 (10 min interval, 25°C) | AM307: Around 3 Years AM307L: Around 4 Years | AM308: Over 1 Year AM308L: Around 1.5 Year |
- |
Operating Temperature | -20°C - 60°C (E-Ink Screen: 0°C - 40°C) | ||
Relative Humidity | 10% - 90% (non-condensing) | ||
Ingress Protection | IP30 | ||
Dimension | 100.8 x 114 x 22 mm (3.97 x 4.49 x 0.87 in) | ||
Installation | 3M Tape Mounting, Wall Screw Mounting | ||
Approvals | |||
Regulatory | CE, FCC, ISED | ||
Environmental | RoHS |
