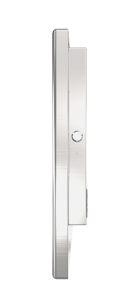

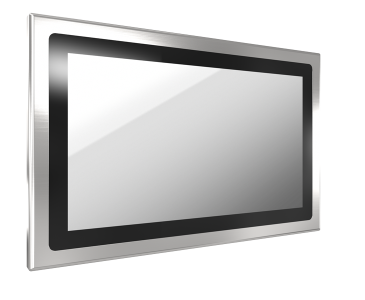

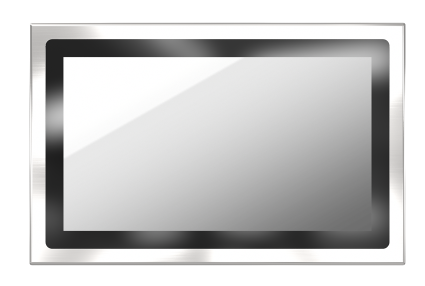

C&T Solution SIO-W221-8365UE
21.5" 16:9 FHD Resistive / Capacitive Touch Stainless Steel Panel PC with IntelŽ Core? i5-8365UE Processor
- 21.5? Full HD 16:9 LCD with resistive 5-wire / projected capacitive touch
- IntelŽ Core? i5-8365UE Processor, 4.10 GHz
- 1x 4GB DDR4 2400MHz SO-DIMM, 1x 64GB mSATA

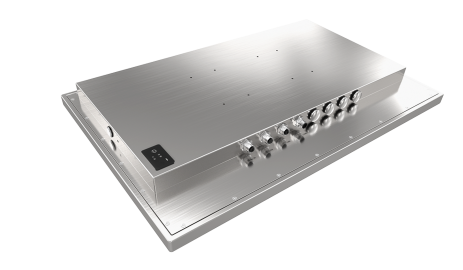

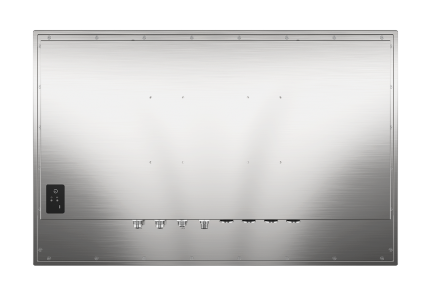

- 1x M12 for 2x USB 2.0, 1x M12 for LAN, 1x M12 for COM
- 1x Full-size Mini PCIe for expansion
- Support 110V to 240V AC power input by M12 Power Connector
- -10°C to 50°C operating temperature
- Full system IP66/IP69K with Stainless Steel SUS316 construction
- Touch Function ON/OFF Switch
The SIO series full system IP66/IP69K waterproof stainless steel Panel PC is IntelŽ Core? i5-8365UE Processor, 6M Cache, up to 4.10 GHz. Featuring with a certified IP66 waterproof and dustproof stainless steel enclosure and secure lockable M12 connectors to protect against ingress of high temperature and high pressure water. It's wide operating temperature of -10°C to 50°C. Its IP69K protection makes the new monitor also suited for washdown applications like high-pressure cleaning.
Specification
- Display
- LCD Size
21.5" (16:9)
Max. Resolution
1920 x 1080 (FHD)
Brightness (cd/m2)
300 / 1000 (Optional)
Contrast Ratio
1,000:1
LCD Color
16.7M
Pixel Pitch (mm)
0.248 (H) x 0.248 (V)
Viewing Angle (H-V)
178 / 178
Backlight MTBF
50000 hrs (LED Backlight)
Touch
- Resistive 5-wire
For SIO-W221R-8365UE
Projected Capacitive
For SIO-W221C-8365UE
System
- Processor
IntelŽ Core? i5-8365UE Processor 6M Cache, up to 4.10 GHz
System Chipset
SoC integrated
LAN Chipset
GbE2: IntelŽ I210-IT (Support Wake-on-LAN and PXE)
Audio Codec
Realtek ALC888S HD Audio Codec
System Memory
1x 4GB DDR4 2400MHz SO-DIMM slot
Max. Size
16GB
BIOS
AMI uEFI 256MB SPI flash
Watchdog
Software Programmable Supports 1~255 sec. System Reset
Storage
- mSATA
64GB mSATA SSD
Expansion
- Mini PCI Express
1x Full-size Mini PCIe
SIM Socket
1x Internal SIM socket
I/O
- COM
1x RS-232/422/485 by M12 A-Code 8-pin
USB
2x USB 2.0 by M12 A-code 8-pin
LAN
1x LAN by M12 X-Code 8-pin
Others
1x Additional RS-232/422/485 by M12 A-Code 8-pin
2x Additional USB 2.0 by M12 A-code 8-pin
1x Additional LAN by M12 X-Code 8-pin
2x WiFi Antenna
Other Features
- OSD
OSD: Power On/Off, Reset
Touch: On/Off switch
Operating System
- Windows
Windows 10
Linux
Linux kernel 3.X
Power
- Power Mode
ATX
Power Supply Voltage
110 ~ 240V AC Input
Optional 12V DC Input
Power Connector
M12 A-code 4-pin
Power Adaptor
Optional AC/DC 12V/5A, 60W
Environment
- Operating Temp.
-10°C to 50°C
Storage Temp.
-20°C to 70°C
Relative Humidity
10% to 80% (non-condensing)
Vibration
With SSD: 2.4 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock
With SSD: 20G, half sine, 11ms
IP Level
Full System IP66/IP69K
Standards / Certification
CE, FCC Class B
Physical
- Front Panel Construction
Stainless Steel SUS316
Dimension
588.5 (W) x 380 (H) x 52.8 (D) mm
Weight
SIO-W221R-8365UE: 12.11Kg
SIO-W221C-8365UE: 11.97Kg
Mounting
VESA Mounting Holes 100 x 100mm or 200 x 100mm
Optional Yoke Mount, Panel Mount
ORDERING INFORMATION
Available Modules | |
SIO-W221R-8365UE | 21.5" 16:9 FHD Resistive Touch Stainless Steel Panel PC with IntelŽ Core? i5-8365UE Processor |
SIO-W221C-8365UE | 21.5" 16:9 FHD Capacitive Touch Stainless Steel Panel PC with IntelŽ Core? i5-8365UE Processor |
SIO-W221HR-8365UE | 21.5" 16:9 FHD HB 1000nits Resistive Touch Stainless Steel Panel PC with IntelŽ Core? i5-8365UE Processor |
SIO-W221HC-8365UE | 21.5" 16:9 FHD HB 1000nits Capacitive Touch Stainless Steel Panel PC with IntelŽ Core? i5-8365UE Processor |
Optional Accessories | |
1-TPWR00027 | Waterproof AC Power Input M12 A-CODE 4P PWR Cable to Plug Type_US L=3M |
1-TPWR00028 | Waterproof AC Power Input M12 A-CODE 4P PWR Cable to Plug Type_EU L=3M |
1-TUSB00034 | Waterproof USB 2.0 Cable 3M |
1-TCOM00019 | Waterproof COM Cable 3M |
1-TLAN00015 | Waterproof LAN Cable 3M |
Packing List
- 1x SIO-215 Series Stainless Steel Panel PC
- 1x Utility DVD Driver
- 1x Waterproof Connector Cover Set
