Beacon DV-95F252

The DV-95F252 is a perfect solution for Dual head DVI/VGA + Audio USB KVM Extender over SFP Optical Fiber. The system includes DV-95F252T Dual head Transmitter and DV-95F252R Dual head Receiver. The Transmitter connects to PC’s 2 DVI/VGA, Audio, and USB; the Receiver connects to 2 DVI/VGA displays, speaker, microphone, and USB devices. The solution is based on the standard of LC or SC, SM or MM, Single core SFP Fiber-Optic module (1.25Gbps up).

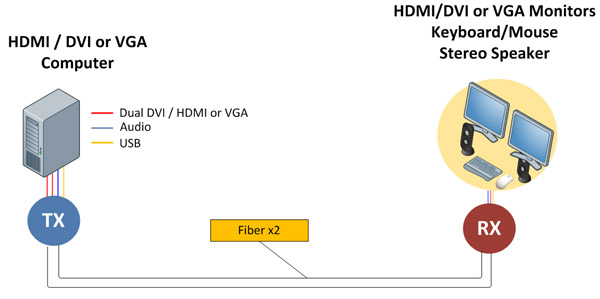

The Transmitter converts input signals (video, audio, USB) and directly sends to the Receiver. On the other end of Receiver, receiving directly from the Transmitter then converts back to video, audio, USB… and sends to display, speaker, USB devices. It is a perfect solution for the Central Control Room Dual Head DVI/VGA KVM applications.

SPECIFICATION

Model No.		Transmitter	Receiver
		DV-95F252T	DV-95F252R
Connectors	DVI-I Input	2	N/A
	DVI-I Output	N/A	2
	USB	2 x USB-B to PC	4 x USB-A
	Audio	2 x Line-In, 2 x Line-Out	2 x MIC-In, 2 x Line-Out
	Power	A C 100 ~ 240V
	System Port	2 x LC or SC, SM or MM, single core SFP Module
Resolution		1080p or PC 1920 x 1200 @ 60Hz
Inter-connect Cable		Single Mode (3KM) or Multi Mode (550M), single core Optical Fiber Cable
Environment	Operation Temp.	0 ~ 70°C
	Storage Temp.	-20 ~ 85°C
	Humidity	0 ~ 80% Non-condensing
Physical Properties	Material	Metal
	Weight	1100g	1100g
	Dimension (L x W x H)	170 x 150 x 50 mm	170 x 150 x 50 mm
