Beacon AV-201
VGA + Audio to HDMI Converter
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Convert VGA + Audio input to HDMI output.
- Can be directly powered by the VGA source.
- Supports wide-range resolutions: 800x600, 1024x768, 1152x864, 1280x600, 1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1366x768, 1400x900, 1400x1050, 1600x900, 1600x1200, 1680x1050, 1920x1080.

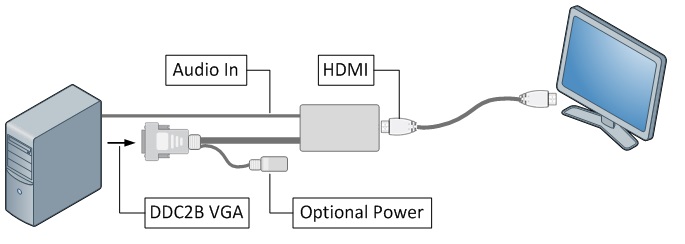

The AV-201 is designed to take VGA and Audio signal from PC or Laptop and convert to digital HDMI output of wide-range HDTV up to 1080p. The unit comes with a pigtail of HD-15 connector for VGA input source direct attachment. With the very low power consumption design, the unit can be directly powered from VGA DDC2B without external power supply.
| SPECIFICATION |
| Model No. | AV-201 |
| VGA In | HD-15 pigtail Male connector, 0.45V ~ 1.1V (P-P) |
| Audio In | 3.5mm Stereo |
| HDMI Output | HDMI Female connector, HDMI 1.3 and DVI 1.0 |
| Max Resolution | 1080p@60HZ |
| Power consumption | 0.5 W (Max) |
| Operating Temp. | 0 ~ 50oC |
| Humidity | 0 ~ 80% Non-condensing |
| Housing( Lx W x H) | Aluminium, 75 x 37 x 22mm |
| Weight | 111g |
