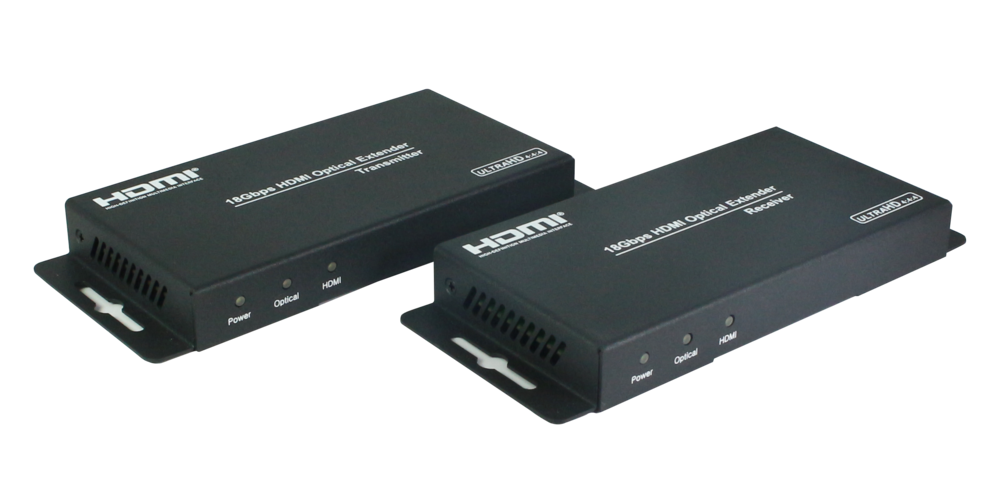

Beacon BE-96F02b

The BE-96F02b is a HDMI 2.0b with USB over single core of SM or MM (50/125um/OM3) Optical Fiber cable KVM Extender.

The system supports HDMI 2.0b with resolution up to 4K2K@50/60Hz (YUV 4:4:4) as well as fully HDCP 2.2/1.4 and DVI compliant in non-compressed, lossless extension. It also supports bi-directional EDID, Hot Plug, IR and add-on USB for the TV screen, Set-top box as well as remote PC control.

Compared to similar copper-based solutions, optical signal transmission provides inherent galvanic isolation and excellent immunity to electromagnetic interference. The units also feature metal enclosures, providing further protection against radiated noise. Locking power connector ensure trouble-free installation and long-lasting, reliable operation.

SPECIFICATION

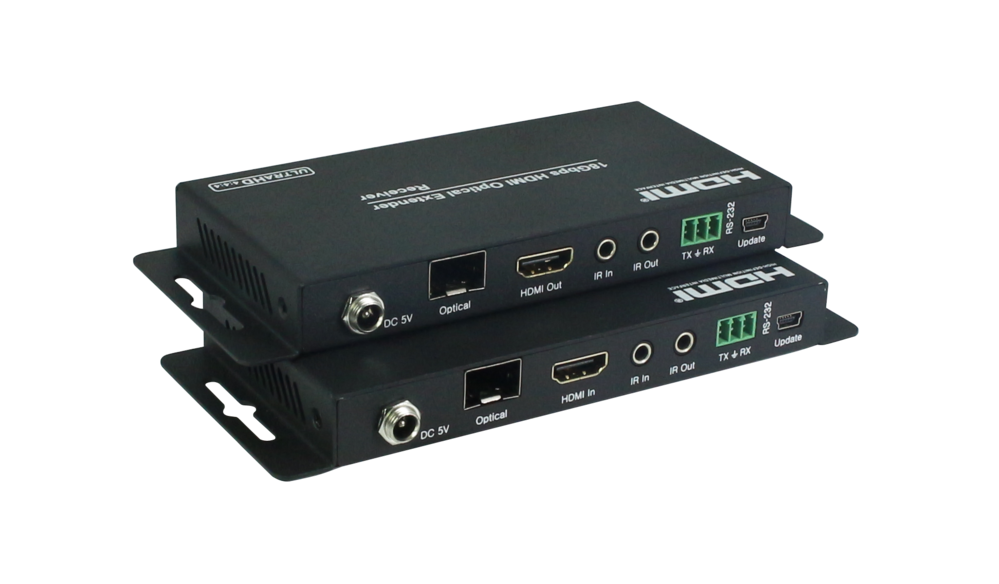

Model No.		AV-96F02bT	BE-401T	AV-9602bR	BE-401R
Connectors	HDMI Input	1	N/A	N/A	N/A
	HDMI Output	N/A	N/A	1	N/A
	IR	1 x IR In (3.5 mm)	N/A	1 x IR Out (3.5 mm)	N/A
	Phoenix RS-232	inter-connect
	USB Upstream	N/A	1 x USB-B	N/A	1 x USB-B
	USB Downstream	N/A	4 x USB-A	N/A	2 x USB-A
HDMI Compliance		HDMI 2.0b
HDCP Compliance		HDCP 2.2 and HDCP 1.4
Video Bandwidth		18Gbps
Color Space		RGB, YCbCr 4:4:4, YCbCr 4:2:2
Resolution		Up to 4K2K@50/60Hz(YUV 4:4:4), 4K2K@30Hz, 1080p@120Hz, and 1080p 3d@60Hz
Color Depth		8-bit, 10-bit, 12-bit
HDMI Audio Formats		LPCM 2/5.1/7.1 CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Operation Range		Up to 3300 feet/1000meters over single-mode fiber cable. Up to 1000feet/300 meters over multi-mode fiber cable.
IR Frequency		20kHz-60KHz
RS-232		4800-115200bps
ESD Protection		Human body-Model: ±8KV(air-gap discharge) & ±4KV(contact discharge)
Power		DC 5V 1A/3W	From USB	DC 5V 1A/3W	From USB
Environment	Operation Temp.	0 ~ 40°C
	Storage Temp.	-40 ~ 60°C
	Humidity	20 ~ 90% Non-condensing
Physical Properties	Material	Metal
	Weight	256g	150g	256g	150g
	Dimension (L x W x H) mm	100 x 65x 25	55 x 95x 25	100 x 65x 25	55 x 95 x 25
