Beacon BE-9622

The BE-9622 is a Dual HDMI with USB KVM Extender over single CAT6 cable in distance of 120 meters. The system includes BE-9622T Transmitter (TX) and BE-9622R Receiver (RX). The TX contains 2 HDMI and 2 USB inputs for either 1 PC with 2 HDMI, or 2 PCs with each 1 HDMI. The RX provides an USB console of keyboard/mouse + 2 HDMI outputs for dual displays.

The communication between TX and RX requires only ONE CAT6 cable for the 2 HDMI video and USB keyboard/mouse signals. Except this, the TX provides local console port, the RX provides remote PC port. This add-on feature provides the TX user privilege to Lock/Unlock RX user, the RX user can use the same keyboard/mouse for the local or Remote PC. The product is based on Advanced Video Transport (AVT) Digital Communication technologies which TX and RX are 100% Earth Ground Isolated in 1080p resolution, extending distance up to 120 meters.

SPECIFICATION

Model No.		Transmitter		Receiver
		BE-9622T		BE-9622R

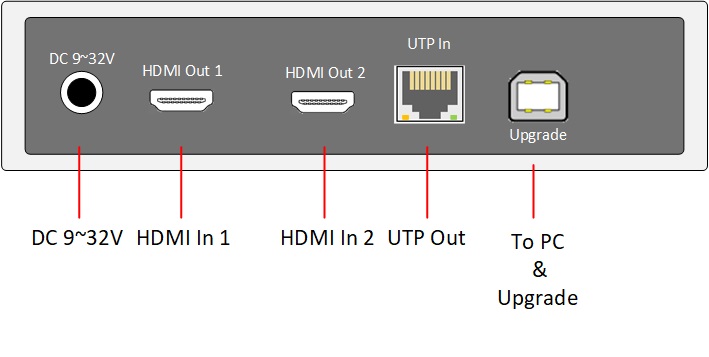

Connectors	HDMI Input	2		N/A
	HDMI Output	N/A		2
	Power	DC 9~32V/1A
	Network Port	1 x RJ45
	USB Upstream	1 x USB-B (To PC & for Upgrade) 1 x USB-B (To PC)		1 x USB-B (To PC & for Upgrade)
	USB to Devices	2		2
	Mounting Holes	Yes
Resolution		1080p
Inter-connect Cable		CAT 6 / 7
Environment	Operation Temperature	0 ~ 50°C
	Storage Temperature	-20 ~ 85°C
	Humidity	0 ~ 80% Non-condensing
Physical Properties	Material	Metal (Black)
	Weight	453g		458g
	Dimension (L x W x H)	150 x 110 x 28 mm		150 x 110 x 28 mm
