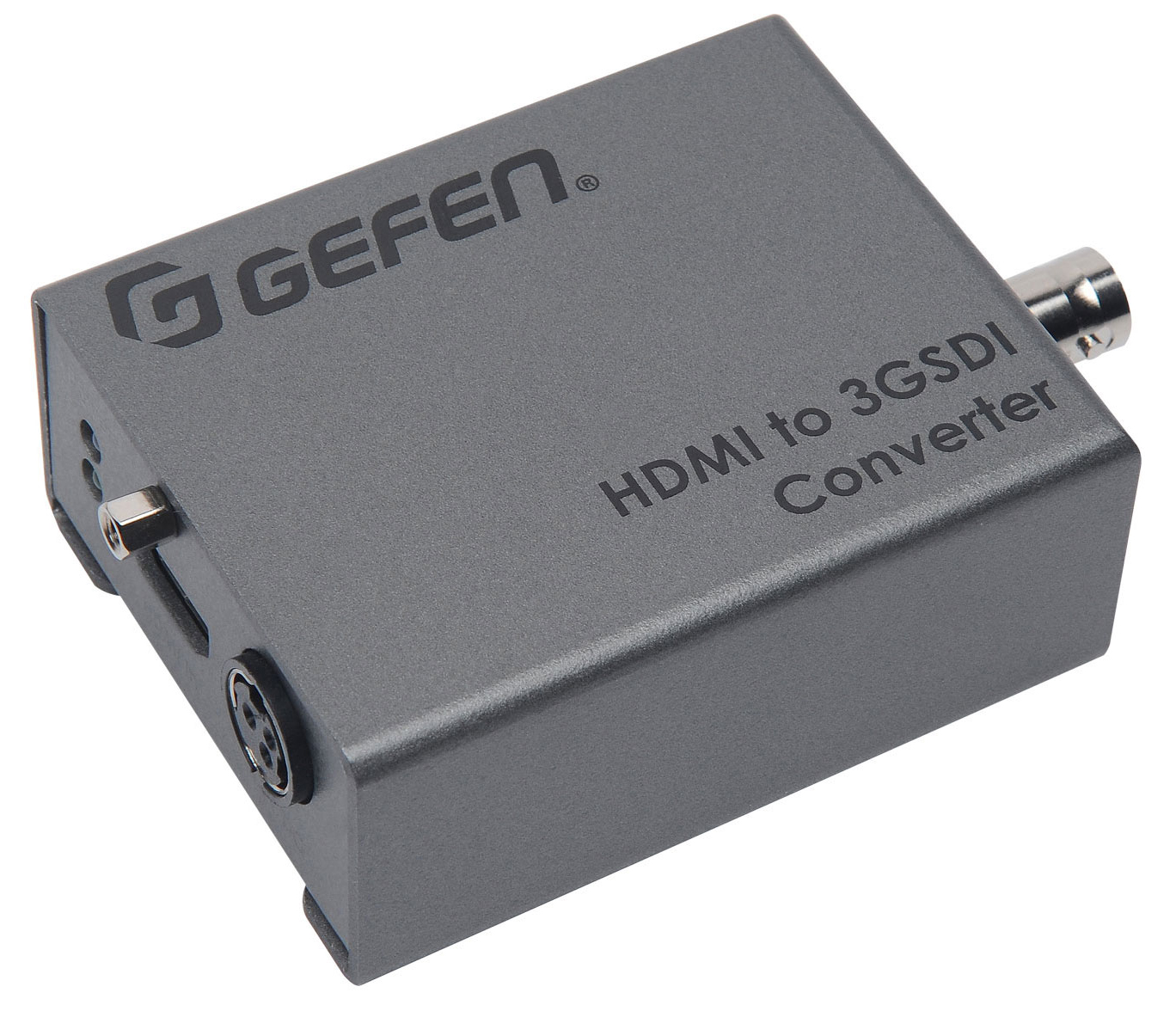

Gefen EXT-HD-3G-C
HDMI to 3GSDI Converter
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Converts HDMI to SDI
- Input resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD
- Output resolutions up to 1080p60
- Supports HDMI 12 bit color and SDI 10-bit color
- Supports Color Spaces: 4:4:4 (RGB and YCbCr) and 4:2:2 (YCbCr )
- Supports 3G-SDI Levels A and B
- Up to LPCM 7.1 audio support
- Field configurable via DIP switch settings or Gefen Syner-G™ software
- Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management
- Mini USB port for use with Gefen Syner-G™
- Wide power supply operating range (6V to 24V DC)
- Locking power supply connector
- 1/4-20 industry-standard camera gear attachment thread on bottom

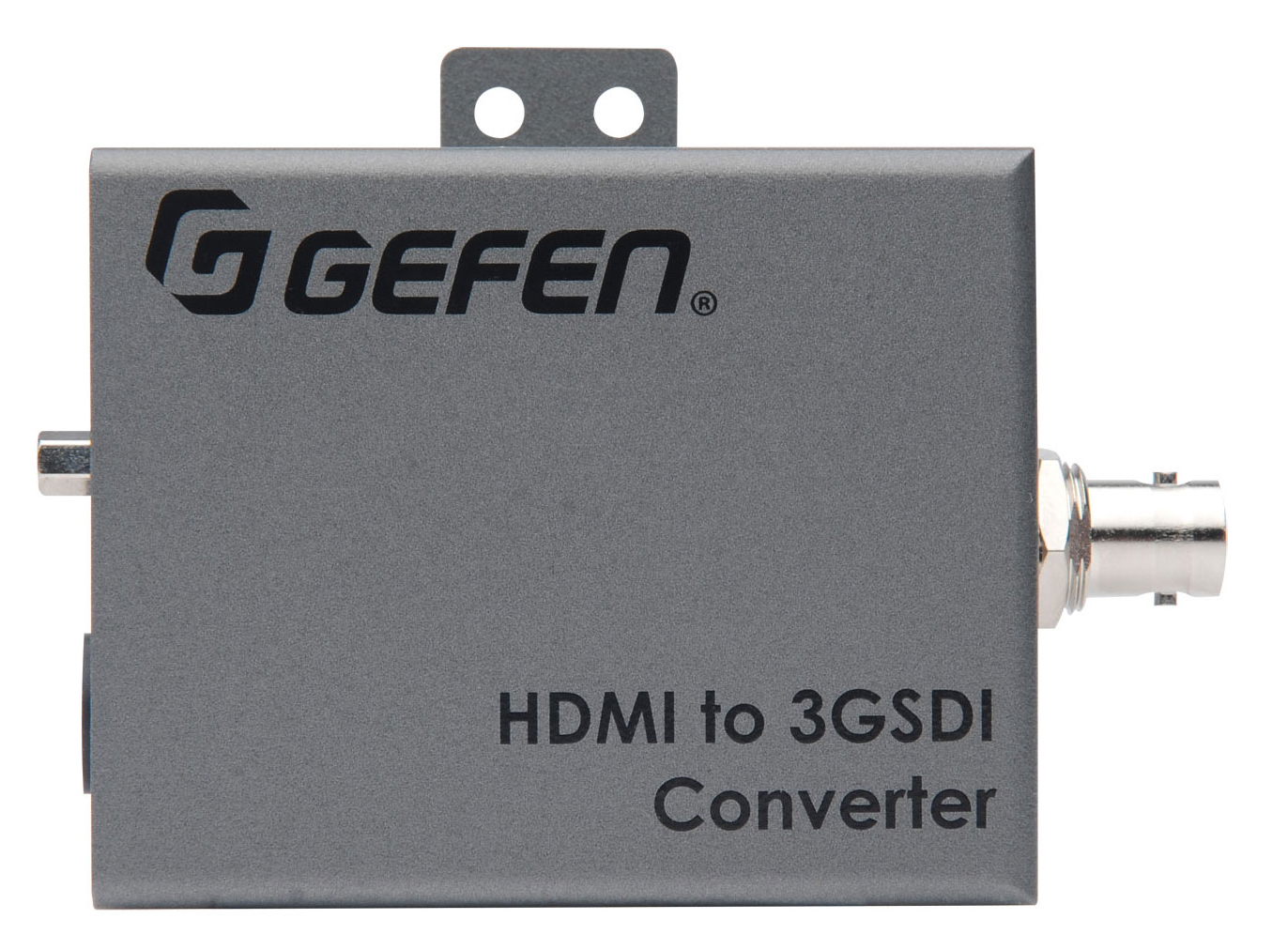

- Surface-mountable using the included detachable bracket

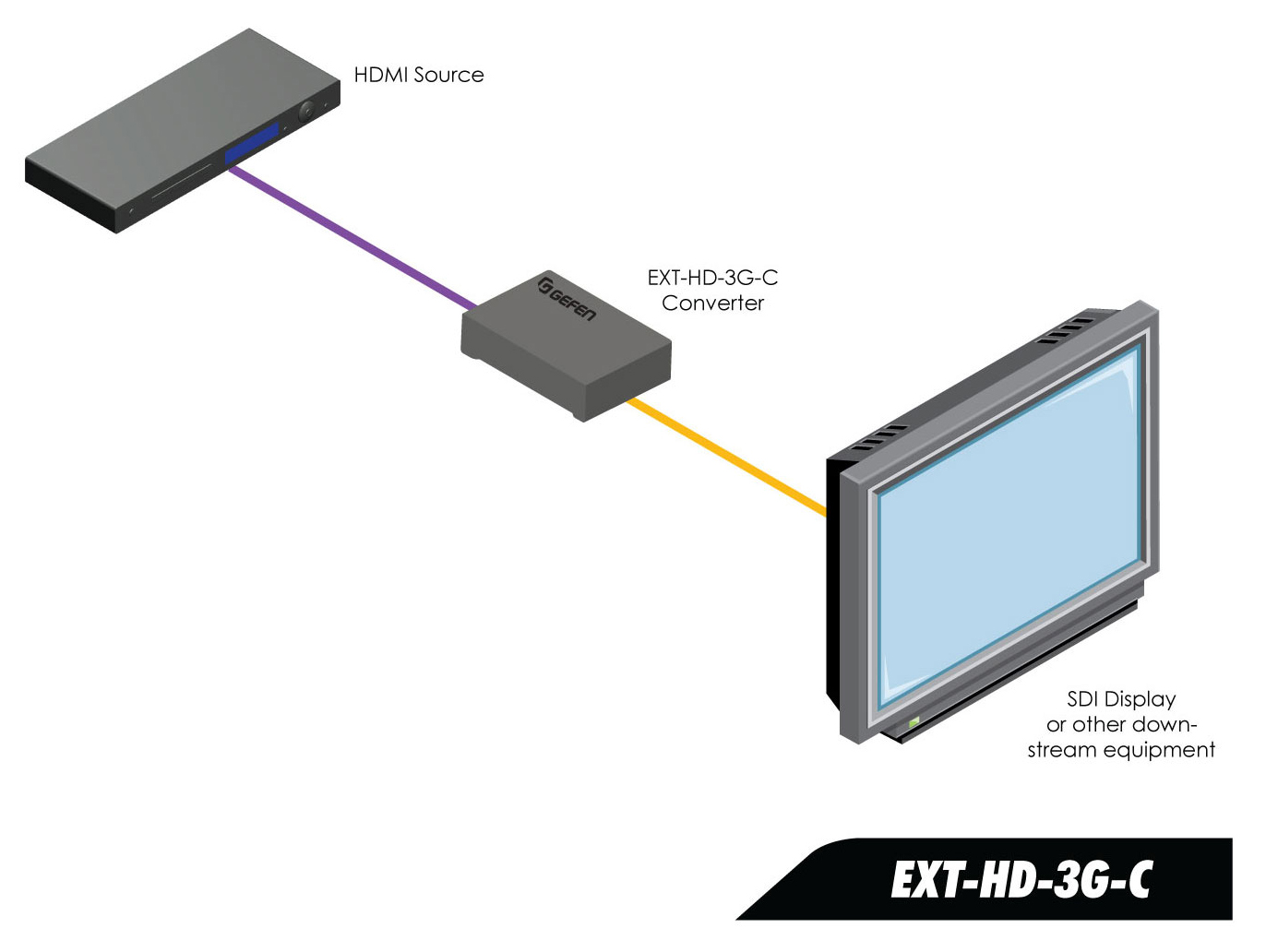

Use an HDMI source with an SDI display or downstream equipment
The Gefen HD-3G-C converts audio and video from HDMI to 3G-SDI and single link HD-SDI. Resolutions up to 1080p Full HD and audio formats up to 8 channels of LPCM are supported. This product is fully compatible with the Gefen Syner-G software suite. The Gefen Syner-G is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products. The Gefen EXT-HD-3G-C's compact enclosure, while light enough to be held in place using double sided Velcro® tape, features an ISO standard 1/4-20 attachment provision as well as a detachable surface-mounting bracket. This, along with a flexible power input circuitry capable of accepting a wide range of DC voltages and a locking power supply connector, make the EXT-HD-3G-C ideal for cutting edge mobile A/V applications as well as high performance fixed installations.
Specifications
- Maximum Pixel Clock:
150 MHz
Maximum TMDS Clock:
225 MHz

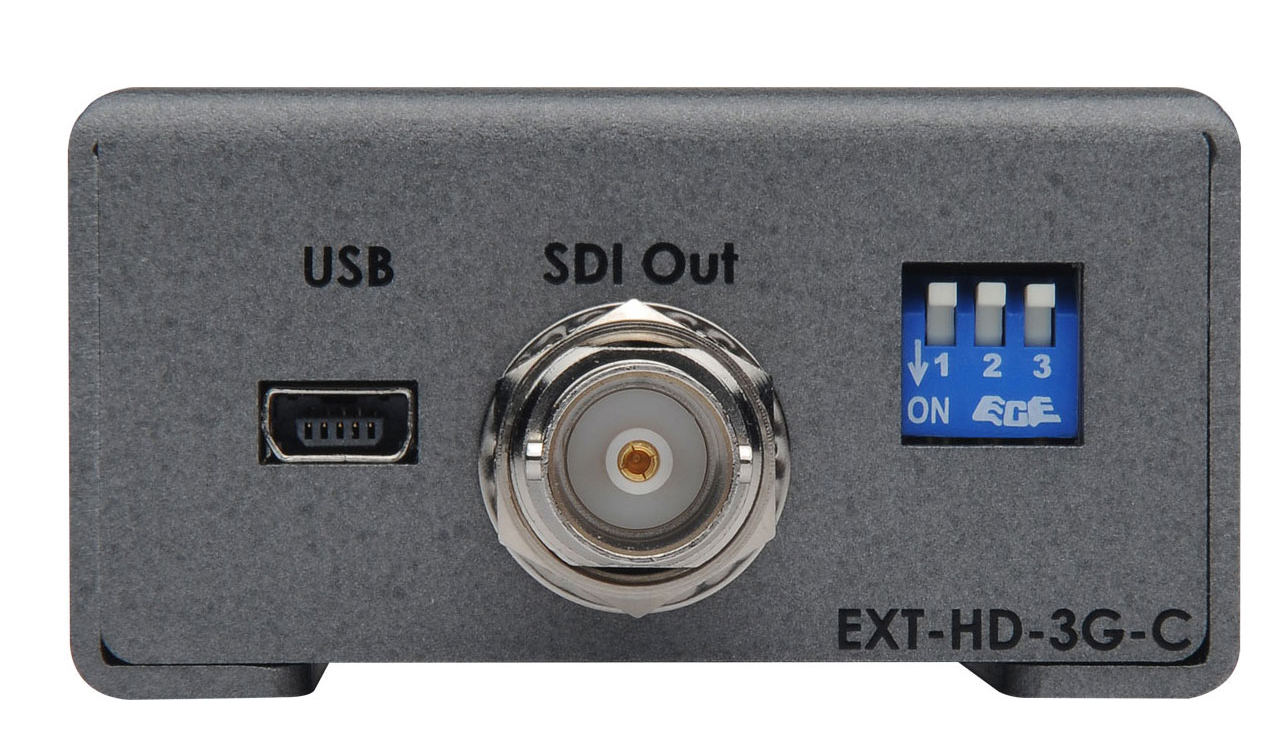

Video Input Connector:
(1) HDMI Type A 19-pin, female, locking
Video Output Connector:
(1) SDI BNC-type, female
USB Connector:
(1) Mini-B
Configuration Switches:
(3) DIP-type
HDMI Indicator:
(1) LED, green
Power Indicator:
(1) LED, blue
Power Supply Connector:
(1) 3-pin, locking
Power Supply:
12V DC nominal (6V to 24V DC operating range)
Power Consumption):
3W maximum
Operating Temperature:
+32 to +122 °F (0 to +50°C)
Operating Humidity:
5% to 90% RH, non-condensing
Storage Temperature:
-4 to +185°F (-20 to +85°C)
Storage Humidity:
0% to 95% RH, non-condensing
MTBF:
50000 hours
Dimensions (excluding connectors, W x H x D):
2.9" x 1.2" x 2.3" (74mm x 30mm x 59mm)
Net Unit Weight:
0.3 lbs (0.15 kg)
In The Box
| HDMI to 3GSDI Converter (EXT-HD-3G-C) | 1 |
| 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM) | 1 |
| Surface Mounting Bracket | 1 |
| 12V DC Power Supply (EXT-PS121.5AIP-3P-6) | 1 |
| Quick-Start Guide (QSG-EXT-HD-3G-C) | 1 |
