Gefen EXT-VGAA-HD-SC

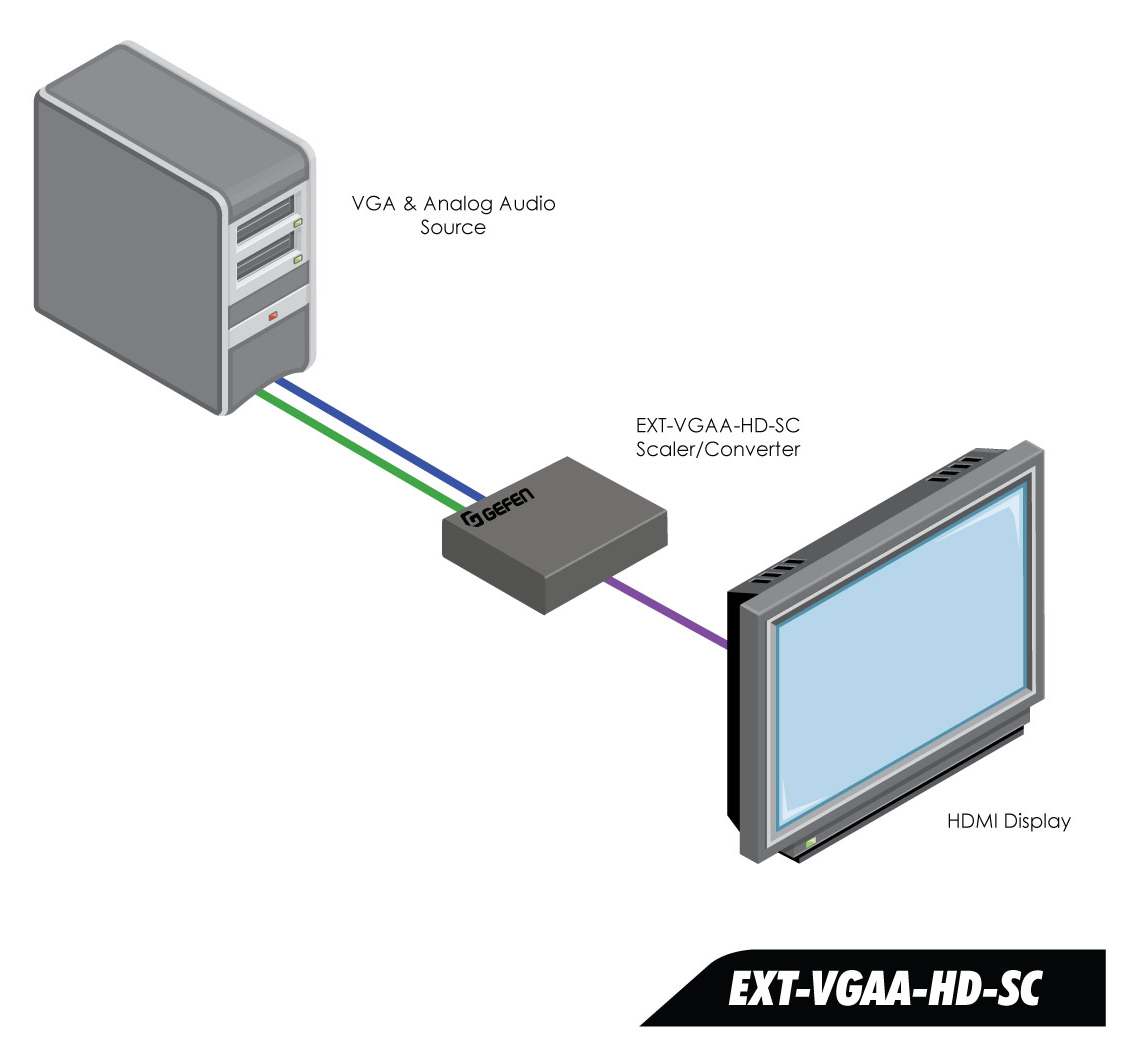

Scale and convert video and audio from a VGA source for use with an HDMI Display

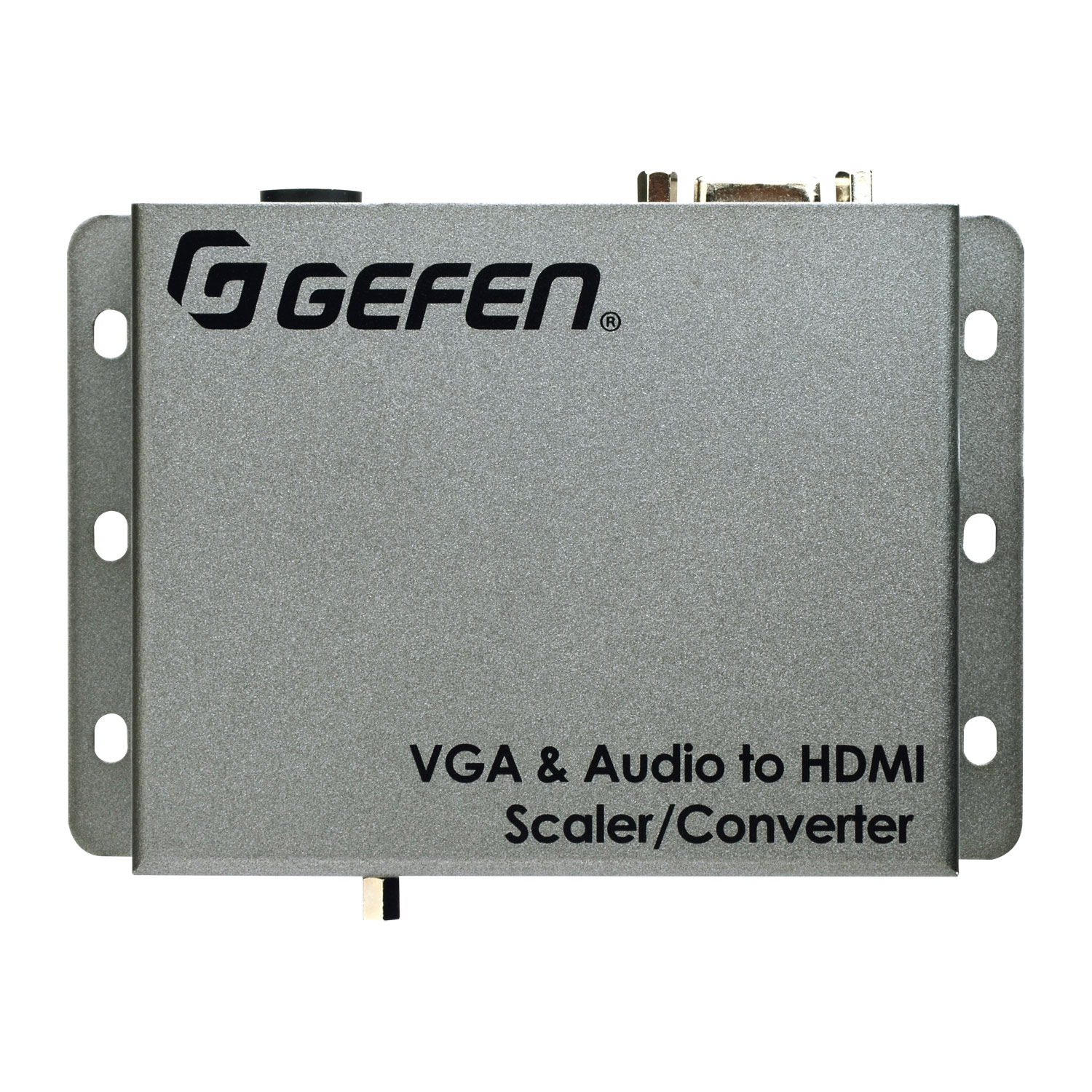

The Gefen EXT-VGAA-HD-SC scales and converts video from a VGA source to digital video from an HDMI output. It can also embed analog L/R audio into HDMI. Video can be scaled up to 1080p Full HD and 1920 x 1200 (WUXGA). An intuitive and comprehensive on-screen display (OSD) menu allows easy set-up and control. This product can be configured and updated using the Gefen Syner-G™ software suite. The Gefen Syner-G™ is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products. Wide power supply operating range of 6V to 24V DC offers installation flexibility for mobile use, in complex studio systems with a common power supply, and with remotely located power sources. A locking power supply connector, small footprint, and a surface-mountable enclosure facilitate easy and secure installation.

Specifications

Maximum Pixel Clock:
165 MHz

Maximum TMDS Clock:
225 MHz

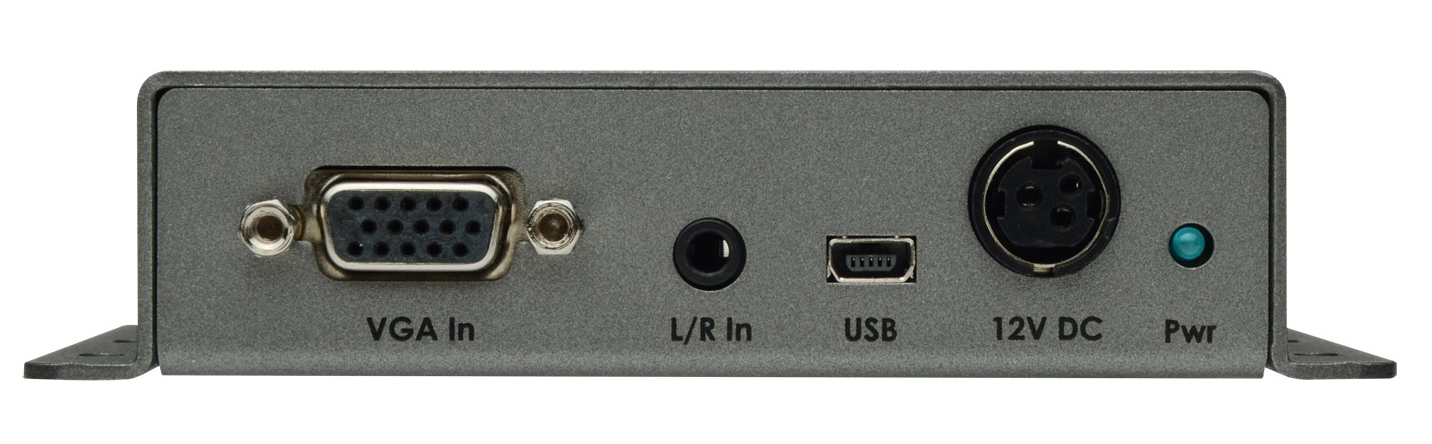

Video Input Connector:
(1) VGA HD-15, female

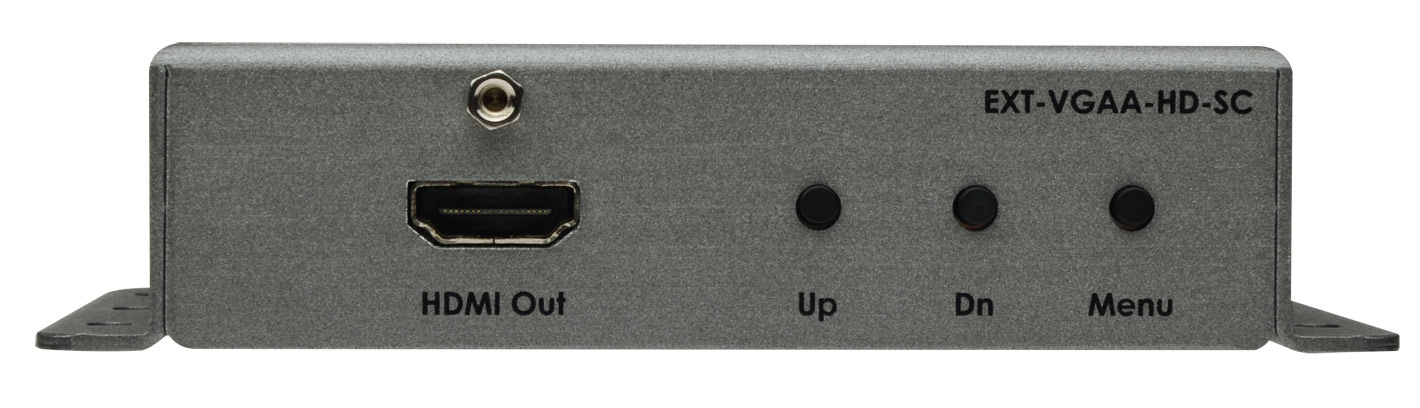

Video Output Connector:
(1) HDMI Type A 19-pin, female, locking

Audio Input Connector:
(1) 3.5mm mini-stereo jack

USB Connector:
(1) Mini-B

Menu/Navigation Switches:
(3) tact-type

Power Indicator:
(1) LED, blue

Power Supply Connector:
(1) 3-pin, locking

Power Supply:
12V DC (6V to 24V DC operating range)

Power Consumption:
2.6W maximum

Operating Temperature:
+32 to +122 °F (0 to +50 °C)
Operating Humidity:
5% to 90% RH, non-condensing

Storage Temperature:
-4 to +185 °F (-20 to +85 °C)

Storage Humidity:
0% to 95% RH, non-condensing

MTBF:
50000 hours

Dimensions (excluding connectors, W x H x D):
4.9" x 1" x 3.2" (123mm x 26mm x 82mm)

Net Unit Weight:
0.4 lbs. (0.2kg)

In The Box

VGA & Audio to HD Scaler / Converter (EXT-VGA-DVI-SC)	1
6 ft. Locking VGA Cable (M-M) (CAB-VGA-06MM-O)	1
3.5 MM Mini Stereo Cable (M-M) (CAB-MP-ST-06MM-BC)	1
12V DC Power Supply (EXT-PS121.5AIP-3P-6)	1
Quick-Start Guide	1
