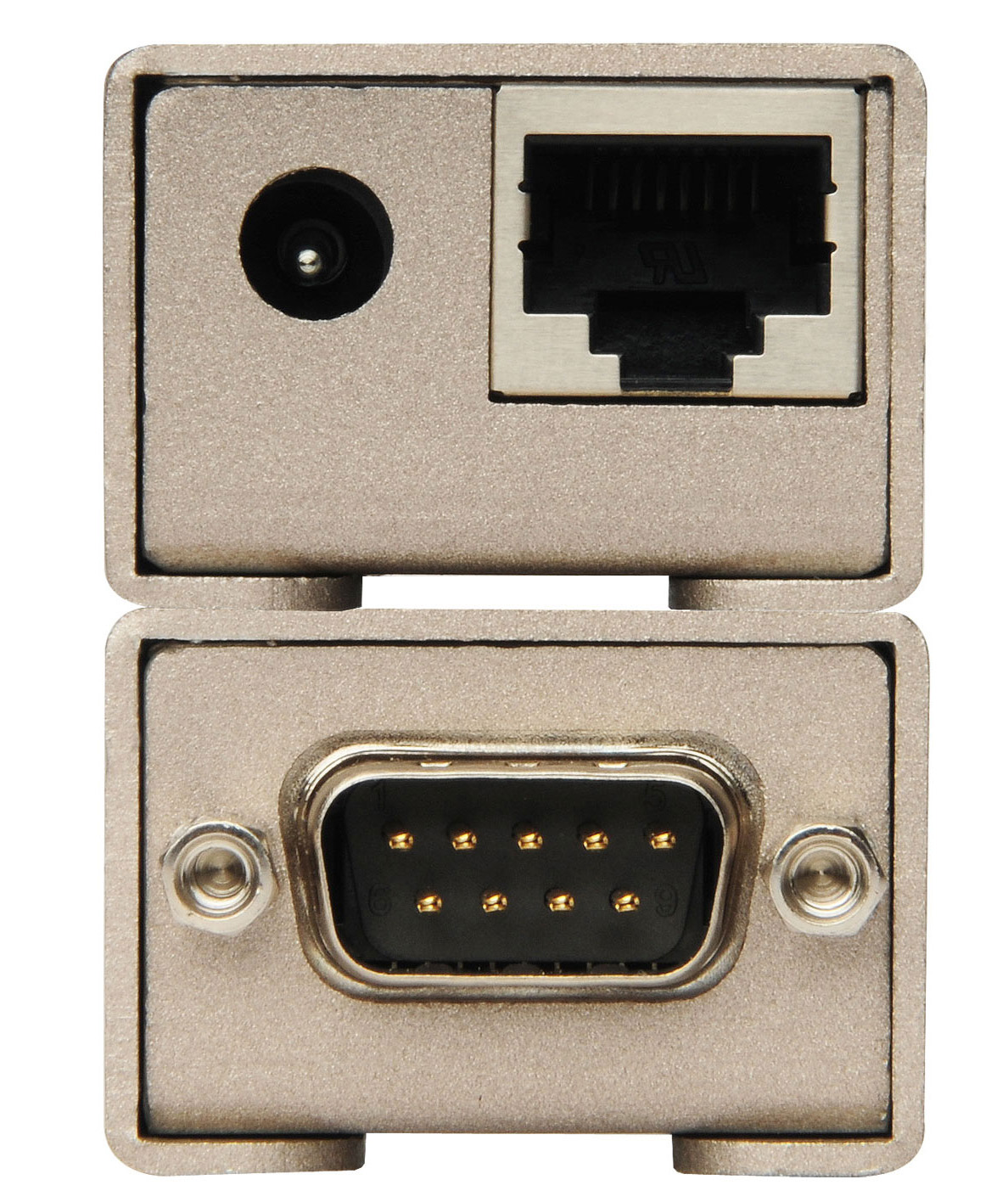

Gefen EXT-RS232
RS232 extender
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Extends any RS-232 compliant device up to 1000 feet (300 meters) from the computer
- Supports the full 9-pin RS-232 standard with a maximum data transfer rate of 115,200 baud
- Perfect for digital signage applications
- Only one CAT-5e cable required for extension
- Power only required on Sender unit
Extend your RS-232 device up to 1000 feet away from your computer.
Now you can extend your RS-232 peripherals to a remote location 1000 feet (300 meters) away. Control your favorite Gefen products that use RS-232 or any other serial control devices that use RS-232. All 9-pins are perfectly reproduced from one end to the other.
Specifications
- RS-232 Input Connector:
DB-9 female
RS-232 Output Connector:
DB-9 male
Link Connector:
RJ-45 Shielded
Conforms to the full 9-pin RS-232 standard
Maximum data transfer rate:
115,200 baud
Operating temperature range:
+5 to +45 deg. Celsius
Operating humidity range:
5 to 65% RHL, non-condensing
Storage temperature range:
-20 to +70 deg. Celsius
Storage humidity range:
5 to 95% RHL, non-condensing
Power Supply:
5V DC
Power Consumption:
5W (max)
Dimensions:
3.8" W x 1.2" H x 1.4" D
Shipping Weight:
2 lbs.
In The Box
| RS232 Extender (Sender Unit) (EXT-RS232S) | 1 |
| RS232 Extender (Receiver Unit) (EXT-RS232R) | 1 |
| 6 ft. DB-9 Cable (CAB-DB9-6MF) | 1 |
| 5V DC Power Supply (EXT-PS526AIPN or EXT-PS526AIPN -6) | 1 |
| Quick-Start Guide (QSG-RS232) | 1 |
