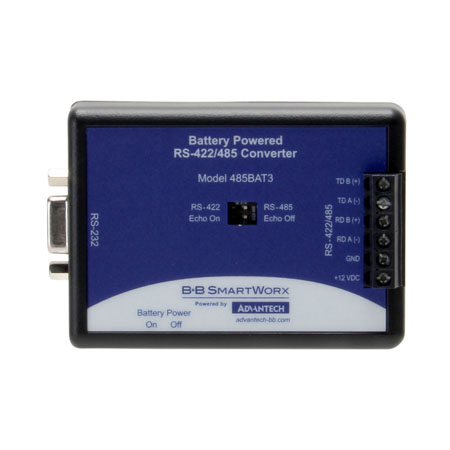

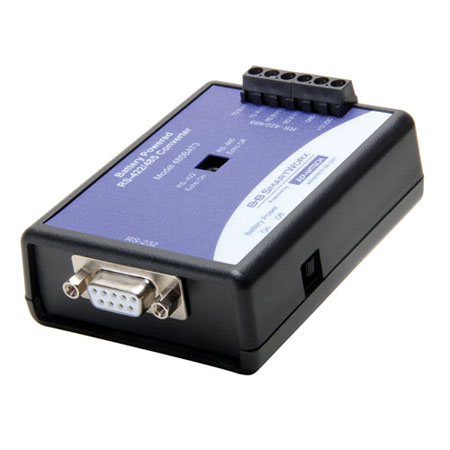

Advantech BB-485BAT3
RS-232 to RS-485 Serial Converter - Battery Power Option
- 3 Powering Options: Battery (2-AAA), RS-232 handshake lines, or external power supply
- Extend RS-232 data signals up to 1.2 km (4,000 ft.)
- Change RS-232 TD and RD to RS-485 signals
- Automatic Send Data Control - no software drivers necessary
- Baud rates up to 115.2 kbps
Three Versatile Powering Options Model 485BAT3 features power versatility, making it perfect for field testing solutions. It can be powered in three ways: batteries, port powered, or external power supply.
Use the battery power option with a low power RS-232 port (found on many laptops) or no handshake lines or when it is inconvenient to use a power supply. Model 485BAT3 will draw as much power as possible from the RS232 port and get any additional current necessary from the batteries.
If you have a full power-port and all your handshake lines, turn off the battery switch. This allows you to run full port-powering and saves the batteries for emergencies. Note: The battery On/Off switch conserves battery life. It does not turn on and off all power to the unit.
Lastly, a stripped and tinned +12VDC external power supply may be used. Simply attach it to the terminal blocks and plug it in.
Model 485BAT3 converts unbalanced RS-232 signals to balanced RS-422 or RS-485 signals. RS-485 is an enhanced version of the RS-422 standard, allowing multiple drivers and receivers on a 2-wire system.
Use the battery power option with a low power RS-232 port (found on many laptops) or no handshake lines or when it is inconvenient to use a power supply. Model 485BAT3 will draw as much power as possible from the RS232 port and get any additional current necessary from the batteries.
If you have a full power-port and all your handshake lines, turn off the battery switch. This allows you to run full port-powering and saves the batteries for emergencies. Note: The battery On/Off switch conserves battery life. It does not turn on and off all power to the unit.
Lastly, a stripped and tinned +12VDC external power supply may be used. Simply attach it to the terminal blocks and plug it in.
Model 485BAT3 converts unbalanced RS-232 signals to balanced RS-422 or RS-485 signals. RS-485 is an enhanced version of the RS-422 standard, allowing multiple drivers and receivers on a 2-wire system.
SPECIFICATIONS
SERIAL TECHNOLOGY | |
Data Rate | 115.2 kbps maximum |
RS-232 | |
Connector | DB9 Female (DCE) |
Signals Port Power * | RD, TD, GND, DCD, DTR, DSR, RTS, CTS Pins 7 (RTS) and 8 (CTS) are tied together, and pins 6 (DSR), 1 (CD), and 4 (DTR) are also tied together. |
RS-422/485 | |
Connector | Terminal Block |
Signals | TDA (-), TDB (+), RDA (-), RDB (+), GND |
Operation | Dipswitch selectable RS-422 or RS-485. RS-485, 2 or 4-wire. RS-422, 4-wire. |
Biasing Resistors | 4.7k Ohms |
Termination | None |
POWER | |
Power Source - 3 options | (2) AAA batteries (not included). Port-powered from RS-232 handshake lines.* External 12-16 VDC power supply, optional. * NOTE: Port-powering requires 7 to 12 VDC supplied on at least one handshake line. |
Power Connector | Terminal Block |
Input Voltage | 12 VDC @ 100 mA |
Battery Life | 7 hours fully loaded with no port power available. 100 to 250 hours, typical |
MECHANICAL | |
Dimensions | 9.0 x 6.5 x 2.8 cm (3.6 x 2.6 x 1.1 in) |
Enclosure | Plastic, ABS Inline |
Weight | 0.23 lbs. (104.3 g) |
MEANTIME BEFORE FAILURE (MTBF) | |
MTBF | 241370 hours |
MTBF Calc. Method | MIL 217F Parts Count Reliability Prediction |
ENVIRONMENTAL | |
Operating Temperature | 0 to +70 °C (+32 to +158 °F) |
Storage Temperature | -40 to +85 °C (-40 to +185 °F) |
Operating Humidity | 0 to 95% non-condensing |
APPROVALS / CERTIFICATIONS | |
FCC Part 15, CISPR, EN 55022 + AC Class A Emissions | |
CE | |
EN 61000-6-1 | Generic Standards for Residential, Commercial and Light-Industrial Environments |
EN 61000-4-2 | Electro-Static Discharge (ESD) |
EN 61000-4-3 +A1 +A2 +IS1 | Radiated Field Immunity (RFI) |
EN 61000-4-4 | Electrical Fast Transients-Burst Immunity (EFT) |
EN 61000-4-6 | Conducted Immunity |
