Siemens SIMATIC IPC477E PRO

The fully enclosed IP65-protected SIMATIC IPC477E PRO in 15", 19" and 22" versions extends the portfolio of PRO devices.

Siemens SIMATIC IPC477E PRO
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Direct mounting on the machine – without control cabinet
  • Enhancement of the machine by the modern, slim design
  • Compact design ideal for applications with little space available
  • Excellent industrial compatibility due to rugged construction, even when subjected to extreme vibration and shock
  • Intuitive operation and more space for visualization due to widescreen format, and greater resistance to corrosive cleaning agents and scratches thanks to capacitive multitouch glass front
  • Maintenance-free due to lack of rotating components (fan and hard disk)
  • The different mounting options offer complete flexibility when choosing make and model of the support arm
  • Standard connecting cables can be used for easy commissioning and maintenance
  • High degree of investment protection thanks to assured availability of spare parts for a period of 5 years following the end of active marketing
  • Excellent continuity of components for machine concepts with a long service life without any new engineering costs
  • Savings in time and costs due to service-friendly equipment construction
  • Minimization of downtimes thanks to high system availability
  • Efficient self-diagnostics (DiagBase and SIMATIC IPC DiagMonitor)
  • High reliability and security of an embedded platform
  • Integral component of Totally Integrated Automation (TIA):
  • Enhanced productivity, minimization of engineering costs, reduction of lifecycle costs

Using our "Build-to-Order Service (BTOS)", all of our industrial computers can be adapted to your individual needs.

The devices will be equipped with memory, storage, operating system and PCI expansion according to your specifications.

Assembly and full testing is included and full warranty applies for all items provided.

Please contact us for individual advice.

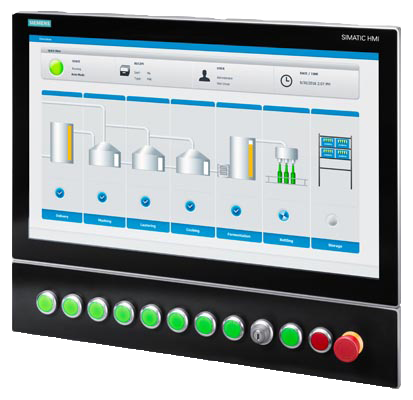

The fully enclosed IP65-protected SIMATIC IPC477E PRO in 15", 19" and 22" versions extends the portfolio of PRO devices.

The robust aluminum housing allows it to be used directly on the machine even in harsh environmental conditions.
The operating unit can either be mounted on a pedestal or connected to a support arm system from above.

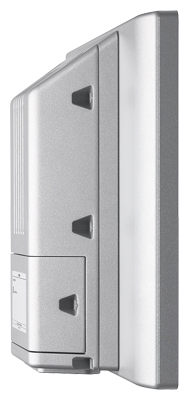

The rugged aluminum enclosure of the SIMATIC IPC477E PRO (PRO = Protected) makes it possible to use the panel directly on the machine, even under harsh ambient conditions.

The Panel PC has a crystal clear, scratch-resistant and continuous glass front with high chemical resistance. Special features are industry-compliant antireflective coating as well as high image sharpness and brightness for good readability even with a large viewing angle.

The projected capacitive touch (PCT) technology makes for efficient gesture and single-finger operation even with thin work gloves. Screen contents can, for example, be intuitively and quickly moved, zoomed, or supplemented by hidden components.


The SIMATIC IPC477E PRO in 15“, 19" and 22" is …


  • valuable
    Engineering with TIA Portal
    Easy transition from a predecessor to a new device with migration or due to the wide-ranging catalog of HMI devices
    "Ready to work": Fast commissioning and cost savings, no additional enclosures, standard plugs, USB interface installed externally, service door, space-saving design, low installation overhead


  • configurable

    Flexible operating location due to variety of mounting options: outside the enclosure on a support arm or pedestal of reputable manufacturers
    Easy connection and wiring minimized through communication with PROFINET and PROFIsafe
    Individually upgraded by extension units, freedom in the configuration with respect to number and type, variety of operator controls, easy conversion and replacement in case of damage as well as retrofitting of keys


  • reliable

    Long-term availability
    High operating safety thanks to PROFIsafe, two-hand operation and palm detection
    All-round IP65-protected – protection against water and dust


  • and always perfectly styled

    Modern product design with sleek housing (low mounting depth), glass front including operator controls and a slim frame
    Easy to use with gestures, single and multi-touch operation even thin work gloves
    Customization by selecting your own designs or styles



Application

The SIMATIC IPC477E is designed for use directly on the machine in tough environmental conditions, where the combination of ruggedness and maximum reliability is a major priority (the reliability of an embedded platform) and the openness of a PC is also required (e.g. connection of I/O devices such as printers, keyboards, etc.).

The compact and versatile SIMATIC IPC477E PRO operator panels can be integrated perfectly into many machines or production and automation systems. Thanks to the low-profile design, it can also be used in confined spaces.

The PC is used in both factory and process automation, as support-arm or pedestal-mounted versions.

The SIMATIC IPC477E PRO is the ideal platform for PC-based Automation:
  • PC-based visualization on-site at the machine with SIMATIC WinCC Advanced or WinCC Professional
  • PC-based Control with SIMATIC Software Controllers
  • SIMATIC WinCC Client (standard or multi client) for distributed operator control and monitoring
  • SIMATIC WinCC as single-user station solution for centralized operator control and monitoring (also in combination with WinCC WebNavigator server)



 Design



The new SIMATIC IPC477E PRO is a compact device with a high-quality aluminum housing.

Basic design

  • Rugged aluminum enclosure, resistant to vibration and shock, with high electromagnetic compatibility
  • Graphics onboard for additional monitor/flat panel (DVI and DisplayPort):
    - DisplayPort resolution: up to 1 920 x 1 200 / true color / 60 to 120 Hz
    - DVI-I resolution: up to 1 920 x 1 200 pixels / true color
  • Interfaces:
    - 3 x LAN 10/100/1000 Mbps Ethernet interface (RJ45)
    - 4 x high-speed USB V3.0
    - 1 x COM1 (RS232)
  • Isolated power supply: 24 V DC (19.2 to 28.8 V)


Computer unit design versions

  • Processor:
    - Celeron G3902E; 3x Gigabit Ethernet (IE/PN)
    - Core i3-6102E; 3x Gigabit Ethernet (IE/PN)
    - Core i5-6442EQ; 3x Gigabit Ethernet (IE/PN)
    - XEON E3-1505L; 3x Gigabit Ethernet (IE/PN)
  • Main memory configuration from 4 GB (8/16 GB optional), DDR3 SDRAM
  • Field bus
    - PROFINET onboard, 3 x RJ45
  • Drives:
    - 240 GB or 480 GB solid-state drive, rugged alternative to hard disk
    - FlashDrive (replaceable, accessible): 2 GB, 4 GB, 8 GB, 16 GB or 30 GB
  • Preinstalled operating systems:
    - Windows 7 Ultimate MUI
    - Windows Embedded Standard 7
    - Windows 10 IoT Enterprise 2016 LTSB (64-bit)


Components of the operator control unit:

The operator control units are available in the following versions:

  • 15" multi-touch (1 366 x 768)
    - Prepared for support arm without extension components (flange on top)
    - Prepared for pedestal/extension components (flange below)
    - Prepared for support arm and extension components (round tube connection)

  • 19" multi-touch (1 366 x 768)

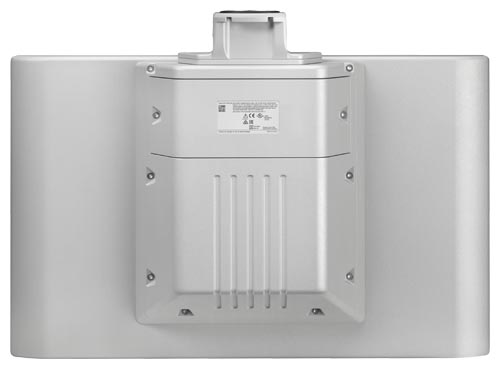

    - Prepared for support arm without extension components (flange on top)

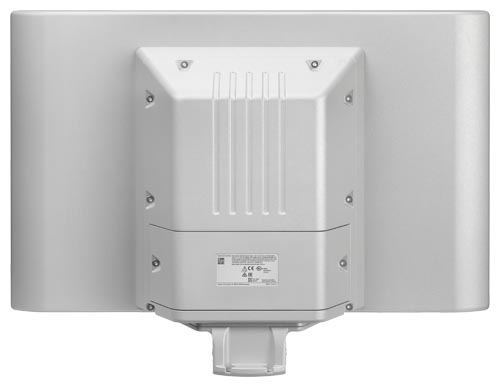

    - Prepared for pedestal/extension components (flange below)

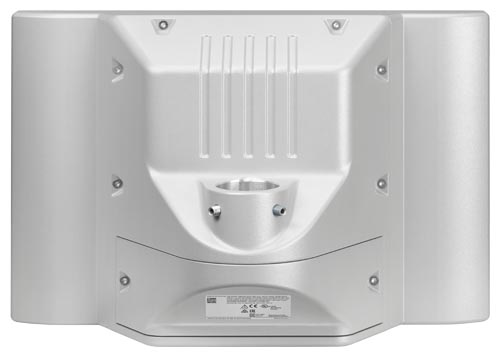

    - Prepared for support arm and extension components (round tube connection)

  • 22" multi-touch (1 920 x 1 080)
    - Prepared for support arm without extension components (flange on top)
    - Prepared for pedestal/extension components (flange below)
    - Prepared for support arm and extension components (round tube connection)



SIMATIC IPC DiagMonitor

  • PC diagnostics/alarm software for early detection and diagnosis of PC problems
  • Comprehensive monitoring of temperature, watchdog
  • Operating hours counter for preventive maintenance
  • Integrated protocol function, extensive text messages, online help (German/English), network-wide monitoring via SNMP and OPC interface possible


Function

Diagnostics
  • DiagBase: Integrated, parameterizable monitoring functions (program flowchart/watchdog, internal enclosure temperature, DIAG bit for CFast cards similar to S.M.A.R.T for hard disks)
  • Expanded diagnostics/messages via Ethernet, email, text message and for direct transfer to SIMATIC software via OPC (optionally via SIMATIC IPC DiagMonitor)


Integration

Integrated interfaces:
  • Ethernet
    The integrated PROFINET interfaces (10/100/1000 Mbps) can be used for IT communication and for data exchange with PLCs such as SIMATIC S7 (with "SOFTNET S7" software packages).

  • Other interfaces
    4 USB (Universal Serial Bus) interfaces and one serial interface are available for connecting additional I/O devices.


ProdGrafik

Technical specifications



Installation type/mountingnstallation type/mounting
maximum permissible installation angle +/- ±45 °
Supply voltage
Type of supply voltage 24 V DC
Processor
Processor type Celeron G3902 (2C/2T, 1.6 GHz, 2 MB Cache);
Core i3-6102E (2C/4T, 1.9 GHz, 3 MB Cache);
Core i5-6442EQ (4C/4T, 1.9 (2.7) GHz, 6 MB Cache, iAMT);
Xeon E3-1505L v5 (4C/8T, 2.0 (2.8) GHz, 8 MB Cache, iAMT)
Graphic
Graphics controller Intel HD graphics controller
Drives
Optical drives possible as external drive via USB
Diskette drive No
SSD Yes; 1x 80 GB, 1x 240 GB SSD, 1x 480 GB SSD
Memory
Main memory 4 GB to 16 GB, ECC optional
Capacity of main memory, max. 16 Gbyte
Hardware configuration
Slots
  • Number of PCI slots
0; Different to the built-in unit
  • Number of compact flash slots
1
Interfaces
Number of industrial Ethernet interfaces 3x Ethernet (RJ45)
Number of PROFINET interfaces 1
USB port 4x USB 3.0 onboard (rear)
Connection for keyboard/mouse USB / USB
serial interface Without / 2x COM (RS 232 / 422 / 485), selectable in the BIOS
Video interfaces
  • Graphics interface
2x DisplayPort
Industrial Ethernet>
  • Industrial Ethernet interface
3x Ethernet (RJ45)
    — 100 Mbps
Yes
    — 1000 Mbps
Yes
Integrated Functions
Monitoring functions
  • Temperature monitoring
Yes
  • Watchdog
Yes
Degree and class of protection
IP65 (all-round) Yes; IP65 fully enclosed
Standards, approvals, certificates
Approval CE, cULus (508)
CE mark Yes
UL approval Yes
  • UL 508
Yes
cULus Yes
KC approval Yes
EAC (formerly Gost-R) No
EMC CE, EN 61000-6-4; CISPR 22 Class A; FCC Class A
Ambient conditions
Ambient temperature during operation
  • Ambient temperature during operation
5 to +45°C
  • min.
5 °C
  • max.
45 °C
Ambient temperature during storage/transportation
  • min.
-20 °C
  • max.
60 °C
Relative humidity
  • Relative humidity
Tested according to IEC 60068-2-78, IEC 60068-2-30: Operation: 5 % to 85 % at 30 °C (no condensation), storage / transport: 5 % to 95 % at 25 / 55 °C (no condensation)
Vibrations
  • Vibration resistance during operation acc. to IEC 60068-2-6
Tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g)
Shock testing
  • Shock load during operation
Tested according to IEC 60068-2-27, IEC 60068-2-29: half-sine: 50 m/s² (5 g), 30 ms, 100 shocks per axis
Operating systems
Operating system Windows 7 Ultimate (Multi-Language) 64-bit, Windows Embedded Standard 7 E/P 32-bit / 64-bit, Windows 10
pre-installed operating system Yes
Additional info on operating system Multi-Language: GER, ENG, ITAL, FR, SP, KOR, CHN (Traditional), CHN (Simplified), JPN - not with XPe
without operating system Yes; Optional
pre-installed operating system
  • Windows 7
Ultimate 64 bit
  • Windows 10 IoT Enterprise
Windows 10 IoT Enterprise LTSB 2016 (64-bit) MUI
Other
Warranty period 36 mo; Warranty period



  Available Modules
  6AV7251-.B...-....  SIMATIC IPC477E PRO fully enclosed IP65;
15" Multitouch (1366 X 768); suitable for support arm w/o extension components (flange at top); 4USB (back); w/o USB (front); Ethernet (10/100/1000);
  6AV7251-.C...-....   SIMATIC IPC477E PRO fully enclosed IP65;
15" Multitouch (1366 X 768); suitable for pedestal/ extension components (flange at bottom); 4USB (back); w/o USB (front); Ethernet (10/100/1000);
 6AV7251-.D...-....  SIMATIC IPC477E PRO fully enclosed IP65;
15" Multitouch (1366 x 768); suitable for support arm and extension components (round tube); 4USB (back); w/o USB (front); Ethernet (10/100/1000);
  6AV7251-.E...-....  SIMATIC IPC477E PRO fully enclosed IP65;
19" Multitouch (1366 X 768); suitable for support arm w/o extension components (flange at top); 4USB (back); w/o USB (front); Ethernet (10/100/1000);
 6AV7251-.F...-....   SIMATIC IPC477E PRO fully enclosed IP65;
19" Multitouch (1366 X 768); suitable for pedestal/ extension components (flange at bottom); 4USB (back); w/o USB (front); Ethernet (10/100/1000);
  6AV7251-.G...-....  SIMATIC IPC477E PRO fully enclosed IP65;
19" Multitouch (1366 x 768); suitable for support arm and extension components (round tube); 4USB (back); w/o USB (front); Ethernet (10/100/1000);
  6AV7251-.H...-....  SIMATIC IPC477E PRO fully enclosed IP65;
22" Multitouch (1920 X 1080); suitable for support arm w/o extension components (flange at top); 4USB (back); w/o USB (front); Ethernet (10/100/1000);
  6AV7251-.J...-....   SIMATIC IPC477E PRO fully enclosed IP65;
22" Multitouch (1920 X 1080); suitable for pedestal/ extension components (flange at bottom); 4USB (back); w/o USB (front); Ethernet (10/100/1000);
  6AV7251-.K...-....   SIMATIC IPC477E PRO fully enclosed IP65;
22" Multitouch (1920 X 1080); suitable for support arm and extension components (round tube); 4USB (back); w/o USB (front); Ethernet (10/100/1000);
