Siemens SIMATIC IPC827D

High performance and high expansion capability – with the latest generation of Intel® processors (Xeon, Core i3 and Celeron)

Siemens SIMATIC IPC827D
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF

Using our "Build-to-Order Service (BTOS)", all of our industrial computers can be adapted to your individual needs.

The devices will be equipped with memory, storage, operating system and PCI expansion according to your specifications.

Assembly and full testing is included and full warranty applies for all items provided.

Please contact us for individual advice.




The Box PC SIMATIC IPC827D is a rugged and flexibly expandable control cabinet PC for machine-level use in 24-hour continuous operation at ambient temperatures of up to 55 °C.

Flexible scaling and expansion thanks to five slots:

  • 3 x PCI
  • 1 x PCIe x16
  • 1 x PCIe x4


For configuring low-maintenance systems without a harddisk, the IPC827D can be equipped with a solid-state drive with 240 GB (SATA). Higher requirements regarding data availability can be realized with a RAID1 system.


Application

The SIMATIC IPC827D provides mechanical engineers, plant engineers, and control cabinet makers with a high-performance, compact PC platform for use at the machine or in an industrial environment for:
  • Measuring, testing, open-loop and closed-loop control of process and machine data (e.g. filling plants, packaging machines, machines for the semiconductor industry, CD/DVD production machines)
  • Operating and visualization tasks with separate display/monitor solutions (e.g. information terminals, large-scale displays in automotive production)
  • Data acquisition and processing (e.g. wind-driven power stations, energy management, test systems)


The SIMATIC IPC827D carries the CE certification mark for use in the industrial sector as well as in residential, business and commercial areas. In addition to industrial applications, it can also be used in building services automation or in facilities open to the public.



Benefits

    Maximum system performance for complex measuring, control and visualization tasks

    • Intel processors: Xeon, Core i3 or Celeron; in each case with 2 cores, with turbo-boost technology and AMT (Xeon) and hyper-threading (Xeon, i3)
    • Intel DH82C226 PCH Platform Controller Hub (PCH)
    • DDR3 1600 memory technology up to 16 GB RAM
    • Intel HD 4600 (Xeon, i3) graphics for high graphics performance
    • PCI Express x16 slot for x16 graphics card support
    • SATA hard disks with up to 500 GB capacity and NCQ technology (Native Command Queuing) for a larger data volume


    High flexibility and expandability

    • Flexible installation in many different positions with mounting brackets or portrait assembly kit
    • Vacant expansion slots: 3 x PCI, 1 x PCIe Express (x16) and 1 x PCIe (x4)
    • 3 x PROFINET interfaces onboard (optional, IRT-capable, 3-port, switching-enabled, CP1616-compatible)
    • 1 x PROFIBUS interface onboard (optional, CP5622-compatible)
    • RAID1 controller onboard (no occupation of a PC slot)
    • 2 x LAN 10/100/1000 Mbit/s connections (Gigabit Ethernet with teaming capability), PROFINET RT-compatible
    • 4 x USB-3.0 ports (SuperSpeed)
    • DisplayPort and DVI-I interface (for VGA and/or DVI-D monitors)


    Rugged design for direct installation in the machine

    • Maximum processor performance up to an ambient temperature of 55 °C
    • High shock/vibration resistance in all possible mounting positions
    • High EMC for safe operation
    • SATA Solid-State Drive (SSD) with 240 GB for high reliability and speed
    • Strain relief for all cables/connectors


    High system availability, fast startup, maintenance and servicing

    • High degree of data security thanks to mirror disk system (RAID1, optional) or Solid State Drive (SSD, optional)
    • ECC memory (optional, for 1-bit error correction)
    • 2 MB battery-backed SRAM, of which 128 KB can be used as memory for retentive WinAC RTX data
    • Remote control and maintenance through iAMT (Intel® Active Management Technology) for Xeon versions (remote access to the device, even in shut-down state)
    • Externally accessible CMOS backup battery, replaceable during operation, status can be scanned by software
    • 4 LEDs – 1 x for power and 3 x for applications
    • Operating system preinstalled, ready to run, and already activated (eliminates need for usual product activation via the Internet or by telephone)
    • Following system failure, fast restoration of hard disk contents to factory status using supplied recovery and restore DVD
    • Worldwide service and support


    Cost reductions through high investment security

    • Long-term platform with Intel embedded components
    • Availability of 3 to 6 years, then guaranteed availability of spare parts for further 5 years

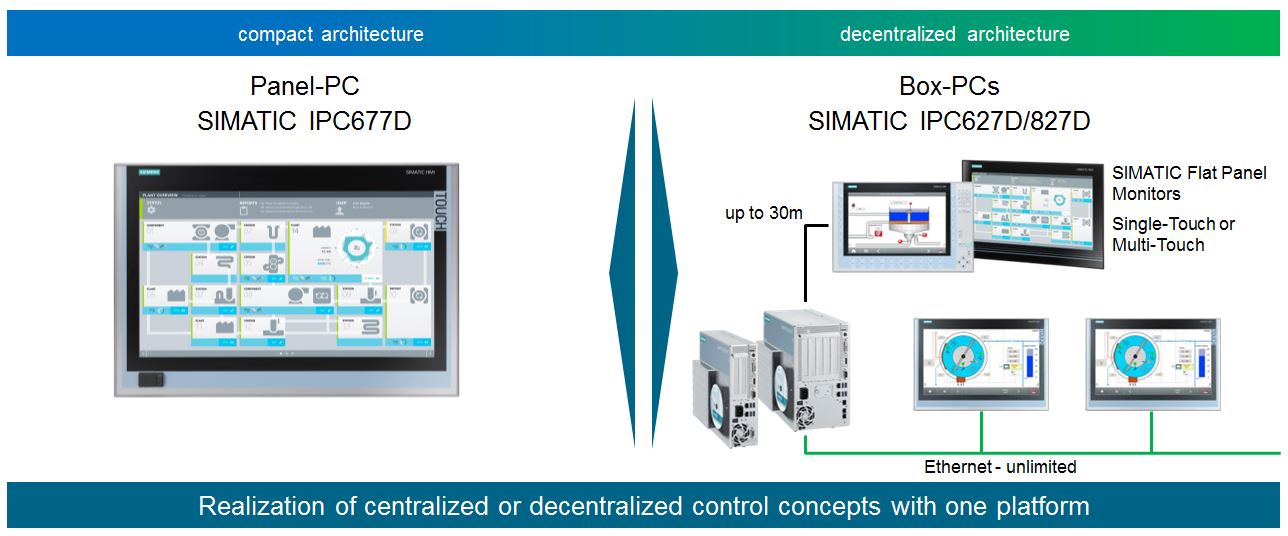

    • Part of the scalable Box PC range with identical performance features and footprint
    • System-tested with SIMATIC hardware and software
    • Certification for worldwide marketing (e.g.: cULus)
    • Installation compatible for all device generations, software compatible with predecessor model


ProdGrafik

Artikelnummer Description
6AG4132-2AA10-0XX0 SIMATIC IPC827D (Box PC) HD Grafik onboard, 2x Gigabit Ethernet (IE/PN) 4xUSB V3.0; 1x seriell (COM 1); RAID-Controller on Board; Watchdog, Temp.-/Fan-Monotoring




Installation type/mounting
Mounting Wall mounting, portrait mounting
Design Box PC, built-in unit
Supply voltage
Type of supply voltage 100/240 V AC (autorange); 24 V DC
Line frequency
  • Rated value 50 Hz
Yes
  • Rated value 60 Hz
Yes
Mains buffering
  • Mains/voltage failure stored energy time
20 ms
Processor
Processor type Celeron G1820TE (2C/2T, 2.2 GHz, 2 MB Cache); Core i3-4330TE (2C/4T, 2.4 GHz, 4 MB Cache); Xeon E3-1268L v3 (4C/8T, 2.3 (3.3) GHz, 8 MB Cache, AMT)
Chipset Intel DH82C226 PCH
Graphic
Graphics controller Intel HD graphics controller P4600 GT2 (Xeon, Core i3); Intel HD graphics controller (Celeron)
Drives
Optical drives DVDRRW combi-drive, optional
Hard disk 3.5" SATA >= 250 GB, optional >= 500 GB; RAID1 2x 2.5" SATA >= 320 GB; all internal drives are vibration-damped
SSD Yes >= 240 GB optional
Memory
Type of memory DDR3 1600 DIMM
Main memory 2 / 4 / 8 / 16 GB; ECC optional
  • Capacity of main memory, max.
16 Gbyte
Data areas and their retentivity
Retentive data area (incl. timers, counters, flags), max. 2 Mbyte; 128 KB can be stored in the buffer time; optional
Hardware configuration
Slots
  • free slots
3x PCI, 1x PCIe (x4), 1x PCIe (x16); with card retainer
  • Number of PCI slots
3
  • Number of PCI slots
2
Interfaces
PROFIBUS/MPI Optionally onboard, isolated, max. 12 Mbit/s, compatible with CP 5622
USB port 4x USB 3.0
Connection for keyboard/mouse USB / USB
serial interface 1x COM1 (RS 232), optional: 1x COM2 (RS 232)
parallel interface optional LPT1
Video interfaces
  • Graphics interface
1x DisplayPort and 1x DVI-I; 1x VGA via adapter cable (optional)
Industrial Ethernet
  • Industrial Ethernet interface
Onboard, 2x 10 / 100 / 1000 Mbit, RJ45
    100 Mbps
Yes
    1000 Mbps
Yes
Interrupts/diagnostics/status information
Bus diagnostics Yes
Integrated Functions
Monitoring functions
  • Temperature monitoring
Yes
  • Watchdog
Yes
  • Status LEDs
Yes
  • Fan
Yes
  • Monitoring function via network
Optional
EMC
Interference immunity against discharge of static electricity
  • Interference immunity against discharge of static electricity
6 kV contact discharge acc. to IEC 61000-4-2; 8 kV air discharge acc. to IEC 61000-4-2
Interference immunity against high-frequency electromagnetic fields
  • Interference immunity against high frequency radiation
10 V/m for 80 - 1000 MHz and 1.4 - 2 GHz, 80% AM acc. to IEC 61000-4-3; 3 V/m for 2 - 2.7 GHz, 80% AM acc. to IEC 61000-4-3; 10 V for 10 kHz - 80 MHz, 80% AM acc. to IEC 61000-4-6
Interference immunity to cable-borne interference
  • Interference immunity on supply cables
2 kV acc. to IEC 61000-4-4, burst; 1 kV acc. to IEC 61000-4-5, surge symmetric; 2 kV acc. to IEC 61000-4-5, surge asymmetric
  • Interference immunity on signal cables >30m
2 kV acc. to IEC 61000-4-5, surge, length > 30 m
  • Interference immunity on signal cables < 30m
1 kV acc. to IEC 61000-4-4; burst; length < 3 m; 2 kV acc. to IEC 61000-4-4; burst; length > 3 m
Interference immunity against voltage surge
  • asymmetric interference
2 kV acc. to IEC 61000-4-5, surge asymmetric
  • symmetric interference
1 kV acc. to IEC 61000-4-5, surge symmetric
Interference immunity to magnetic fields
  • Interference immunity to magnetic fields at 50 Hz
100 A/m; to IEC 61000-4-8
Emission of conducted and non-conducted interference
  • Interference emission via line/AC current cables
EN 61000-6-3, EN 61000-6-4, CISPR 22 Class B, FCC Class A
Degree and class of protection
IP (at the front) IP20
IP (rear) IP20
Standards, approvals, certificates
CE mark Yes
UL approval Yes
  • UL 508
Yes
cULus Yes
RCM (formerly C-TICK) Yes
KC approval Yes
FCC Yes
EMC CE, EN 61000-6-3:2007 +A1:2011, EN 61000-6-2:2005
  • EN 61000-6-2
Yes
Marine approval
  • Germanischer Lloyd (GL)
Yes
  • American Bureau of Shipping (ABS)
Yes
  • Bureau Veritas (BV)
Yes
  • Det Norske Veritas (DNV)
Yes
  • Lloyds Register of Shipping (LRS)
Yes
  • Nippon Kaiji Kyokai (Class NK)
Yes
Ambient conditions
Ambient temperature during operation
  • Ambient temperature during operation
+5 °C up to 55 °C
  • min.
5 °C
  • max.
55 °C
Ambient temperature during storage/transportation
  • min.
-20 °C
  • max.
60 °C
Relative humidity
  • Relative humidity
Tested according to IEC 60068-2-78, IEC 60068-2-30: Operation: 5% to 80% at 25 °C (no condensation), Storage: 5% to 95% at 25 °C (no condensation)
Vibrations
  • Vibration load in operation
Tested according to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm; 58 Hz to 500 Hz 9.8 m/s (1g)
Shock testing
  • Shock load during operation
Tested to DIN IEC 60068-2-29: 50 m/s (5 g), 30 ms, 100 shocks
Operating systems
Operating system Windows 7 Ultimate 32-bit/64-bit, MUI; Windows 10 IoT Enterprise LTSB 2015, 64-bit, MUI; Windows Embedded Standard 7 P, 32-bit, MUI
pre-installed operating system Yes
without operating system Yes
pre-installed operating system
  • Windows 7
Yes; Professional 32 bits or 64 bits; Ultimate 32 bits or 64 bits
  • Windows 10 IoT Enterprise
Yes; LTSB 2015, 64-bit, MUI
  • Other O/S
optional available
Software
SIMATIC Software Optional package with SIMATIC WinCC or WinAC RTX
Dimensions
Width 312 mm
Height 155 mm; With DVD drive: 179 mm
Depth 301 mm; incl. mounting rail
