Siemens SIMATIC IPC227E
The Nanobox PC with optimized performance in a compact design - maintenance-free and robust
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
beskrivelse
yderligere information
PDF
Using our "Build-to-Order Service (BTOS)", all of our industrial computers can be adapted to your individual needs.
The devices will be equipped with memory, storage, operating system and PCI expansion according to your specifications.
Assembly and full testing is included and full warranty applies for all items provided.
Please contact us for individual advice.
The Nanobox PC SIMATIC IPC227E is an extremely compact and flexible embedded industry PC. With its sealed metal enclosure, the IPC227E provides the highest industry functionality for flexible deployment in harsh conditions – and all this maintenance-free.
Modern interfaces and the possibility for expansion via a PCIe slot allows this Box PC to be easily integrated into the automation system. The power-saving Intel dual and quad core processors provide the best performance in an ultra-compact design.
SIMATIC IPC227E at a glance
- Small footprint and mounting flexibility
- Maximum compactness with approx. 1 liter enclosure volume or more with integrated industrial power supply for minimum space requirements in the control cabinet
- High flexibility with three mounting options, flexible mounting positions and interfaces on one side suitable for every installation situation
- Maximum industrial functionality due to sealed enclosure for optimum dust protection and high electromagnetic compatibility
- Backup of important system data with non-volatile retentive memory (NVRAM, optional)
- Designed for 24/7 continuous operation at up to 60°C ambient temperature and high vibration/shock requirements
- Maintenance-free operation – no fan, no moving parts
- Battery-free operation possible (with time-of-day synchronization over network)
- High-performance and energy-efficient dual-core and quad-core Intel Celeron processors

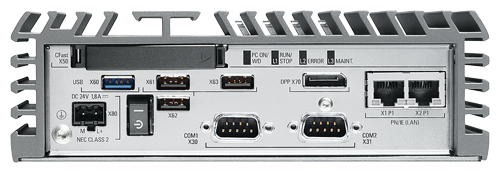

- A variety of interfaces and configuration options (USB 3.0, 2 x Gbit Ethernet, RS232/RS485/RS422, SSD/CFast/HDD)
- Optimized for headless operation with LED for efficient self-diagnostics
- Easy expansion with optional PCIe slot
- Long-term availability: Service & support period up to 11 years
- Ideal platform for SIMATIC software controller and/or WinCC RT Advanced
- Easy integration into automation solutions using the TIA Portal and onboard PROFINET interfaces
Rugged design for maintenance-free, continuous operation
Optimized performance and the latest interfaces
High investment security for reducing engineering costs
Versatile deployment
The Nanobox PC can be versatility deployed, for example for:
- Control, visualization and communication tasks, for example, in mechanical engineering, transportation systems or power transmission
- Acquisition of data, further processing, and visualization as data gateway or for data monitoring
- Machine-level applications that require additional C/C++ programs
- Additional applications, for example, shipbuilding, building automation, warehousing & logistics
The SIMATIC IPC227E can be operated both in the industrial sector as well as in residential, business and commercial environments.
| Artikelnummer | Description |
| 6ES7647-8BA11-0AA1 | SIMATIC IPC227E (NANOBOX PC); 1 X DISPLAY-PORT GRAPHIC; 2 X 10/100/1000 MBIT/S ETHERNET RJ45; 1 X USB3.0, 3X USB2.0; CFAST-SLOT; 24V DC INDUSTRIAL POWER SUPPLY |
| Installation type/mounting | |
| Mounting | DIN rail, wall mounting, portrait mounting |
| Design | Box PC, built-in unit |
| Supply voltage | |
| Type of supply voltage | 24 V DC |
| Mains buffering | |
| 20 ms |
| Processor | |
| Processor type | Intel Celeron N2807 / N2930 |
| Drives | |
| Hard disk | 2.5" SATA ≥ 320 GB |
| SSD | Yes; ≥ 80 GB optional |
| Memory | |
| Type of memory | DDR3L |
| Main memory | 2 / 4 / 8 GB |
| 8 Gbyte |
| Data areas and their retentivity | |
| Retentive data area (incl. timers, counters, flags), max. | 512 kbyte; 128 KB can be stored in the buffer time; optional |
| Hardware configuration | |
| Slots | |
| 1x PCIe x1 (optional) |
| 1; Optional |
| 1; CFast |
| Interfaces | |
| USB port | 1x USB 3.0 / 3x USB 2.0 |
| Connection for keyboard/mouse | USB / USB |
| serial interface | Without / 2x COM (RS 232 / 422 / 485), selectable in the BIOS |
| Video interfaces | |
| 1x DisplayPort |
| Industrial Ethernet | |
| Onboard, 2x 10 / 100 / 1000 Mbit, RJ45 |
| Yes |
| Yes |
| Integrated Functions | |
| Monitoring functions | |
| Yes |
| Yes |
| Yes |
| No |
| Optional |
| EMC | |
| Interference immunity against discharge of static electricity | |
| ±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
| Interference immunity against high-frequency electromagnetic fields | |
| 10 V/m for 80 - 1000 MHz and 1.4 - 2 GHz, 80% AM acc. to IEC 61000-4-3; 3 V/m for 2 - 2.7 GHz, 80% AM acc. to IEC 61000-4-3; 10 V for 10 kHz - 80 MHz, 80% AM acc. to IEC 61000-4-6 |
| Interference immunity to cable-borne interference | |
| ±2 kV acc. to IEC 61000-4-4, burst; ±1 kV acc. to IEC 61000-4-5, surge symmetric; ±2 kV acc. to IEC 61000-4-5, surge asymmetric |
| ±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
| ±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
| Interference immunity against voltage surge | |
| ±2 kV acc. to IEC 61000-4-5, surge asymmetric |
| ±1 kV acc. to IEC 61000-4-5, surge symmetric |
| Interference immunity to magnetic fields | |
| 100 A/m; to IEC 61000-4-8 |
| Emission of conducted and non-conducted interference | |
| EN 61000-6-3, EN 61000-6-4, CISPR 22 Class B, FCC Class A |
| Degree and class of protection | |
| IP (at the front) | IP40 |
| IP (rear) | IP40 |
| Standards, approvals, certificates | |
| CE mark | Yes |
| UL approval | Yes |
| Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| FCC | Yes |
| EMC | CE, EN 61000-6-4:2007, EN 61000-6-2:2005 |
| Yes |
| Dust protection | Protection against foreign bodies > 1 mm |
| Marine approval | |
| Yes |
| Yes |
| Yes |
| Yes |
| Yes |
| Yes |
| Ambient conditions | |
| Ambient temperature during operation | |
| 0 °C up to 60 °C |
| 0 °C |
| 60 °C |
| Ambient temperature during storage/transportation | |
| -20 °C |
| 60 °C |
| Relative humidity | |
| Tested according to IEC 60068-2-78, IEC 60068-2-30: Operation: 5% to 80% at 25 °C (no condensation), Storage: 5% to 95% at 25 °C (no condensation) |
| Vibrations | |
| Tested to DIN IEC 60068-2-6: 10 Hz to 58 Hz: 0.075 mm, 58 Hz to 200 Hz: 9.8 m/s² (1 g) |
| Shock testing | |
| Tested according to IEC 60068-2-27: 150 m/s², 11 ms |
| Operating systems | |
| Operating system | Windows 7 Ultimate 32-bit / 64-bit, MUI; Windows Embedded Standard 7 E/P, 32-bit / 64-bit |
| pre-installed operating system | Yes |
| without operating system | Yes |
| pre-installed operating system | |
| Yes; Professional 32 bits or 64 bits; Ultimate 32 bits or 64 bits |
| Yes |
| optional available |
| Software | |
| SIMATIC Software | Optional package with SIMATIC WinCC or WinAC RTX |

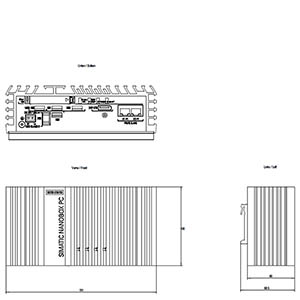

| Dimensions | |
| Width | 191 mm |
| Height | 100 mm |
| Depth | 60 mm |
