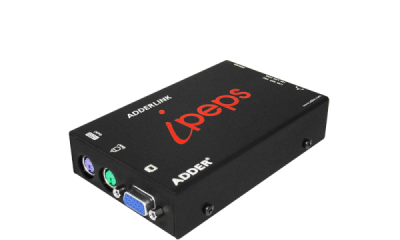

ADDER ADDERLink ipeps

High performance KVM over IP for Remote Server management

ADDER ADDERLink ipeps
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Ideal for CAT5/6/7 cable - see datasheet for recommendation
  • SUN compatible
  • PC compatible
  • Mac compatible
  • USB interface
  • VGA interface
  • RJ45 interface
  • Features PS/2 connection
High performance KVM over IP that delivers a complete, secure, non-blocking approach to Remote Server management.

A powerful and flexible KVM over IP product contained with in a palm sized unit, the AdderLink ipeps enables computer access from anywhere in the world, securely and remotely via the Internet or corporate network. The AdderLink ipeps uses Real VNC client software that is specifically designed for secure, high performance KVM over IP applications.

Despite its small size, there is no compromise in the performance of the AdderLink ipeps. By using Adventiq Inside® on-chip KVM over IP technology, an extremely high performance solution can be contained in a compact unit.

Also available as a Dual Access ipeps-DA version with local console access.


Interface powered, optional external PSU available

Independent operation gives full control even during boot up, BIOS level or computer crash states

USB or PS/2 keyboard and mouse connections

Virtual media support (via USB)

High performance video

Enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) further enhanced by the use of Real VNC that allows for the creation of ciphered user communications.

16 user profiles and access data logging

Up to 16 units can be rack mounted in 2U of rack space

Supports exclusive access mode or up to four simultaneous connections

ipeps DA model has feed through port that provides local KVM console access

Auto sensing 10/100 Mb Ethernet port

ProdGrafik

FEATURES


Independent operation

Gives full control even during boot up, BIOS level or computer crash states. The AdderLink ipeps will work even if the controlled devices are not operational.


High video performance

The AdderLink ipeps can use a standard web browser but for superior graphical performance, Real VNC is used. Free of the limitations of HTTPS, Real VNC greatly enhances video performance.


Highly secure

Employing enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) as standard, the AdderLink ipeps is further enhanced by the use of Real VNC that allows for the creation of ciphered user communications.


User management

Knowing who does what and when is crucial for any remote access service. The AdderLink ipeps can create up to 16 user profiles with defined access rights.


Global user control and access management

Where many AdderLink ipeps devices are used it is important that user access to devices is both secure and quick. Optional ADDER.NET Enterprise Management Software allows for an unlimited number of devices to be seen and accessed at the click of a button.


Virtual media support

To transfer files from remote users to controlled computers, the AdderLink ipeps has been engineered to act as a conduit through which data can be passed. Files can be transferred via IP on to the AdderLink ipeps and on to the target computer by means of a USB virtual media port.


For Enterprise KVM solutions the AdderLink ipeps provides a non-blocking global solution by providing each computer with a dedicated KVM over IP engine. This can be enhanced by using the ADDER.NET Enterprise Management Software that provides a centralised and secure user access management interface.

This platform independent device is ideal for server hosting companies who wish to offer KVM over IP services to their customers.

Increasing numbers of computers are being used in remote, stand alone applications such as ATMs and digital signage play out devices. The incredibly small size of the AdderLink ipeps makes it perfect for remote management and control of dispersed computers, meaning that many tasks that would have required an expensive site visit can now be done from anywhere.



Video modes

Supports standard PC, Sun and Mac video modes up to resolutions of 1600 x 1200 with scalable viewer.


Hardware compatibility

Supports PC, RS/6000, Alpha and SGI computers, Sun and Mac. USB or PS/2 connections supported


O/S compatibility

All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc


AdderLink ipeps to KVM/computer connection

Video: HDD15, Keyboard/Mouse: MiniDIN6 1m 3-in-1 cable supplied (USB converters also included)


Local console (DA model only)

Video: HDD15, Keyboard/Mouse: MiniDIN6


Connections

Ethernet: RJ45 10/100 autosensing


Physical design

Compact case, robust metal construction.
ipeps 120mm/4.72 (w), 27mm/1.06 (h), 75mm/2.95 (d), 0.34kg/0.76lbs.
ipeps DA 120mm/4.72 (w), 42mm/1.65 (h), 75mm/2.95 (d), 0.46kg/1.02lbs.
16 or 8 (DA) per 2U. Rack mount kits available (X-RMK-Chassis ), Fascia Plates available MET-IPEPS-DA-FASCIA for AL-IEPS-DA (order separately), MET-IPEPS-FASCIA for AL-IPEPS (included).


Optional power supply

100-240 VAC 50 - 60Hz


Operating temperature

0 - 40 deg C / 32 to 104 deg F


Approvals

CE, FCC



Industries

Ideal for Audio Visual industry
Ideal for Data Centre industry



           Ordering Information
AL-IPEPS-EURO IPEPS SINGLE
AL-IPEPS-DA-EURO IPEPS DUAL ACCESS
