Advantech BB-SCP311T-DFTB3

Wide-Temp, Isolated, RS-232 to 422/485 Converter

Advantech BB-SCP311T-DFTB3
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Isolated
  • ESD Protection - 8 kV Contact, 15 kV Air
  • Rugged Metal Case
  • Wide Operating Temperature Models
  • Panel Mount with Available DIN Rail Adapters
  • Built in Switchable Bias & Termination

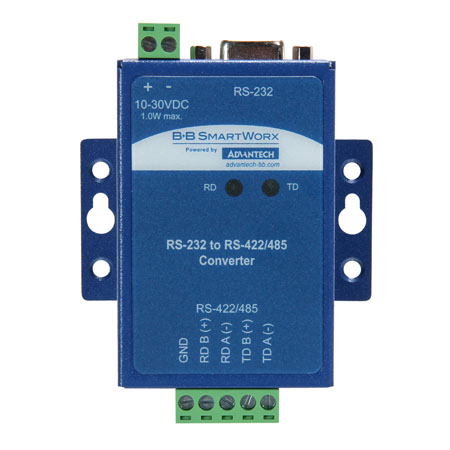

The SCP series RS-232 to RS-422/485 serial converters are compact and tough. Each model is designed and tested to meet heavy industrial EMC standards. The RS-232 signal is connected through a female DB9 connector. The RS-422/485 (2-Wire and 4-Wire) signal is connected through a removable terminal block, making wiring easy. Power is connected through a two position removable terminal block. Bit-wise enabled circuitry automatically detects the character time-out eliminating the need to set DIP switches for the baud rate.

Basic model SCP211-DFTB3 is non-isolated and made for less demanding temperature extremes. If you need a wider operating temperature but do not require isolation, model SCP211T-DFTB3 is available. These models should be used when isolation is not required, such as applications in which the data line does not exit the control cabinet.

Model SCP311T-DFTB3 offers 2 kV Isolation and will stand up to -40 to 80° C temperature variations. This is our most rugged model in this series. The SCP311 is an excellent investment for protecting your expensive control equipment.

ProdGrafik

SERIAL TECHNOLOGY

    RS-232
    TD, RD, GND

    RS-422/485 4W
    TDA(-), RDA(-), TDB(+), RDB(+), GND

    RS-485 2W
    DATA A(-), DATA B(+), GND

    Data Rate
    Up to 460.8 Kbps

    Isolation
    2 kV (SCP311T-DFTB3)

    Surge Protection
    +/- 0.5 kV DC Ports, +/- 1 kV Signal Ports

    Industrial Bus
    Modbus ASCII/RTU

    Bias
    1 KΩ Switchable

    Termination
    120 Ω Switchable

    Connectors
    RS-232 – DB9F (DCE)
    RS-422/485 – Removable Terminal Block


POWER

    Source
    External

    Power Connector
    Terminal Block

    Input Voltage
    10 to 30 VDC

    Power Consumption
    1.0 Watt Maximum


INDICATORS

    TD / RD
    Green LED (Also used to indicate power)


MECHANICAL

    Dimensions
    99x22.9x73.7 mm (3.9x0.9 x2.9 in)

    Enclosure
    IP 30, Metal

    Weight
    0.33 lbs, 0.15 kg

    MTBF SCP211 Series
    313926 Hours

    MTBF SCP311-DFTB3
    217576 Hours

    MTBF Calc. Method
    MIL 217F Parts Count Reliability


ENVIRONMENTAL

    Operating Temperature

      SCP211-DFTB3
      0 to 70°C

      SCP211T-DFTB3
      -40 to 80°C

      SCP311T-DFTB3
      -40 to 80°C

    Storage Temperature
    -40 to 85°C

    Operating Humidity
    0 to 95% Non-condensing


APPROVALS / CERTIFICATIONS

    Regulatory
    UL Listed, UL File Number: E222870

    Emissions
    FCC Class B, CISPR Class B (EN55022)

    CE

    EN61000-6-2:2005 (Heavy Industrial)
    EN61000-4-2:2008 (ESD) 8kV contact, 15kV air
    EN61000-4-3:2006 (RI) 10 V/m
    EN61000-4-4:2004 (EFT Burst) 1kV signal, 2kV power
    EN61000-4-5:2005 (Surge) 1kV signal, 500V DC, 1kV AC
    EN61000-4-6:2005 (CI) 10 Vrms





ORDERING INFORMATION
MODEL NUMBER DESCRIPTION
BB-SCP211-DFTB3 RS-232 to 422/485 Converter
BB-SCP211T-DFTB3 Wide-Temp, RS-232 to RS-422/485 Converter
BB-SCP311T-DFTB3 Wide-Temp, Isolated, RS-232 to 422/485 Converter
