Advantech BB-FOSTCDR

Industrial Serial to Multimode Fiber Optic Converter

Advantech BB-FOSTCDR
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Data rates up to 115.2 kbps
  • 4 km (2.5 mi) range
  • 10 to 30 VDC input voltage
  • Wide operating temperature
  • 2000V, 2-way isolation
  • Modbus ASCII/RTU compatible
  • EMI/RFI protection
  • TD, RD and Power LED´s
The BB-FOSTCDR is our Industrial Serial to Multimode Fiber Optic Converter. Designed for industry, it extends serial data range up to 2.5 miles and provides the most versatile connection possible between any asynchronous full or half-duplex serial equipment. In addition to direct point-to-point connectivity, it is capable operating in a multi-drop mode. This allows one serial device to communicate with up to 31 others around a fiber optic ring. Since it supports mixed serial standards, you can replace other converters and isolators and add the EMI/RFI immunity inherent to fiber optic communications.

In RS-232 mode, the BB-FOSTCDR supports transmit and receive data. Handshaking signals are not passed through.

An Automatic Send Data Control circuit controls the RS-422/485 driver chip, eliminating the requirement for special software.

Easy to install and configure, it has an 8 position DIP Switch to set up the RS-422/485 parameters and terminal blocks to connect serial signals and power.

A kit option, Model FOSTCDRKT, conveniently bundles two FOSTCDR converters with two matched power supplies.

Model FOSTCDR-INV features an “inverted fiber state” and is suitable for applications requiring the fiber optic light to be Off in the idle state.

ProdGrafik

SERIAL TECHNOLOGY

    Data Rate
    RS-232: 115.2 Kbps maximum
    RS-422/485: 460.8 Kbps maximum

    RS-232

      Connector
      Terminal block (24 to 14 AWG)

      RS-232
      TD, RD, GND

    RS-422/485

      Connector
      Terminal block (24 to 14 AWG)

    RS-485, 2-wire
    Data A(-), Data B(+), GND

    RS-422/485, 4-wire
    TDA(-), TDB(+), RDA(-), RDB(+), GND


ISOLATION

    Rating
    2KV RMS, 1 minute

    Lines Protected
    2-way (input, output lines)

    Method
    Optical


FIBER OPTIC TECHNOLOGY

    Type / Wavelength
    Multi-mode / 820 nm

    Output Power
    (-) 17 to (-) 10 dBm

    Receive Sensitivity
    (-) 25.4 dBm to (-) 24 dBm

    Cable
    62.5/125 micro-meter

    Connector
    ST

    Data Rate
    9.6 to 115.2 kbps

    Maximum Distance
    4 km (2.5 mi)

    Idle State
    Transmitter light ON


POWER

    Source
    External

    Input Voltage
    10 to 30 VDC

    Consumption
    1.7 Watts

    Connector
    Terminal block, (24 to 14 AWG)


INDUSTRIAL BUS

    Modbus
    ASCII/RTU


MECHANICAL

    LED Indicators
    Serial TD, RD, and Power

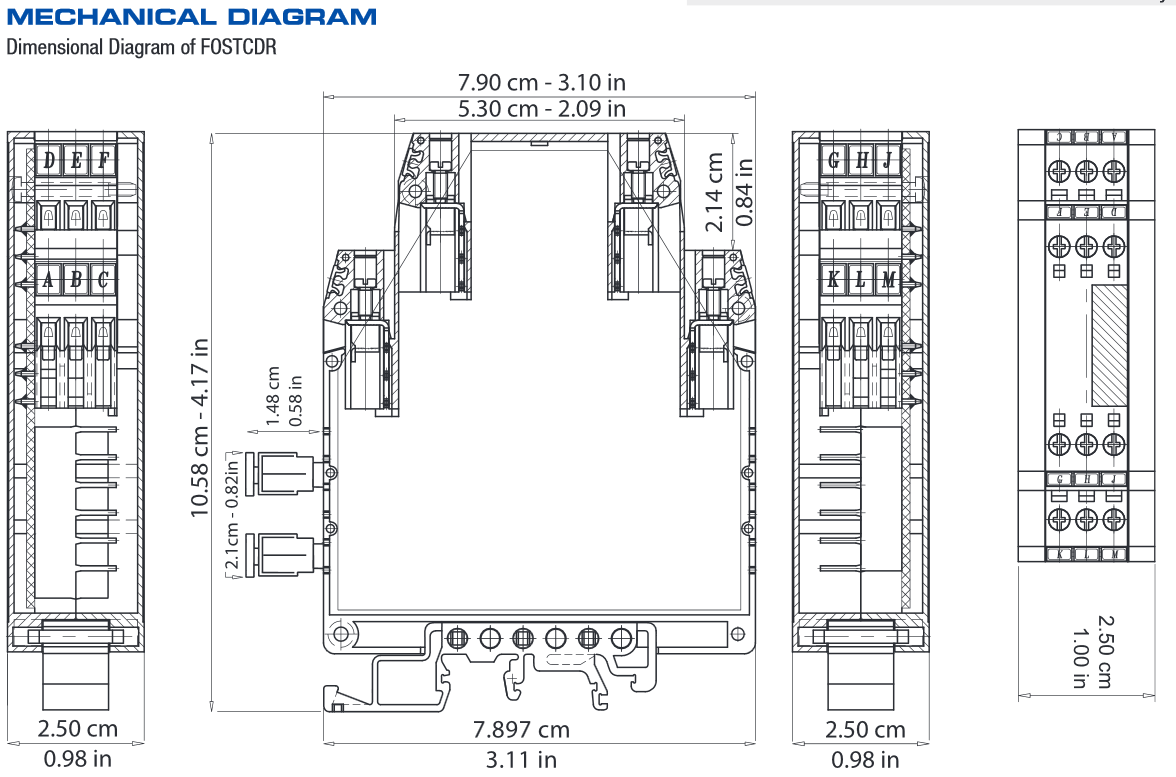

    Dimensions
    10.6 x 7.9 x 2.5 cm (4.3 x 2.3 x 0.95 in)

    Enclosure
    35mm DIN mount, plastic

    Weight
    182 g (0.4 lbs)


ENVIRONMENTAL

    Operating Temperature
    -40 to +80 °C (-40 to +176 °F)

    Storage Temperature
    -40 to +85 °C (-40 to +185 °F)

    Operating Humidity
    0 to 95% non-condensing


APPROVALS / CERTIFICATIONS - FOSTCDR

    cULus Recognized, File Number: E222870
    FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class A Emissions

    CE
    EN 61000-6-1: 2007 Generic Standards for Residential, Commercial and Light-Industrial Environments
    EN 61000-4-2: 2009 Electro-Static Discharge (ESD)
    EN 61000-4-3: 2006 +A1 +A2 +IS1 Radiated Field Immunity (RFI)
    EN 61000-4-4: 2012 Electrical Fast Transients-Burst Immunity (EFT)
    EN 61000-4-6: 2009 Conducted Immunity

    Download complete Declaration of Conformity at www.bb-elec.com


APPROVALS / CERTIFICATIONS - FOSTCDR -INV

    UL 508, File Number: E222870
    FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class A Emissions
    CE


MTBF

    FOSTCDR
    460854 hours

    FOSTCDR-INV
    138904 hours

    Calculation Method
    MIL 217F Parts Count Reliability Prediction



ORDERING INFORMATION

MODEL NUMBER SERIAL CONNECTOR FIBER CONNECTOR ISOLATION INVERTED FIBER STATE*
BB-FOSTCDR Terminal Block Multi-mode ST 2,000 V -
BB-FOSTCDR-INV Terminal Block Multi-mode ST 2,000 V yes
