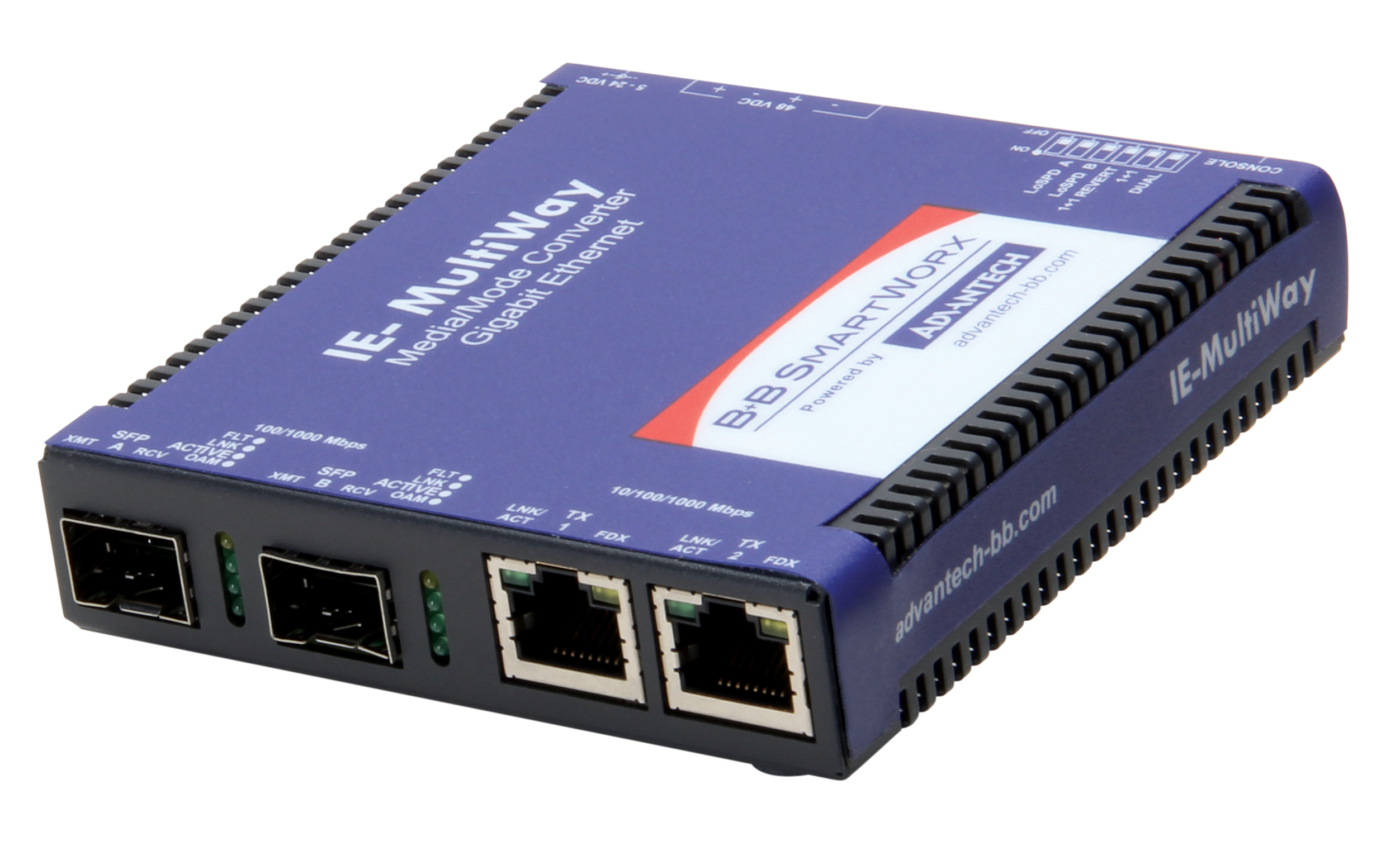

Advantech BB IMC-574I-SFP-PS
Managed Hardened Media Converter, 1000Mbps, 2xSFP, AC adapter
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Versatile 4-port media converter
- Supports SNMP for management
- Supports a variety of SFP modules
- Works under an extended temperature range
- Supports OAM, VLAN, 1+1 revertive
- Provides RS-232 CLI (command line interface) console port
also known as IE-Multiway 858-11121
The IMC-574I is a value-based, managed Gigabit Ethernet solution that is ideal for use in fiber infrastructure. The IMC-574I comes with two SFP ports and two fixed 10/100/1000Base-T copper ports. There are four distinct DIP switch selectable configurations that feature the IMC-574I to be a 1+1 uplink port revertive mode, a 1+1 uplink protection non-revertive mode, a 4-port Gigabit switch, and a dual copper-to-fiber SFP media/mode converter (two Gigabit fiber media converters in one).
The term "1+1" refers to line protection where identical information is transmitted on two lines. The receiver chooses its communication line based on the revertive or non-revertive configuration. When a fault is detected on the active line, the traffic is switched to the redundant line. In the non-revertive mode, data is not resumed back to the original line unless the backup line fails or is disconnected. Once the original line is no longer in a fault condition, data can be resumed back to the original line.
The IMC-574I is a value-based, managed Gigabit Ethernet solution that is ideal for use in fiber infrastructure. The IMC-574I comes with two SFP ports and two fixed 10/100/1000Base-T copper ports. There are four distinct DIP switch selectable configurations that feature the IMC-574I to be a 1+1 uplink port revertive mode, a 1+1 uplink protection non-revertive mode, a 4-port Gigabit switch, and a dual copper-to-fiber SFP media/mode converter (two Gigabit fiber media converters in one).
The term "1+1" refers to line protection where identical information is transmitted on two lines. The receiver chooses its communication line based on the revertive or non-revertive configuration. When a fault is detected on the active line, the traffic is switched to the redundant line. In the non-revertive mode, data is not resumed back to the original line unless the backup line fails or is disconnected. Once the original line is no longer in a fault condition, data can be resumed back to the original line.
Product Specifications
- * Port Configuration
- Total Port Number
4
Ethernet Communication
- Fiber Port Number
2
RJ-45 Port Number
2
Fiber Transmission Speed
10/100/1000 Mbps
Fiber Port Optical Mode
Various
Fiber Transmission Wavelength
Various
Fiber Port Connector Type
SFP cage
PoE Information
- PoE Port Number
0
PoE-PSE
-
Power
- Power Input (DC)
48 VDC x
Mechanism
- Dimensions (W x H x D)
9.38 x 2.2 x 9.94 cm (3.66 x 0.86 x 3.86 in.)
Weight
0.45 kg (1.0 lb)
Environment
- Temperature (Operating Range)
-10 ~ 50°C (14 ~ 122°F)
Temperature (Storage Range)
-45 ~ 85°C (-40 ~ 185°F)
Humidity (Operating Range)
10 ~ 95% (non-condensing)
Certification
- Safety
UL/cUL
EMC
CE, FCC Class B
Ordering Information
| Part Number | Also Known As | Ethernet Speed | Optical Mode | Distance | Optical Connector | Power Adapter |
|---|---|---|---|---|---|---|
| IMC-574I-SFP | 854-11121 | 10/100/1000 Mbps | Various | Various | 2 x SFP | - |
| IMC-574I-SFP-PS | 858-11121 | 10/100/1000 Mbps | Various | Various | 2 x SFP | AC/DC Adapter, 15W @ 5V DC |
Accessories
| Part Number | Description |
|---|---|
| 806-39105 | DIN Rail Clip |
| 806-39720 | AC Power Adapter (10W, -10 to +50 °C) |
| 825-39951 | Serial Cable, MiniJack to DB9 (female) |
| 895-39229 | Wall-mount Bracket |
- * SFP fibers sold separately ? available at www.advantech.com
