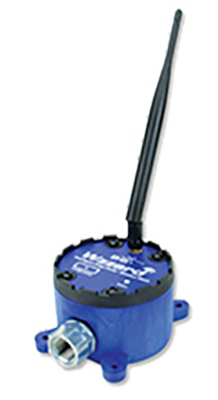

Advantech BB-WSD2CA2

Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; External Antenna, Conduit Connector

Advantech BB-WSD2CA2
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Ultra low power 802.15.4e SmartMesh IP technology
  • Communicates with Spectre Network Gateway via highly scalable and reliable wireless mesh networks
  • Connect to industry standard analog sensors
  • Wzzard app lets you read or configure the nodes using Android tablets and smart phones
  • Rugged, IP66-rated, fiber reinforced polyester PBT enclosure
  • MQTT and JSON IoT protocol to application platform
  • Class 1 DIV 2 approved for hazardous locations
Wireless Connectivity Where You Need It

The Wzzard™ intelligent wireless sensor platform creates a complete, quick and easy connectivity stack between your sensors and your application, on your network or on the Internet. The platform uses Intelligent Edge Nodes, a wireless 802.15.4e SmartMesh IP network to transmit sensor data to the Spectre Network Gateway. The Spectre Network Gateway can connect to the Internet via wired connections or the cellular data networks and communicate with application platforms using the MQTT IoT protocol and JSON data formats.

The Wzzard Intelligent Edge Nodes nodes accommodate virtually any industry-standard external sensors. Connections can be made via conduit fitting, cable gland or an M12 connector. The Nodes provide a wide variety of sensor interface options, including general purpose analog inputs, digital input/output and thermocouple. They can also contain internal sensors like an accelerometer, depending upon the model number. All 802.15.4e Wzzard Intelligent Edge Nodes contain an internal temperature sensor.

Secure, Reliable and Highly Scalable Wireless Networking

The Wzzard platform uses mesh networking and time-synchronized channel hopping to provide up to 99.999% connectivity, even in the most demanding RF environments. New nodes may be added at any time, and the SmartMesh IP network will dynamically self-configure as new nodes are added or removed. This is a function of the mesh network itself, and does not need to be controlled by the network gateway.

Easy Configuration and Installation

Configuration of the Wzzard sensor platform is easy via Android smart phones or tablets. Using the Wzzard app, your handheld devices can configure the Wzzard Intelligent Edge Nodes over their Bluetooth LE connections. The Wzzard Intelligent Edge Nodes can be configured with calibration and scaling information, eng. units, friendly names, geolocation and other descriptive information. The platform simplifies physical installation as well. The Wzzard Intelligent Edge Nodes can be attached to any surface using screws or their embedded magnetic bases. The IP66-rated, fiber reinforced polyester PBT housing makes the units deployable in virtually any industrial or commercial environment.

Intelligence at the Network Edge

The Wzzard wireless platform places intelligence at the network edge. The Wzzard Intelligent Edge Nodes can be configured to communicate data only when specified threshold or alert levels are exceeded. When reporting, they can associate useful information like geolocation, device name and uptime. This eliminates unnecessary network traffic, eases the processing burden on upstream resources, and cuts the cost of cellular data plans when the Gateway is using the cellular data network. Thanks to low-power wireless technology and programmable time synchronization, the Intelligent Edge Nodes can operate for multiple years on battery power.
ProdGrafik
POWER

    Internal
    (2) 3.6V 2400 mAH Lithium Thionyl Chloride AA batteries

    Battery Life
    Multiyear based on 1 min sensor sampling and reporting

    Optional External Input Voltage
    3.3 VDC +/- 5%


MECHANICAL

    Physical Connection
    M12 Connector
    1/2” (12.7 mm) Conduit, sensor interface cable
    included; 8 wire, 26 gage, 6 ft. (1.8 m)

    Sensor Inputs
    Analog Input (0 - 5 VDC, 0 – 20 mA, 4 – 20 mA)
    Digital Input (0-48 VDC)
    Digital Input Frequency 1-1K Hz
    (Accuracy + or – 1 Hz)
    Digital Input Counter
    Integrated Accelerometer 3 Axis
    Integrated Temperature
    Thermocouple J, K Type
    Digital Output (0-30 VDC)

    Optional External Antenna
    RP-SMA, Omnidirectional, 3.8 dBi, 2.4 GHz

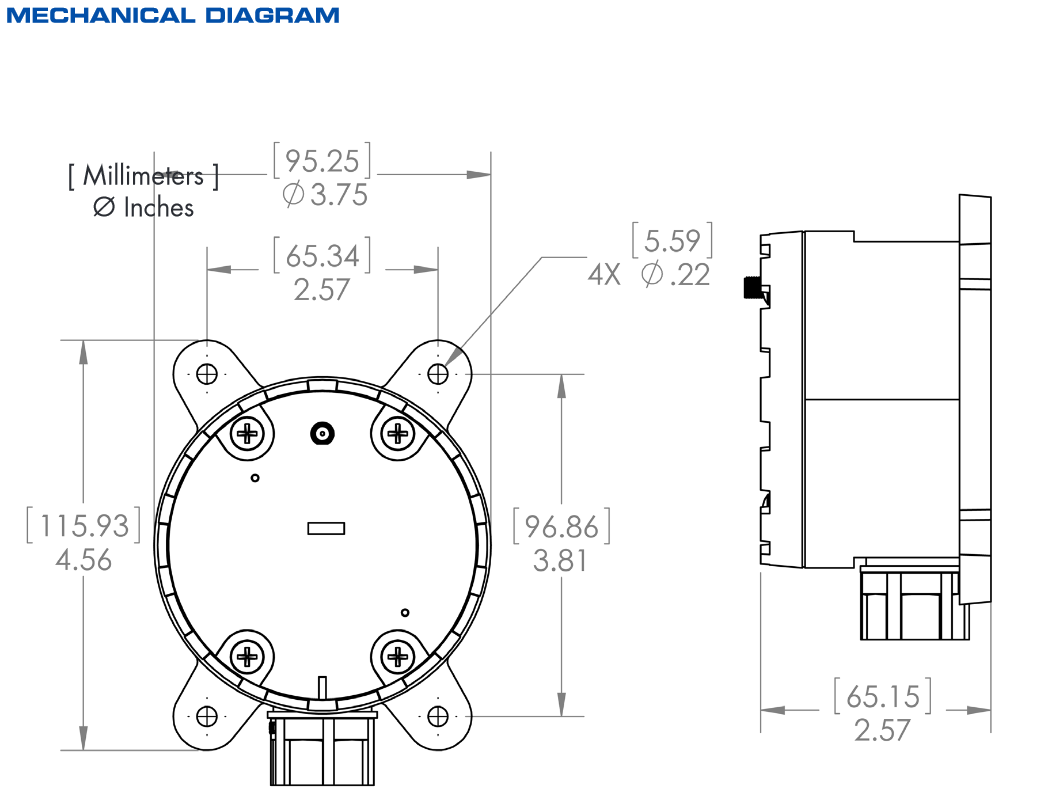

    Dimensions 7.64 inches (194 mm)

    Mounting
    Magnetic mounting via internal magnet
    Pull force 4.7 lbs (2.13 kg)
    (4) Mounting ears, M5 (#10)

    Enclosure
    IP66-rated, fiber reinforced polyester PBT

    Weight
    0.75 lbs (0.34 kg)


TECHNOLOGY

    Wireless
    802.15.4e, SmartMesh IP

    Protocols
    MQTT-SN, MQTT, JSON

    Bluetooth
    Bluetooth 4.0 Low Energy (LE)

    LED
    Network Connectivity


ENVIRONMENTAL

    Installation
    Indoor or outdoor

    Operating Temperature
    -40 to 80°C (-40 to 176°F)

    Storage Temperature
    -40 to 85°C

    Operating Humidity
    0 to 95% Non-condensing


WIRELESS SECURITY

    Device Authentication
    128 bit AES-based encryption with multiple keys
    Message integrity check (MIC)
    Synchronized key changeovers
    Customized key rotation




SENSOR INTERFACE SPECIFICATIONS


DIGITAL INPUTS

    Voltage range
    0 – 48 VDC

    V IL
    0.97 V Maximum

    V IH
    1.8 V Minimum

    Pull up current
    32uA

    Type
    Sourcing (PNP)/Sinking (NPN) Software selectable input

    Isolation
    None


RATE/FREQUENCY INPUTS

    Frequency
    Does a 1 second measurement at each measurement/publish interval
    Digital Input Frequency 1-1K Hz (Accuracy + or – 1 Hz)
    Uses the falling edge or rising edge based on the Invert Enabled setting


COUNTER INPUT

    Channels
    Actively counts either the falling edge (Invert enabled) or rising edge (Invert disabled)
    Can use a multiplier to convert to a unit type or count
    2 selectable/shared with Digital inputs
    Rolls over at 999999.9


ANALOG INPUTS

    Input ranges
    0 - 5 VDC, 0 – 20 mA, 4 – 20 mA

    Resolution
    12 bit

    Input load resistance
    100 Mega ohm (0-5VDC), 250 ohm (0 - 20 ma)

    Accuracy
    Voltage: 0.10% of full scale reading, 0.20% max.
    Current: 0.11% of full scale reading, 0.24% max.


THERMOCOUPLE INPUT

    Types Supported
    J and K

    Ranges Supported
    Type J -210 to +1,200 °C
    Type K -270 to +1,372 °C

    Resolution
    0.25 °C

    Accuracy
    Typical +/- 2 °C
    +/- 6 °C over the temperature range of -40 to 80 °C


DIGITAL OUTPUTS

    Voltage range
    0 - 30 VDC

    Output Type
    Open Drain

    Output Current
    Not to be less than 100ma

    Protection
    Current Limit Protection

    Isolation
    None


APPROVALS AND CERTIFICATIONS

    CE
    EN55022 CISPR (EN55022) Class A
    EN 61000-6-2:2005 Generic immunity standard for (heavy) industrial environments
    EN 61000-6-4:2006+A1:2011             Emission standard for (heavy) industrial environments
    EN61000-4-2 ESD +/- 8kV air, +/- 4kV contact
    EN61000-4-3 RFI
    EN61000-4-4 EFT
    EN61000-4-5 Surge
    EN61000-4-6 CI
    EN60255-21-1 Vibration, 2g, 10-500Hz 0.3mm displacement
    EN60255-21-2 Shock, 50g, 11ms half sine wave, 18 shocks


ENVIRONMENTAL

    IEC 60068-2-6:2007       Vibration, 2g, 10-500 Hz,1.5mm displacement
    IEC 60068-2-27:2008       Shock, 50g, 11ms half sine wave, 18 shocks


FCC/IC

    FCC Part 15 Class A
    FCC - Part 15.247
    Industry Canada - RSS210


SAFETY

    UL/CSA Class 1, Division 2 Group A, B, C, D


REGULATORY APPROVALS

    ROHS and WEEE Compliant





ORDERING INFORMATION
MODEL NUMBER THERMOCOUPLE INPUT
BB-WSD2CTJ Wireless Mesh 802.15.4e, 2 Thermocouple J-type Inputs, 1 Digital Output; External Antenna, Conduit Connector
BB-WSD1CTJ Wireless Mesh 802.15.4e, 2 Thermocouple J-type Inputs, 1 Digital Output; Internal Antenna, Conduit Connector
BB-WSD2CTK Wireless Mesh 802.15.4e, 2 Thermocouple K-type Inputs, 1 Digital Output; External Antenna, Conduit Connector
BB-WSD1CTK Wireless Mesh 802.15.4e, 2 Thermocouple K-type Inputs, 1 Digital Output; Internal Antenna, Conduit Connector
MODEL NUMBER ACCELEROMETER
BB-WSD2XV0 Wireless Mesh 802.15.4e Integrated Accelerometer; External Antenna
BB-WSD1XV0 Wireless Mesh 802.15.4e Integrated Accelerometer; Internal Antenna
MODEL NUMBER ANALOG INPUT
BB-WSD2MA2 Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; External Antenna, M12 Connector
BB-WSD1MA2 Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; Internal Antenna, M12 Connector
BB-WSD2CA2 Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; External Antenna, Conduit Connector
BB-WSD1CA2 Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output; Internal Antenna, Conduit Connector
BB-WSD2CJA Wireless Mesh 802.15.4e; 2 Analog Inputs, 1 Digital Output, 2 Thermocouple J-type Inputs; External Antenna, Conduit Connector
BB-WSD2MA3 Wireless Mesh 802.15.4e; 3 Analog Inputs; External Antenna, M12 Connector
BB-WSD1MA3 Wireless Mesh 802.15.4e; 3 Analog Inputs; Internal Antenna, M12 Connector
BB-WSD2CA3 Wireless Mesh 802.15.4e; 3 Analog Inputs; External Antenna, Conduit Connector
BB-WSD1CA3 Wireless Mesh 802.15.4e; 3 Analog Inputs; Internal Antenna, Conduit Connector
MODEL NUMBER DIGITAL INPUT
BB-WSD2MD2 Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; External Antenna, M12 Connector
BB-WSD1MD2 Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; Internal Antenna, M12 Connector
BB-WSD2CD2 Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; External Antenna, Conduit Connector
BB-WSD1CD2 Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; Internal Antenna, Conduit Connector
ACCESSORIES
PART NUMBER DESCRIPTION
ACH2-DBAT-DP003 External Antenna, 2.4 GHz, 2 dBi, Dipole, RP-SMA, hinged, 3.8 dBi
ACH2-AT-DP011 Magnetic Mount Antenna, 2.4 GHz, 3.8 dBi
WSCAC0-6 Pigtail Cable 6 ft (1.8m)
WSCAM12-6 M12 Wiring harness cable, 8 pin, 6 ft (1.8 m)
ZXTMT Cable Gland/Conduit Kit
