Advantech BB-485OPDRI-PH

RS-485/422 Triple (Heavy Duty) Isolated Repeater, DIN Rail

Advantech BB-485OPDRI-PH
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • IEEE-61850-3, IEEE-1613
  • NEMA TS2
  • -40 to 85°C Operating Temperature
  • Rugged IP30 Metal Panel Mount Case
  • 50G Shock, 4G Vibration
  • 2kV Triple Isolation
  • 10 to 48 VDC Input Power
Model BB-485OPDRI-PH is our premium heavy industrial RS-422/485 isolated repeater. Designed for rugged industrial environments, it has been put through some of the most exacting compliance tests in the industry. Meeting the requirements of IEC 61850-3 and IEEE 1613, it is suitable for installation in electrical substations. These specifications are more stringent than the NEMA TS1/TS2 requirements for transportation applications. Powerful isolation on both data ports protects your equipment and data from damaging ground loops and surges. Additional isolation on the power supply circuits adds a third degree of protection.

Packaged in a rugged IP30 metal case, it extends full or half-duplex RS- 422/485 signals an additional 4000 feet and allows you to add another 32 nodes to your network. Our bit-wise enabled circuitry automatically detects the data rate without setting a DIP switch.

ProdGrafik

SERIAL TECHNOLOGY

    RS-422
    TDA(-), TDB(+), RDA(-), RDB(+)

    RS-485 4-Wire
    TDA(-), TDB(+), RDA(-), RDB(+)

    RS-485 2-Wire
    Data A(-), Data B(+)

    RS-422/485 CON.
    5 Position, Removable Terminal Block

    Data Rate
    1.2 to 115.2 Kbps

    Isolation
    2 KV RMS, 1 minute

    Surge Protection
    600 W Peak Power Dissipation
    Clamping time < 1 pico-second

    Industrial Bus
    MODBUS ASCII / RTU

    Bias
    Built-in, switchable 1.2KΩ XMT/RCV

    Termination
    Built-in, switchable 120Ω



POWER

    Source
    External

    Power Connector
    2 Position Removable Terminal Block

    Input Voltage
    10 to 48 VDC (56 VDC Maximum)

    Power Consumption
    0.5 W typical (2.3 W with termination)



TERMINAL BLOCKS

    Wire Size Accepted
    28 to 12 AWG, Copper wire only.

    Pitch
    5.08 mm

    Insulation Resistance
    ≥500 MΩ @ 500 VDC

    Maximum Torque
    5 Kg / cm
    Temperature rating of field installed conductors 105°C minimum.



INDICATORS

    Power
    Red LED

    TD / RD (Each Port)
    Green LED

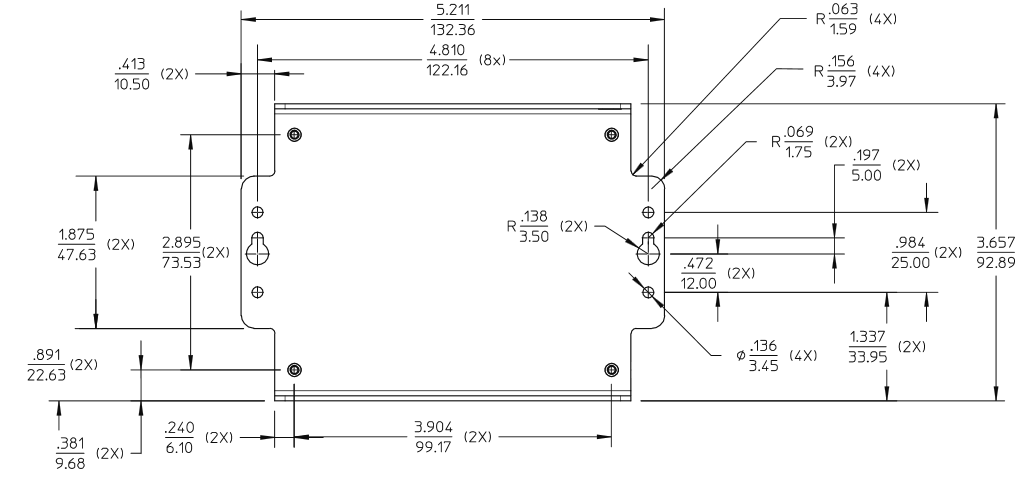

MECHANICAL

    Dimensions
    13.24 x 9.29 x 3.30 cm
    5.2 x 3.7 x 1.3 in

    Enclosure
    IP30 Metal, Panel Mount

    Weight
    0.46 lbs (208.65 grams)

    MTBF
    122832 Hours

    MTBF Calc. Method
    Parts Count Reliability Prediction



ENVIRONMENTAL

    Operating Temperature
    -40 to 85°C (-40 to 176°F)

    Storage Temperature
    -40 to 85°C (-40 to 176°F)

    Operating Humidity
    0 to 95% Non-condensing



REGULATORY

    Approvals
    FCC, CE, IEC 61850-3, IEEE 1613, UL C1 D2,
    File: E245458, NEMA TS2



IEC 61850-3 ELECTRO MAGNETIC INTERFERENCE SPECIFICATIONS

    61000-4-2
    61000-4-3
    61000-4-4
    61000-4-5
    61000-4-6
    61000-4-12
    61000-4-16
    61000-4-17



IEEE 1613 C37.90 ELECTROMAGNETIC INTERFERENCE SPECIFICATIONS

    C37.90.3
    C37.90.2
    C37.90.1



ENVIRONMENTAL SPECIFICATIONS

    60068-2-1
    60068-2-2
    60068-2-30
    IEC 600068-2-6
    IEC 600068-2-27
    IEC 60068-2-32
