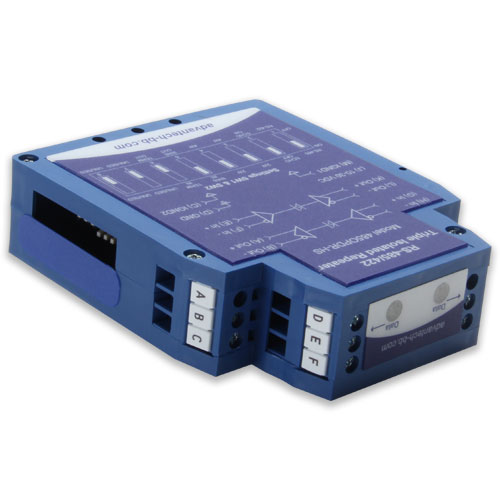

Advantech BB-485OPDR-HS

High Speed Isolated RS-422/485 Repeater

Advantech BB-485OPDR-HS
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • 2 kV Isolation
  • IEC Level 2, ± 4 kV Contact ESD Protection, IEC Level 3, ± 8 kV air ESD Protection
  • 1.5 Mbps Data Rate
  • -40 to 80°C Operating Temperature
  • NEMA TS2
The BB-485OPDR-HS is a high speed, optically isolated RS-422/485 repeater that supports data rates up to 1.5 Mbps, making it suitable for use in fieldbus systems such as Profibus. The BB-485OPDR-HS provides 2 kV digital Isolation with 8 kV air ESD protection and 600 W transient voltage suppression on the data lines. The BB-485OPDR-HS can be used to extend the range of a network up to 4000 ft. (1.2 km), depending on data rates, and to add additional nodes. 2-Wire RS-485, 4-Wire RS-485 and RS-422 are supported. Data signals and the power inputs connect to built-in terminal blocks. The repeater operates on externally sourced 10 to 30 VDC power. The enclosure has a DIN rail mount that is designed to fit easily on a standard 35mm rail.

ProdGrafik
General

    Connector
    Plug-in 5P/15P screw terminal blocks

    Interface
    RS-422 RS-485

    Temperature (Storage)
    -40~85°C (40~185 °F)

    Humidity
    0 ~ 95%, non-condensing

    Temperature (Operating)
    -40 ~ 80° C (-40 ~ 176° F)


Display

    LED Indicators
    Communication and Power


Power Supply

    Power Requirement
    10~30 VDC
