Panorama Antennas CM-7-60-NJ

InBuilding omni directional 2/3/4G/WiFi antenna

Panorama Antennas CM-7-60-NJ
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Discreet ceiling mount design
  • Highly efficient wideband coverage
  • Low PIM and SAR tested to EN50385:2002
InBuilding omni directional 2/3/4G/WiFi antenna

The CM-7-60-NJ ceiling antenna is a compact and subtle to provide optimum in-building or DASoverage for the networks of today and tomorrow. Concealed beneath the antenna housing is a highly efficent wideband element capable of supporting 2G/3G/4G/Wlan and WIMAXnetworks from 698-960MHz and 1710-6000MHz.
Suitable for indoor or outdoor use the antenna only requires one mounting hole for installation but offers additional screw fixing holes located beneath a rotating valance. The antenna is ground plane independet and can be fitted onto both thick and thin ceiling tiles.
This product features Panorama Antennas´PIM Guard Technology and will meet or exceed a third order intermodulation level of >-150 dBC.
ProdGrafik

Specification


Frequencies MHz
698-960 / 1700-6000

Cable Length
No cable

Connector
1x N f (Cellular)

Electrical Data

Frequency Range (MHz)

698-960 / 1500-6000

Operational bands

2G / 3G / 4G / WLAN / WIMAX

Radiation pattern

Omni-directional

VSWR

< 2.5:1

Peak Gain
    698-960 MHz          2dBI
    1710-2170 MHz          5dBi
    2200-6000 MHz          7dBI

Typical Passive intermod.(2x20W, 3rd ord.) dBc

> -150

SAR & `Touch Safe`Test Data

According to 50385:2002 (Bands: 850, 900, 1800, 2100, 2600 MHz)

Max input power

50 Watt

Impedance

50 Ù


Mechanical Data

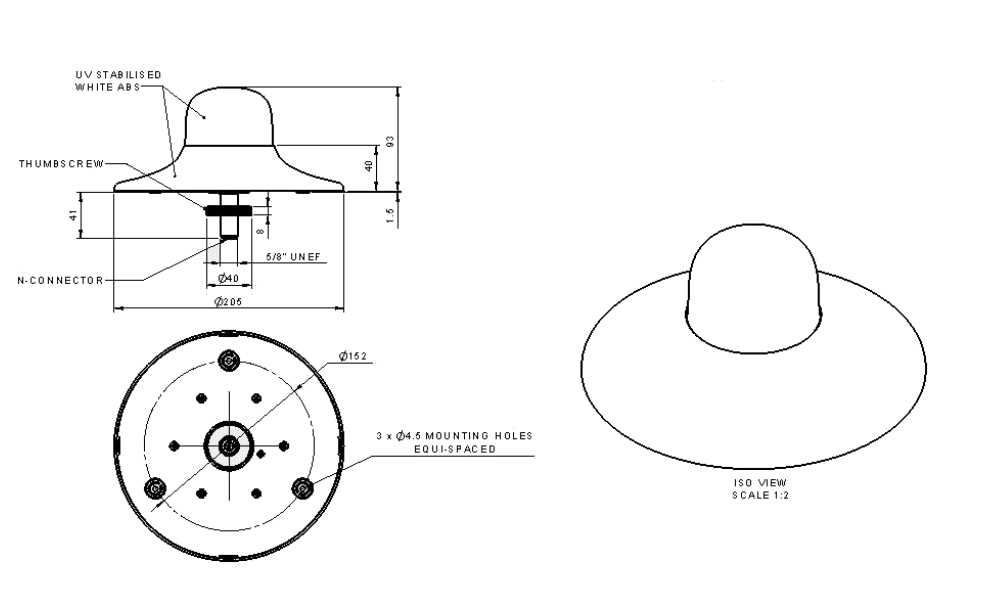

Dimensions (mm)
    Height          93 (3,6")
    Diameter          205 (8")

Operating temp (°C)

-30° / +70° (-22°/158°F )

Material

U.V. Stabilised flame retardant ABS, alluminium base plate

Colour

white


Mounting Data

Fixing

3 x 4,5 mm fixing holes and/or N socket lock wheel

Diameter (mm)

4,5 (0,2") / 16 (5/8")

Depth (mm)

41 (1,6")

Termination

N Socket
