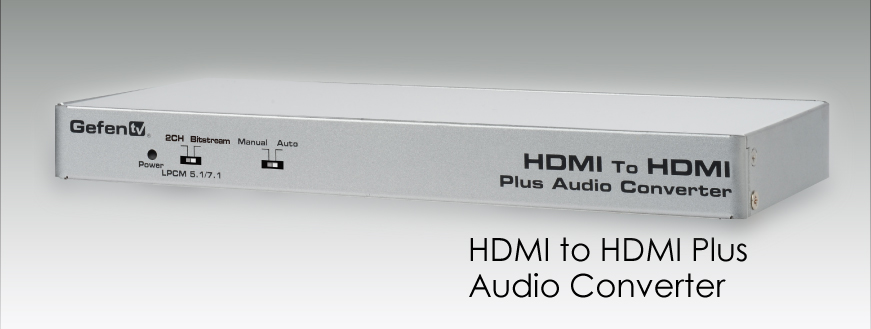

Gefen GTV-HDMI-2-HDMIAUD
HDMI to HDMI Plus Audio Converter
- Switchable selection between Auto mode and Manual mode
- Bitstream Audio via Optical Toslink and LPCM 7.1 via 8 RCA connectors
- Locking power supply
HDMI In to HDMI Out with Audio Converter
The GefenTV HDMI to HDMI Audio Converter is a product that takes a Hi-Def source using HDMI and outputs it to an HDTV display using HDMI and, in addition, up to 8 channels of LPCM audio output through eight RCA connectors. Bitstream is output to an Optical digital connector.
Additional features include switchable audio selections between auto mode and manual mode affording further selection between two-channel audio only, multi-channel bitstream, and 7.1 LPCM audio.
How It Works
Connect a Hi-Def source to the GefenTV HDMI to HDMI Audio Converter’s input with the included HDMI cable. Connect another HDMI cable from the output of the Converter to an HDTV display. Connect an optical audio cable from the Converter to an external amplifier. Alternatively connect an amplifier to the 8 channel RCA connectors. Finally connect the 5V DC power supply to the locking connector and to an electric outlet.
Supported HDMI Features:
Note: Complies with HDMI 1.3, DVI 1.1, and HDCP 1.1
The GefenTV HDMI to HDMI Audio Converter is a product that takes a Hi-Def source using HDMI and outputs it to an HDTV display using HDMI and, in addition, up to 8 channels of LPCM audio output through eight RCA connectors. Bitstream is output to an Optical digital connector.
Additional features include switchable audio selections between auto mode and manual mode affording further selection between two-channel audio only, multi-channel bitstream, and 7.1 LPCM audio.
How It Works
Connect a Hi-Def source to the GefenTV HDMI to HDMI Audio Converter’s input with the included HDMI cable. Connect another HDMI cable from the output of the Converter to an HDTV display. Connect an optical audio cable from the Converter to an external amplifier. Alternatively connect an amplifier to the 8 channel RCA connectors. Finally connect the 5V DC power supply to the locking connector and to an electric outlet.
Supported HDMI Features:
- Resolutions up to 1080p Full HD
- 12 bit Deep Color
- LPCM 7.1 Audio, Dolby® TrueHD, and DTS-HD Master Audio™
- 3DTV Pass-through
- CEC Pass-through
- Lip Sync Pass-through
- Refer to the manual for further explanation of the switches that are on the front panel
Note: Complies with HDMI 1.3, DVI 1.1, and HDCP 1.1
Specifications
- Maximum Pixel Clock: 225 MHz
- Maximum Resolutions: 1080p, 1920 x 1200
- HDMI Input: 19-pin HDMI connector
- HDMI Output: 19-pin HDMI connector
- Digital Audio Output: TOSLINK
- Analog Audio Outputs: 8 x RCA
- Power Supply: 5V / 2.6A DC, locking
- Power Consumption: 13 Watts (max)
- Operating Temperature: 0 - 40 °C
- Dimensions: 9.5"W x 1"H x 4"D
- Shipping Weight: 3 lbs
