Gefen EXT-DVI-1CAT5-SR
DVI Short Range Extender over one CAT5
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Extends DVI up to 230 feet (70 meters) over one CAT-6A cable
- Extends DVI up to 200 feet (60 meters) over one CAT-5e cable
- Supports resolutions up to 1920 x 1200 (WUXGA)
- EDID management for rapid integration of source and display
- HDCP compliant
- Locking power supplies
- Surface-mountable
Extend DVI up to 230 feet (70 meters) over one CAT-6A cable, or up to 200 feet (60 meters) over one CAT-5e

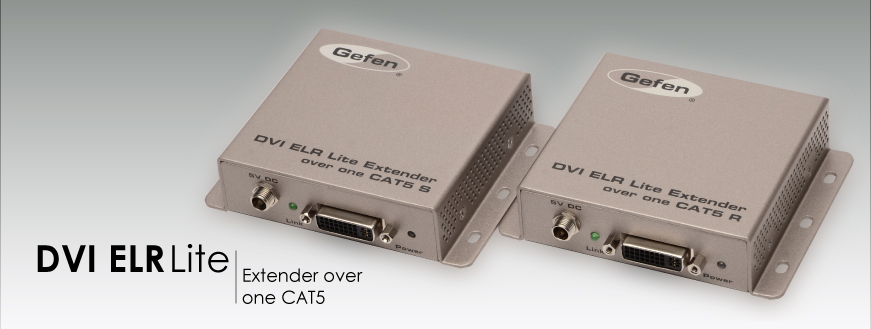

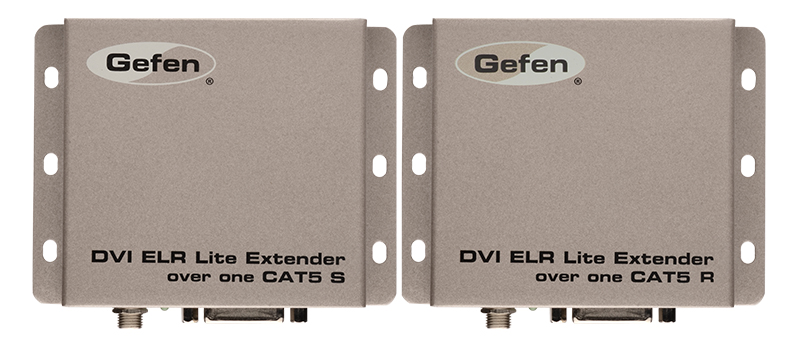

The DVI ELR Lite Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A cable, and up to 200 feet (60 meters) over one CAT-5e. This product is HDCP compliant. It uses Gefen’s ELR Lite implementation of HDBaseT® Lite™ technology, allowing the DVI source to be extended over a single CAT-5e or CAT-6 cable, reducing cable costs and facilitating simple and effective installation.
How It Works
Connect the included DVI cable to the computer or other DVI source and the Sender unit. Connect the Receiver unit to a Hi-Def display with another DVI cable. Use up to 230 feet (70m) of CAT-6A cable or up to 200 feet (60 meters) of CAT-5e to connect the Sender to the Receiver unit. Connect the included locking power supplies to the Sender unit and the Receiver units and plug the power supplies to available electrical outlets. Power On all connected source and display equipment.
The DVI ELR Lite Extender over one CAT5 allows the extension of any DVI source to a monitor or touch screen display, up to 230 feet (70 meters) using a CAT-6A cable, and up to 200 feet (60 meters) over one CAT-5e. This product is HDCP compliant. It uses Gefen’s ELR Lite implementation of HDBaseT® Lite™ technology, allowing the DVI source to be extended over a single CAT-5e or CAT-6 cable, reducing cable costs and facilitating simple and effective installation.
How It Works
Connect the included DVI cable to the computer or other DVI source and the Sender unit. Connect the Receiver unit to a Hi-Def display with another DVI cable. Use up to 230 feet (70m) of CAT-6A cable or up to 200 feet (60 meters) of CAT-5e to connect the Sender to the Receiver unit. Connect the included locking power supplies to the Sender unit and the Receiver units and plug the power supplies to available electrical outlets. Power On all connected source and display equipment.
Specifications
- Maximum Pixel Clock: 165 MHz
- Video Input Connector (Sender): (1) DVI-I, 29-pin, female (digital only)
- Video Output Connector (Receiver): (1) DVI-I, 29-pin, female (digital only)

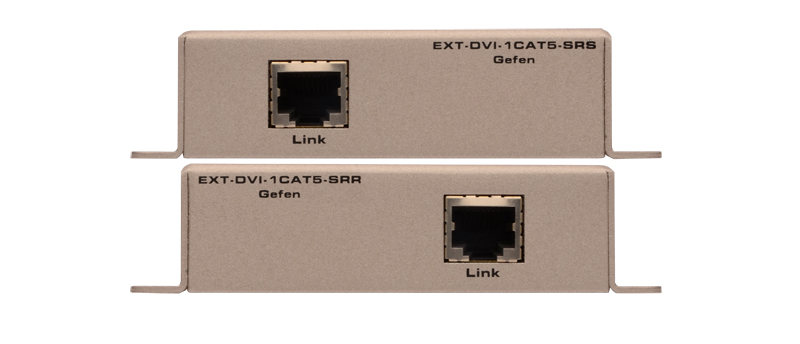

- Link Connector (Sender / Receiver): (1) RJ-45
- Internal/External EDID Selector (Sender): (1) DIP switch
- HPD Pass-Through Selector (Sender): (1) DIP switch
- HDCP Pass-Through Selector (Sender): (1) DIP switch
- Power Indicator (Sender/Receiver): (1) LED, blue
- Link Indicator (Sender/Receiver): (1) LED, green
- Power Supply (Sender / Receiver): 5V DC, Locking
- Power Consumption (Sender/Receiver): 10 W per unit (max.)
- Operating Temperature: 0 to +45°C
- Operating Humidity:0 to 90% RH, non-condensing
- Dimensions (W x H x D): 4.3" x 1" x 3.4" (110mm x 26mm x 86mm)
- Shipping Weight: 3 lbs (1.4 kg)
