MOXA IEX-402-SHDSL Series
Managed SHDSL Ethernet extender
- Automatic CO/CPE negotiation reduces configuration time
- Standard G.SHDSL data rate up to 5.7 Mbps, with up to 8 km transmission distance (performance varies by cable quality)
- Moxa proprietary Turbo Speed connections up to 15.3 Mbps
- Supports Link Fault Pass-Through(LFP) and Line-swap fast recovery
- Supports SNMP v1/v2c/v3 for different levels of network management
- Interoperable with Turbo Ring/Turbo Chain network redundancy
- Support Modbus/TCP protocol for device management and monitoring
- Compatible with EtherNet/IP and PROFINET protocols for transparent transmission
- Easy network management through web browser, Telnet/Serial console, Windows utility, MXview, and ABC-01
- IPv6 Ready
The IEX-402-SHDSL is an entry-level industrial managed Ethernet extender designed with one 10/100BaseT(X) and one DSL port. The Ethernet extender provides a point-to-point extension over twisted copper wires based on the G.SHDSL.bis standard. The device supports a data rate of up to 15.3 Mbps and a long transmission distance of up to 8 km.
The IEX-402-SHDSL series is designed for use in harsh operating environments. The DIN-rail mount, wide operating temperature range (-40 to 75°C), and dual power input make it ideal for installation in industrial applications.
To simplify configuration, the IEX-402-SHDSL uses CO/CPE auto negotiation. By factory default, the device will automatically assign CPE status to one of each pair of IEX devices. In addition, Link Fault Pass-through (LFP) and network redundancy interoperability enhance the reliability and accessibility of communication networks. Advanced managed and monitored functionality through MXview, including a virtual panel, improve the user experience for quick trouble shooting.
The IEX-402-SHDSL series is designed for use in harsh operating environments. The DIN-rail mount, wide operating temperature range (-40 to 75°C), and dual power input make it ideal for installation in industrial applications.
To simplify configuration, the IEX-402-SHDSL uses CO/CPE auto negotiation. By factory default, the device will automatically assign CPE status to one of each pair of IEX devices. In addition, Link Fault Pass-through (LFP) and network redundancy interoperability enhance the reliability and accessibility of communication networks. Advanced managed and monitored functionality through MXview, including a virtual panel, improve the user experience for quick trouble shooting.
Technology
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.1p for Class of Service
ITU-T G.991.2 for Single-pair high-speed digital subscriber line transceivers
Protocols
SNMPv1/v2c/v3, DHCP Client, TFTP, SNTP, HTTP, Telnet, Syslog, LLDP, Modbus/TCP
MIB
MIB-II
Flow Control
IEEE 802.3x flow control, back pressure flow control
Switch Properties
MAC Table Size
1K
Packet Buffer Size
512K
Interface
DSL Port
DSL Port: RJ-11(RJ-45 connector) or detachable 2-contact terminal block
RJ45 Ports
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Console Port
RS-232 (RJ45 connector)
DIP Switches
CO/CPE, SNR/SPEED, ANNEX B/ANNEX A, STD/TURBO
Button
Reset button
LED Indicators
PWR1, PWR2, FAULT, STATE, LINK/ACT, CO/CPE, 10/100 (TP port)
Power Requirements
Input Voltage
12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs
Input Current
0.36A @ 24 V
Overload Current Protection
Present
Connection
2 removable 2-contact terminal block
Reverse Polarity Protection
Present
Physical Characteristics
Housing
Metal, IP30 protection

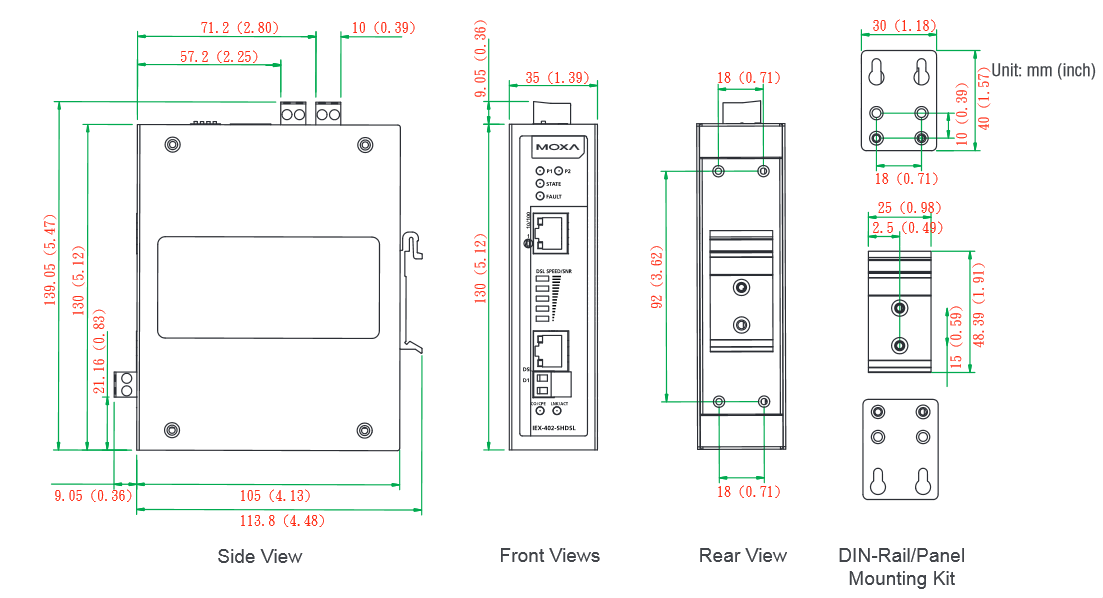

Dimensions
35 x 130 x 105 mm (1.38 x 5.12 x 4.13 in)
Weight
290 g
Installation
DIN-rail mounting, wall mounting (with optional kit)
Altitude
Up to 2000 m
Note Contact us for products guaranteed to function at higher altitudes.
Environmental Limits
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Safety
UL 508
EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA TS2 (IEX-402-VDSL2 only)
Rail Traffic
EN 50121-4
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
MTBF (mean time between failures)
Time
1,310,000 hrs
Database
Telcordia (Bellcore), GB
Ordering Information
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.1p for Class of Service
ITU-T G.991.2 for Single-pair high-speed digital subscriber line transceivers
Protocols
SNMPv1/v2c/v3, DHCP Client, TFTP, SNTP, HTTP, Telnet, Syslog, LLDP, Modbus/TCP
MIB
MIB-II
Flow Control
IEEE 802.3x flow control, back pressure flow control
Switch Properties
MAC Table Size
1K
Packet Buffer Size
512K
Interface
DSL Port
DSL Port: RJ-11(RJ-45 connector) or detachable 2-contact terminal block
RJ45 Ports
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Console Port
RS-232 (RJ45 connector)
DIP Switches
CO/CPE, SNR/SPEED, ANNEX B/ANNEX A, STD/TURBO
Button
Reset button
LED Indicators
PWR1, PWR2, FAULT, STATE, LINK/ACT, CO/CPE, 10/100 (TP port)
Power Requirements
Input Voltage
12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs
Input Current
0.36A @ 24 V
Overload Current Protection
Present
Connection
2 removable 2-contact terminal block
Reverse Polarity Protection
Present
Physical Characteristics
Housing
Metal, IP30 protection
Dimensions
35 x 130 x 105 mm (1.38 x 5.12 x 4.13 in)
Weight
290 g
Installation
DIN-rail mounting, wall mounting (with optional kit)
Altitude
Up to 2000 m
Note Contact us for products guaranteed to function at higher altitudes.
Environmental Limits
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
Safety
UL 508
EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA TS2 (IEX-402-VDSL2 only)
Rail Traffic
EN 50121-4
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
MTBF (mean time between failures)
Time
1,310,000 hrs
Database
Telcordia (Bellcore), GB
Ordering Information
Available Modules | |
IEX-402-SHDSL | Managed SHDSL Ethernet extender with 1 10/100BaseT(x) port and 1 DSL port, -10 to 60 °C operating temperature |
IEX-402-SHDSL-T | Managed SHDSL Ethernet extender with 1 10/100BaseT(x) port and 1 DSL port, -40 to 75 °C operating temperature |
