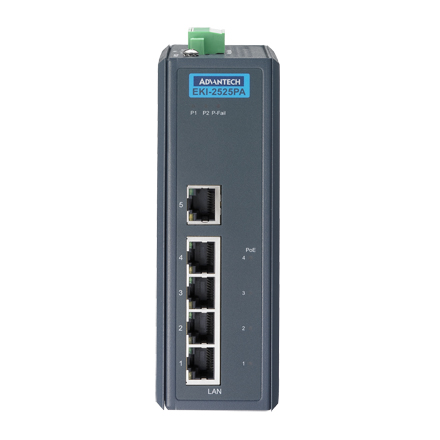

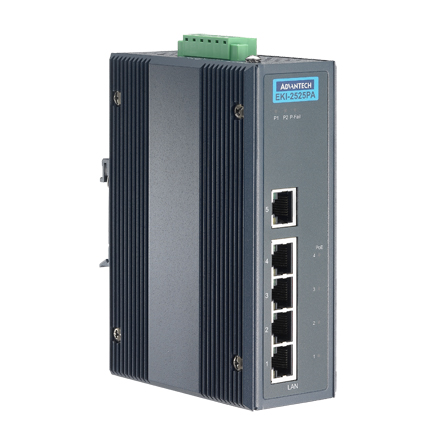

Advantech EKI-2525PA & Advantech EKI-2528PAI

prodgraf


5-port Industrial PoE Switch with 24/48 VDC Power Input



egenskaber


beskrivelse

The EKI-2525PA and EKI-2528PAI are a 5/8-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switches that supports 4 PoE ports which are classified as power source equipment (PSE). These PoE devices make centralized power supply possible and provide up to 15.4 watts of power per port. Advantech EKI PoE devices can be used to power IEEE802.3af compliant powered devices (PD) through Ethernet cable and eliminate the need for additional power wiring. Advantech EKI PoE devices come equipped with all the standard features of the EKI family. Furthermore, they offer a 24/48 VDC redundant power input design and is secured with a double protection mechanism; Power Polarity Reverse Protect and an Overload Current Resettable Fuse. Advantech EKI PoE devices come with compact metal housing that rates IP30 to help against from dusty industrial environments.



ProdGrafik

yderligere information

Specifications


Communications

Standard
IEEE 802.3, 802.3u, 802.3x, 802.3af

LAN
10/100Base-T (X)

Transmission Distance
Up to 100 m

Transmission Speed
Up to 100 Mbps


Interface

Connectors
PoE Ports: 4 (Ports 1 ~ 4)
Ethernet ports: 1 (Port 5 ~ Port 8), EKI-2525PA
Ethernet ports: 4 (Port 5 ~ Port 8), EKI-2528PAI
6-pin removable screw terminal (power & relay)

LED Indicators
P1, P2, P-Fail
10/100TX: Link/Activity, Duplex/Collision


Power

Power Consumption
EKI-2525PA: 62.5 W (Full load PoE)
EKI-2528PAI: 65 W (Full load PoE)

Power Input
24/48 V DC, redundant dual inputs

Power Output
15.4 W at 48 V (per PoE port)

Fault Output
1 Relay Output


Mechanism

Dimensions (W x H x D)
48.6 x 140 x 95 mm (1.91" x 5.51" x 3.74")

Enclosure
IP30, Metal shell with solid mounting kits

Mounting
DIN-rail, Wall


Protection

Reverse Polarity
Present

Overload current
Present


Environment

Operating Temperature
-10 ~ 60C (14 ~ 140F) (EKI-2525PA)

Wide temp. model
-40 ~ 75C (-40 ~ 167F) (EKI-2528PAI)

Storage Temperature
-40 ~ 85C (-40 ~ 185F)

Operating Humidity
5 ~ 95% (non-condensing)

Storage Humidity
0 ~ 95% (non-condensing)

MTBF
440,132 hours


Certification

Safety
UL508

EMI
FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8

Shock
IEC 60068-2-27

Freefall
IEC 60068-2-32

Vibration
IEC 60068-2-6



Ordering Information

EKI-2525PA

EKI-2528PAI



PDF

PDF beskrivelse Advantech EKI-2525PA & Advantech EKI-2528PAI Datasheet (370.2 kB)
