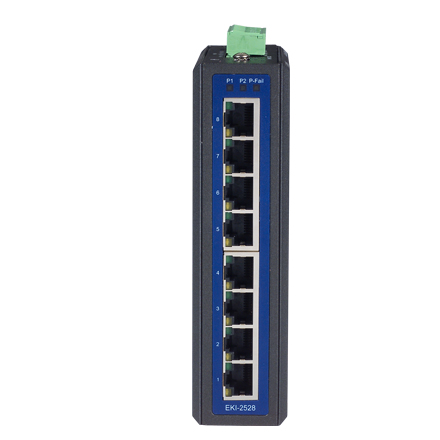

Advantech EKI-2528I

8-port Unmanaged Industrial Ethernet Switch w/ Wide Temp

Advantech EKI-2528I
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
  • Supports 10/100 Mbps Auto-Negotiation
  • Provides broadcast storm protection
  • Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
  • Supports redundant 12 ~ 48 VDC power input and P-Fail relay
  • Supports wide operating temperatures from -40 to 75°C
The EKI-2528I supports a Fast Ethernet solution, and provides a +12 ~ 48 VDC redundant power input design, and is secured with a double protection mechanism; Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring (devices will not be damaged if the plus and minus power cables are mixed, even continuing to operate normally. The later secures the system from overload currents; when the power supply turns normal, EKI-2528I will automatically get back to work. Each port of EKI-2528I has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI- 2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
ProdGrafik

Part Number            EKI-2528I


Environment

Operating Temperature
-40 ~ 75°C (-40 ~ 167°F)


I/O

Transmission Distance
Ethernet: up to 100 m

Transmission Speed
10/100Mbps


Power Supply

Power Input
2 x Unregulated 48 VDC

Power Connector
6-pin removable screw terminal


General

Ethernet Connectors
8 x RJ-45

Mounting
DIN-rail, Wall

Certifications
CE, FCC, UL/cUL 60950-1, Class I, Division 2


Interface

Ports Number
8



Ordering Information


EKI-2525
    5-port Ethernet Switch
EKI-2525I
    5-port Ethernet Switch w/ Wide Temp
EKI-2528
    8-port Ethernet Switch
EKI-2528I
    8-port Ethernet Switch w/ Wide Temp
