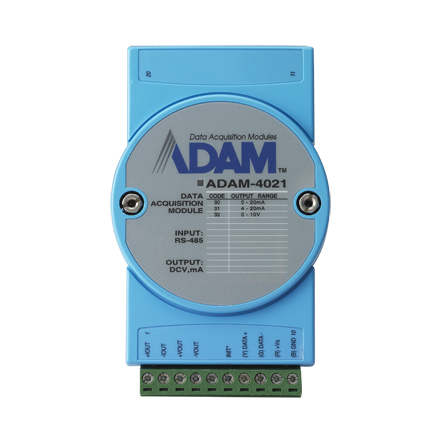

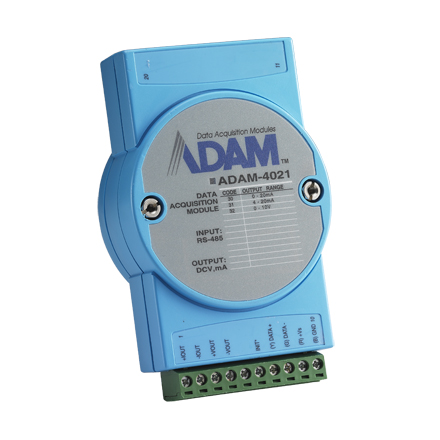

Advantech ADAM-4021

Analog Output Module

Advantech ADAM-4021
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Output type: mA, V
  • Output range: 0 ~ 20 mA, 4 ~ 20 mA, 0 ~ 10 V
  • Isolation voltage: 3000 V DC
Analog output module receives their digital input through an RS-485 interface from the host computer. The format of the data is either engineering units, twos complement hexadecimal format or percentage of full-scale range (FSR),depending on the module ’s configuration. It then uses its microprocessor-controlled D/A converter to convert the digital data into output signals. You get a true readback of the analog output signal from the unit ’s ADC, which independently monitors the output. You can specify slew rates and start up currents through the configuration software. The Analog Output Module can supply single-channel analog output in a range of voltages or currents. They protect your equipment from ground loops and power surges by providing opto-isolation of he D/A output and transformer based isolation up to 3000 VDC .
ProdGrafik
Display

LED Indicators
Power


Power Supply

Power Requirement
10~30 VDC


Analog Output Channels 1

Voltage Range 0~10 V

Current Output0~20 mA, 4~20mA


General

Watchdog Timer
System (1.6 second)

Connector
1 x plug-in terminal block (#14~22 AWG)

Temperature (Operating)
-10~70 °C (14~158 °F)

Humidity
5~95 %RH

Temperature (Storage)
-25~85 °C (-13~185 °F)

Interface
RS-485

Isolation Protection
3000 VDC

Communication Protocol
ASCII command

Communication Speed
Serial: From 1,200 to 115.2 k

Comm. Distance
Serial: 1.2 km

Data Flow Control
Yes



Ordering Information

Part Number Description
ADAM-4021-DE AO Module
Accessory
ADAM-4520-D2E RS-232 to RS-422/485 converter w/ isolated Rev. D2E
ADAM-4561-AE 1-port Isolated USB to RS-232/422/485 Converter
PCLS-ADAMVIEW32 HMI Software for ADAM I/O Products
PWR-242-AE DIN-rail Power Supply
PWR-243-AE Panel Mount Power Supply
PWR-244-AE Panel Mount Power Supply
