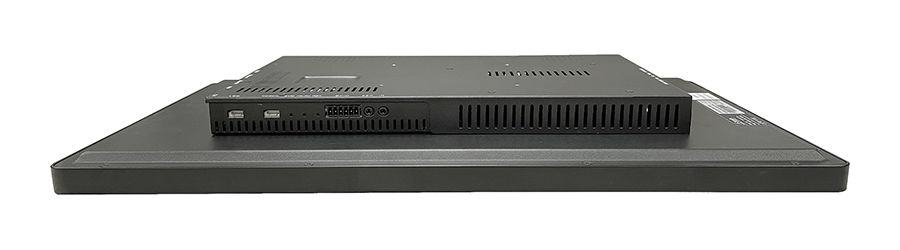

Bluefin - 21.5" BSBI (HS125) Finished Touch PoE

Designed to mount in any space out of the box.
Finished screens feature sleek all-metal housings with rounded corners and a black powder-coated finish.

• All-Metal Housings
• Black painted finish, ask us about custom colors!
• Micro-SD card security cover
• VESA mounting patterns

Specifications

SKU Number

• 20-3008-1032

DISPLAY

• 21.5'' LCD Screen
• Resolution: 1920x1080
• Max Brightness: 500 nits
• Viewing Angle: 89/89/89/89
• Contrast: 1000CR
• Optional: Capacitive Touch

SYSTEM

• BrightSign HS145 SoC
• Single 4K60p video decoding
• Dual HD video decoding
• 'Mainstream' HTML5 rendering

POWER

• Adapter Style: Mini Molex
• Adapter Output: 12V 3A
• Adapter SKU: 20-0150-0466
• Optional Power over Ethernet
  PoE 802.3bt (60W)

INPUT / OUTPUT

• 1x Micro-SD
• 1x USB 2.0
• Phoenix GPIO (4-pin Bi-Directional)
• 3.5mm RS232 Serial
• RJ45 Ethernet
• 2x Stereo 3W Speakers (Finished Units Only)
• 3.5mm Analog/Digital Audio Out
• Optional Wi-Fi

HOUSING / MOUNTING

• Size: 20.6'' x 12.5'' x 2.0''
• Weight: 12.5 lbs (5.65kg)
• Mounting: VESA 100x100mm M4x8mm
