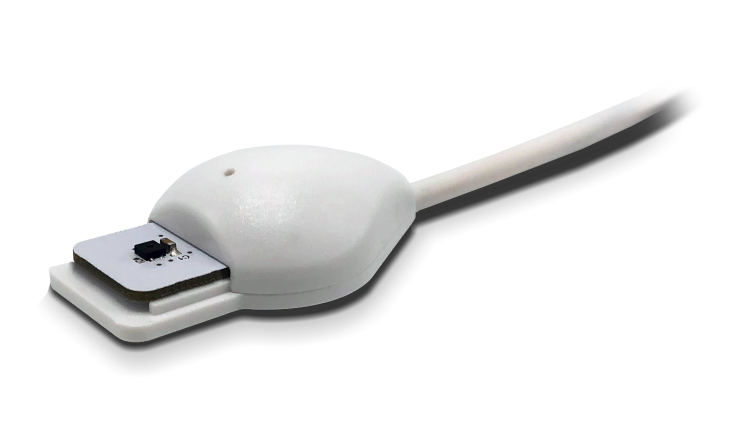

Nexmosphere XE- Temperature sensor

The XE- Temperature sensor detects temperature and humidity levels and can be adhered to heat sensitive objects. Triggers can be used to build a log file for warranty evaluation and to send messages to centralized systems to help protect installations. This simplifies compliance to a growing body of regulations within the digital signage industry.


Temperature and Humidity sensor

The sensor measures both the temperature and humidity of the environment in which it is placed, enabling monitoring of system health and compliance conditions.

The sensor can provide the current degrees Celcius and humidity percentage on request as well as send a trigger when the temperature or humidity is within a specific range.

• Temperature -25°C to +75°C, humidity sensor 1 – 99%
• Auto trigger when temperature or humidity is within a specific range
• Customizable trigger ranges to adapt the sensor to your specific application

X-talk

The XE Temperature sensor can easily be connected to any of the Nexmosphere Xperience controllers using the X-talk interface. All settings of the XE sensor are programmable on the Controller, enabling a seamless integration in your application.

• Plug and smile interface
• Compatible with any Nexmosphere Xperience controller

Benefits

• Unique cable connection (bottom feed or side feed) enables invisible cable installation
• Securely mounts on any flat surface, horizontal, vertical or angled
• Easy removable non-marking double-sided tape
• Status LED for visual feedback

SPECIFICATIONS

Mounting specifications


Mount the sensor as close as possible to the zone where you want to conduct the temperature and humidity measurements.



Thermal specifications


Operating temperature:
+10’C...+40’C
+50’F ... +104’F

Storage temperature:
-20’C...+50’C
-4’F ... +122’F



Electrical specifications


Operating voltage:
5V DC (via X-talk interface)

Power consumption:
50mA



Mechanical dimensions


LxWxH:
37,3 x 22 x 10 mm

Fixation:
Double-sided adhesive tape

Netto weight:
20g

ORDERING INFORMATION

Available Modules
XE-T50	Temperature and humidity sensor, 180cm cable, white
