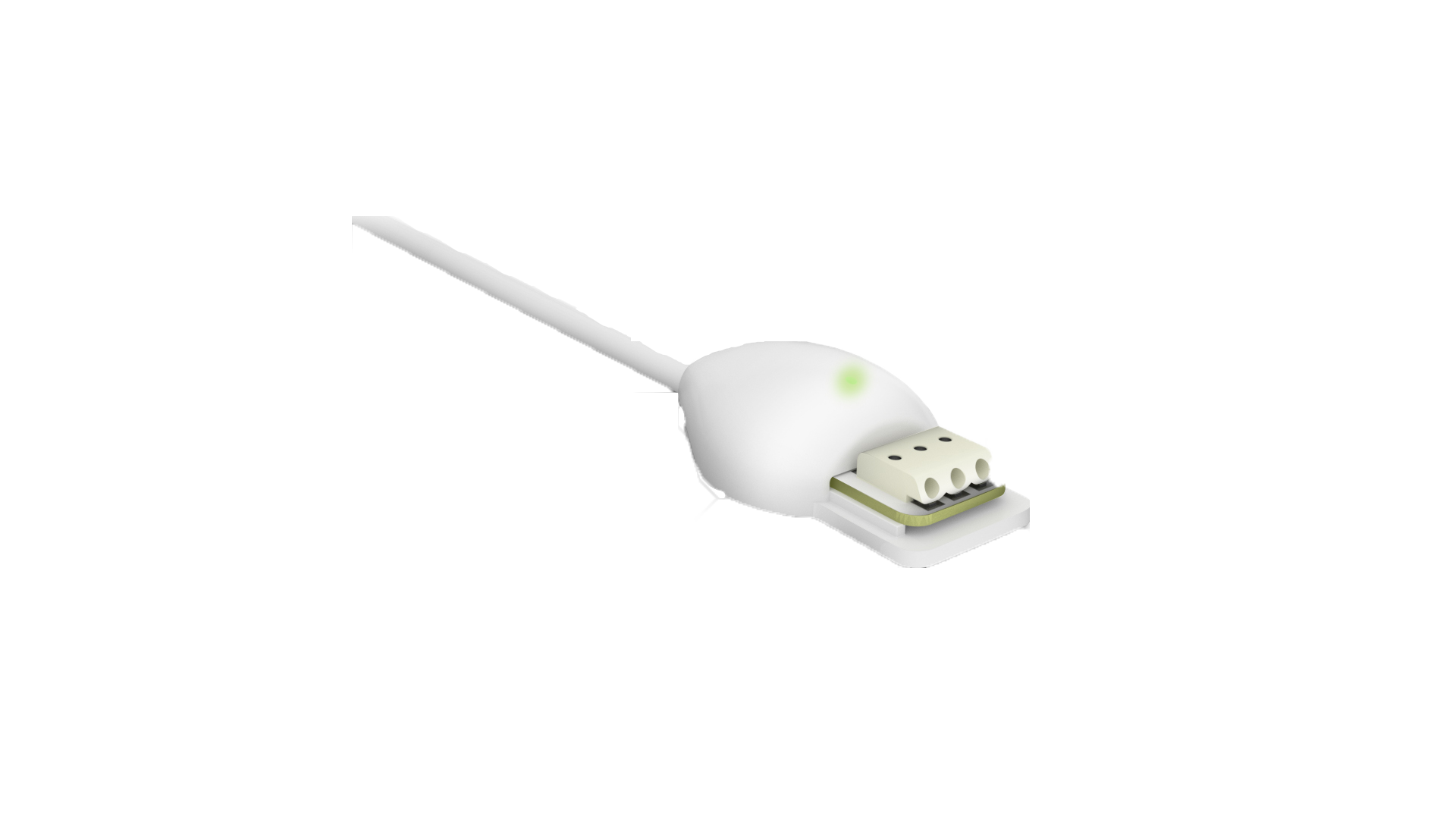

Nexmosphere X-Dot M0
Power supply;Interface a wide range
- Ultra small formfactor for easy integration in any application
- Interface a wide range of different sensors (IR/PIR)
- Power supply for on-board sensor
X-talk
The X-Dot can be easily connected to any of the nexmosphere Xperience controllers using the X-talk interface All settings of the X-dot are programmable on the Xperience controller side, enabling a seamless integration in your application
- Plug and smile interface
- Compatible with any nexmosphere Xperience controller
- Powered and programmable by the nexmosphere Xperience controller for ease of use
Motion Detection
Motion detectors can be xtremely valluable to trigger your Xperience to start at just the right moment. Use a long range sensor to start the presentation to come alive. Add a short range sensor to start a video as soon as the shopper comes close throwing light on personal retail experience
- Connect any market-available 5V sensor (max. 200mA)
- 3pin connection (ground: 5V;signal: 5V)
- Wiring size AWG 22-226; solide/stranded copper
- Wire strip length: 4-5,5mm
Benefits
- Unique cable connection (bottom feed or side feed) enables invisble cable installation
- Securely mounts on any flat surface, horizontal, vertical or angled
- Easy removable non-marking double sided tape
- Status LED for visual feedback (programmable/dimmable on the Xperiernce Controller
- ultiple data gathering information on the Xperience controller offer a unique insight into traffic
Specifications
Thermal Specifications
Operating Temperature: +10°C to +40°C/+50°F to +104°F
Storage Temperature: -20°C to +50°C/-4°F to +122°F
Electrical Specifications
Operating Voltage: 5VDC (via X-talk interface)
Power consumption: 200mA
Standards and Certifications
Compliant with IEC 60950-1(ed.2);am1;am2
CE certificate
US/CAN certification in progress
RoHS compliant
Miscellaneous
Packaging
Items per carton: 1,10 or 50 pcs
Mechanical Diemsions
LxWxH: 37,3 x 22 x 10mm
Fixation: Double sides adhesive tape
Ordering Information
Thermal Specifications
Operating Temperature: +10°C to +40°C/+50°F to +104°F
Storage Temperature: -20°C to +50°C/-4°F to +122°F
Electrical Specifications
Operating Voltage: 5VDC (via X-talk interface)
Power consumption: 200mA
Standards and Certifications
Compliant with IEC 60950-1(ed.2);am1;am2
CE certificate
US/CAN certification in progress
RoHS compliant
Miscellaneous
- Three cable lengths available (60/120/180cm)
- Custom colors and cable length available on request
- 1 year warranty (optional 3 year extended warranty available)
Packaging
Items per carton: 1,10 or 50 pcs
Mechanical Diemsions
LxWxH: 37,3 x 22 x 10mm
Fixation: Double sides adhesive tape
Ordering Information
Product ID | Description | Netto Weight | Quantity |
XDW-M04 | X-Dot Motion, interface only, 60cm cable | 13g | 1 pc |
XDW-M05 | X-Dot Motion, interface only, 120cm cable | 19g | 1 pc |
XDW-M06 | X-Dot Motion, interface only, 180cm cable | 22g | 1 pc |
