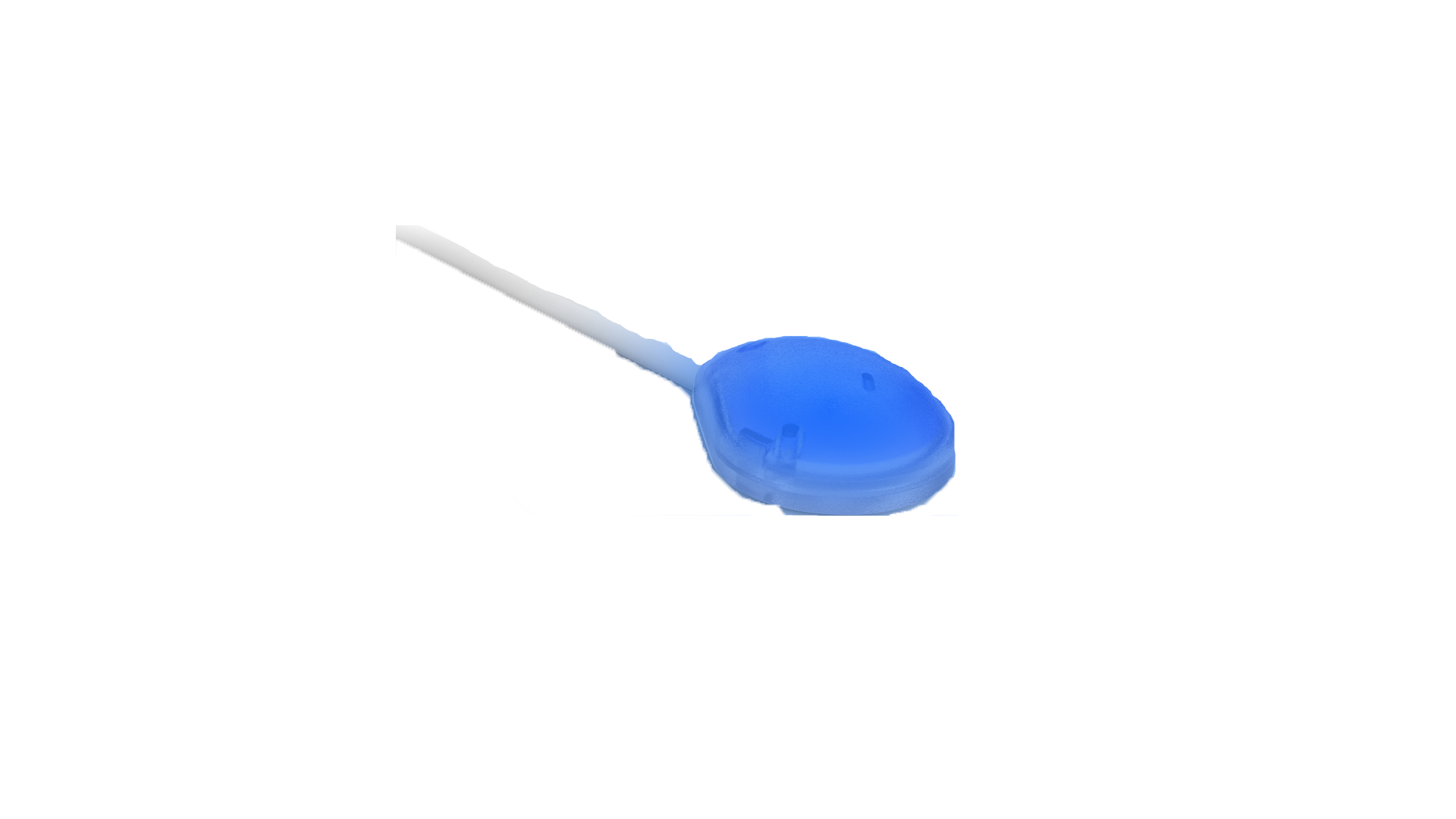

Nexmosphere X-Dot C5
Multi color LED;Wide angle optic;Ultra small form factor
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Ultra small formfactor for easy integration in any application
- High Brightness LED as visual indicator
- Wide angle optic for smooth illumination
- Multi color LED to fade from color to color
X-talk
The X-Dot can be easily connected to any of the Nemosphere Xperience controllers using the X-talk interface. All settings of the X-dot are programmable on the Xperience controller side, enabling a seamless integration in your application.
- Plug and Smile interface
- Compatible with any nexmosphere Xperience controller
- Powered and programmalbe by nexmosphere Xperience
controller for ease of use
LED Light
The high brightness LED offers a great visual guidance on the shelf space. The LED can be programmed at system startup any of the 16 milion desired colors using the Xperience controller. The onboard LED drivers enablesa smooth dimming from 100-0%. Choose from a wide pallet of different pulsing/glowing patterns to draw the attention to the right spot.
- Smooth flicker free 12 bit dimming control
- Any desired color programmable by Xperience Controller
- Slectable glowing/pulsing patterns at variable speed
Benefits
- Unique cable connection (bttom feed or side feed) enables invisible calbe installation
- Securely mounts on any flat surface, horizontal, vertical or angled
- Easy removable non-marking double sided tape
Specifictaions
Thermal Specifications
Operating Temperature: +10°C to +40°C/+50°F to +104°F
Storage Temperature: -20°C to +50°C/-4°F to +122°F
Electrical Specifications
Operating Voltage: 5VDC (via X-talk interface)
Power consumption: 70mA
Standars and Certifications
Compliant with IEC 60950-1(ed.2);am1;am2
CE certificate
US/CAN certification in progress
RoHS compliant
Miscellaneous
Mechanical Dimensions
LxWxH: 29 x 22 x 10mm
Fixation: Double sides adhesive tape
Ordering Information
Thermal Specifications
Operating Temperature: +10°C to +40°C/+50°F to +104°F
Storage Temperature: -20°C to +50°C/-4°F to +122°F
Electrical Specifications
Operating Voltage: 5VDC (via X-talk interface)
Power consumption: 70mA
Standars and Certifications
Compliant with IEC 60950-1(ed.2);am1;am2
CE certificate
US/CAN certification in progress
RoHS compliant
Miscellaneous
- Three Cable lengths available (60/120/180cm)
- Custom colors and cable length available on request
- 1 year warranty (optional 3 year extended warranty available)
Mechanical Dimensions
LxWxH: 29 x 22 x 10mm
Fixation: Double sides adhesive tape
Ordering Information
| Product ID | Description | Netto Weight | Quantity |
| XDW-C54 | X-Dot Color LED (RGB full color), 60cm | 12g | 1 pc |
| XDW-C55 | X-Dot Color LED (RGB full color), 120cm | 18g | 1 pc |
| XDW-C56 | X-Dot Color LED (RGB full color), 180cm | 24g | 1 pc |
