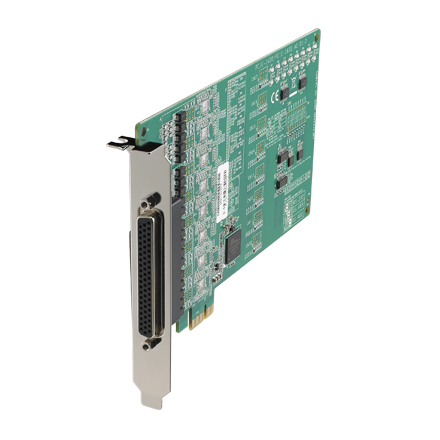

Advantech PCIE-1620

8-port RS-232 PCI Express Communication Card

Advantech PCIE-1620
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • PCI Express bus 2.0 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 8 x RS-232 or RS- 232/422/485 ports
  • XR17V358 UART with 256-byte FIFOs
PCIE-1620 is an 8-port RS-232, and PCIE-1622 is an 8-port RS-232/422/485 PCI Express communication cards that are compatible with the PCI Express x 1 specification. The cards provide eight EFT protected RS-232/422/485 ports up to 2,500 VDC, and have many functions such as high transmission speed of 921.6 kbps; either eight independent RS-232 ports or eight independent RS-232/422/485 ports which comes with high-performance PCIe958 UARTs with 128-byte FIFO to reduce CPU load. Thus, the PCIE-1620/ PCIE-1622 are especially suitable for making your system reliable in multitasking environments.
ProdGrafik

Environment

    Operating Humidity
    5 ~ 95 % RH, non-condensing

    Storage Temperature
    -25 ~ 85°C (-13 ~ 185°F)
    Operating Temperature
    -10 ~ 60° C (14 ~ 144° F)



General

    Bus
    PCIe

    Connectors
    1x Female DB62

    Power Consumption
    260 mA @ +3.3 V (typ.)

    Certifications
    CE, FCC, RoHS

    OS Support
    32-bit/64-bit Windows 7/8/10, and Linux

    Dimensions
    168 x 111 mm (6.6" x 4.4")



Communications

    Ports
    8

    Data Bits
    5,6,7,8

    FIFO
    256 bytes

    Parity
    None, Even, Odd, Mark and Space

    Speed
    50 bps ~ 921.6 kbps, any baud rate setting

    Stop Bits
    1,1.5,2

    Data Flow Control
    DTR/DSR,RTS/CTS, Xon/Xoff

    Communication Controller
    XR17V352

    Serial/CAN/GPIB/USB
    RS-232



Protection

    ESD Protection
    15KV (air), 8KV (contact)

    EFT Protection
    1 KV



Software

    Bundled Software
    ICOM Tools
