Advantech BB-UHR307

7 Port Isolated USB Hub

Advantech BB-UHR307
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • 4 kV Isolation
  • High Retention USB Connectors
  • ESD Protection – 15 kV Air
  • Rugged Metal Case
  • Wide Operating Temperature (-40 to 80°C)
  • USB 2.0
  • Panel Mount Brackets & DIN Rail clip
The UHR207 and UHR307 are Industrial Grade Seven Port USB Hubs. Model UHR307 includes 4 kV isolation. They are designed and tested to meet heavy industrial EMC standards. High retention USB connectors hold standard USB cables tight and are perfect for high vibration applications – requiring up to 3.2 lbs-force to disconnect them.

The Heavy Industrial EMC specifications allow these hubs to operate where standard office grade hubs fail – such as near variable frequency drives, motor control centers, welding, and other large electrical loads.

4 kV Isolation (UHR307) between the upstream and downstream USB ports protects expensive equipment from dangerous ground loops and helps ensure data integrity.

They are powered from an external 10 to 30 VDC source. Two power connectors are provided – terminal block or threaded / lockable barrel plug. Refer to ordering information for power supply recommendation. Each downstream port provides up to 500 mA of power to connected USB devices.


The BB-UHR307 is an Industrial grade seven port USB Hub. Model BB-UHR307 includes 4 kV isolation. They are designed and tested to meet heavy industrial EMC standards. High retention USB connectors hold standard USB cables tight and are perfect for high vibration applications – requiring up to 3.2 lbs-force to disconnect them.

ProdGrafik
USB INTERFACE

    Standards
    USB 1.1 & 2.0

    Upstream Port
    (1) Type B Female – High Retention

    Downstream Port
    (7) Type A Female – High Retention

    Speed
    12 Mbps – Model UHR207
    480 Mbps – Model UHR307
    Multi-transaction Translator, 1 per port

    Isolation
    UHR307 - 4 kV – Upstream to Downstream

    Surge Protection
    +/- 0.5 kV DC Ports, +/- 1 kV Signal Ports

    ESD
    15 kV Air, 8 kV Contact

    High Retention
    USB Ports require 15 N (3.2 lbs-force) withdrawal force using standard USB Cable


POWER

    Source
    External

    Power Connector
    Terminal Block or threaded barrel jack

    Input Voltage
    10 to 30 VDC

    Power
    30 Watts

    Power TB
    3 Position, 5.08 mm spacing, 28-12 AWG, Solid Wire

    Barrel Jack
    Locking / Threaded, 5.5 mm,Center Positive

    Downstream Power
    500 mA per port


INDICATORS

    Power
    Green LED

    Port Ready
    Green LED

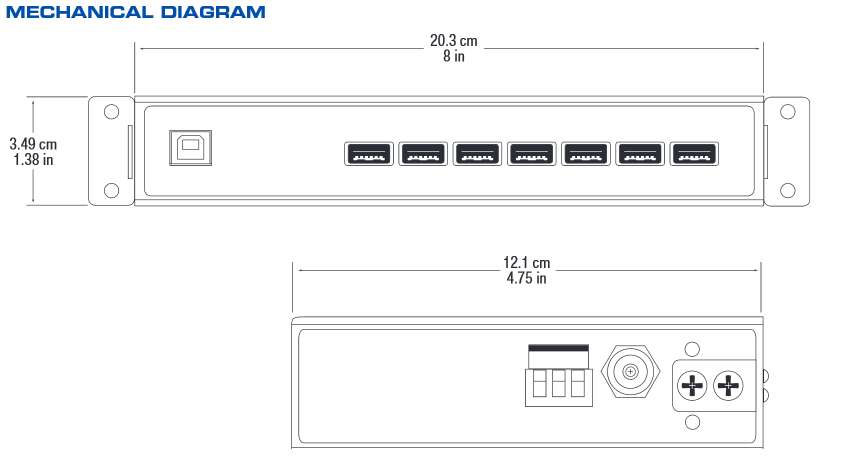

MECHANICAL

    Dimensions
    20.3x12.1x3.49 cm (8 x 4.75 x 1.38 in)

    Enclosure
    IP 30, Metal

    Weight
    1.4 lbs – 0.64 kilograms

    MTBF
    UHR307 - 143330 Hours
    UHR207 - 151173 Hours

    MTBF Calc. Method
    MIL 217F Parts Count Reliability


ENVIRONMENTAL

    Operating Temperature
    -40 to 80°C
    0 to 40°C when using wall plug power supply

    Storage Temperature
    -40 to 85°C

    Operating Humidity
    0 to 95% Non-condensing


APPROVALS/CERTIFICATIONS

    Emissions
    FCC Class B, CISPR Class B (EN55022)

    CE
    EN61000-6-2:2005     (Heavy Industrial)
    EN61000-4-2:2008     (ESD) +/- 8kV contact, +/-15 kV air
    EN61000-4-3:2006     (RI) 10 V/m, 80-1000 Mhz; 3 V/m 1.3 to 2.7 GHz
    EN61000-4-4:2004     (EFT Burst) +/- 2kV DC ports; +/- 1 kV signal ports
    EN61000-4-5:2005     (Surge) +/- 2 kV com; +/- 1 kV differential
    EN61000-4-6:2008     (CI) 10 Vrms, 0.15 to 80 MHz
    EN61000-4-8:2001     (Magnetic) 10 A/m, 50 Hz & 60 Hz

    Other
    IEC60068-2-27     (Shock) 50G Peak, 11 ms, 3 axes
    IEC60068-2-6      (Vibration) 140-500 Hz, 4G, 3 axes
    IEC60068-2-32     (Drop) 10 total drops from sides, corner, edges

    UL
    Class 1 Division 2 Listed File: E24545




ORDERING INFORMATION
Available Models USB SPEED
UHR307 Rugged 7 Port USB Hub, Isolated
UHR207 Rugged 7 Port USB Hub
ACCESSORIES
PS12VLB-INT-MED Power Supply 12VDC, Medical Grade - US, EU, UK Blades
MDR-20-24 DIN Rail Mount Power Supply 24VDC, 1.0A
USBAMBM-15F Type A Male to Type B Male, 15 ft. (4.6 m)
USBAMBM-3F Type A Male to Type B Male, 3 ft. (0.9 M) (Grey)
USBAMBM-6F Type A Male to Type B Male, 6 ft. (1.8 m) (Grey)
