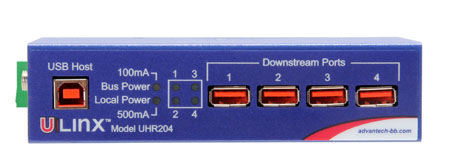

Advantech BB-UHR204

4-Port Industrial USB Hub

Advantech BB-UHR204
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • High Retention USB Connectors
  • Level 4 ESD Protection – 15kV
  • Rugged Metal Case – Panel & DIN Rail Mount
  • Wide Operating Temperature (-40 to 80°C)
  • USB 2.0 – High Speed (480 Mbps )
The UHR304 and UHR204 are Industrial Grade Four Port USB Hubs. They are designed and tested to meet heavy industrial EMC standards and are UL listed for Class 1 Division 2 hazardous locations. High retention USB connectors hold standard USB cables tight and are perfect for high vibration applications - requiring up to 3.2 lbs-force to disconnect them. Model UHR304 has 4 kV Isolation between the upstream and downstream USB ports to protect expensive equipment from dangerous ground loops and to help ensure data integrity.

The Heavy Industrial EMC specifications allow these hubs to operate where standard office grade hubs fail – such as near variable frequency drives, motor control centers, welding, and other large electrical loads. They are powered from an external 10 to 30 VDC source. The non-isolated UHR204 may also be powered from the USB bus. Two power connectors are provided - terminal block or threaded / lockable barrel plug. Refer to ordering information for power supply recommendation. Each downstream port provides up to 500 mA of power to connected USB devices. Refer to the specification table for additional information concerning downstream power. Panel Mount Brackets and a DIN Rail Clip are included.


The BB-UHR204 is an industrial grade four port USB Hub. They are designed and tested to meet heavy industrial EMC standards and are UL listed for Class 1 Division 2 hazardous locations. High retention USB connectors hold standard USB cables tight and are perfect for high vibration applications - requiring up to 3.2 lbs-force to disconnect them.

ProdGrafik

SPECIFICATIONS


General

    Supply Current
    500 mA max. per channel

    Ports
    Upstream x 1 Type B Female, High Retention; Downstream x 4 Type A Female, High Retention

    Bus
    USB 1.1/2.0



USB INTERFACE

    Standards
    USB 1.1 & 2.0

    Upstream Port
    (1) Type B Female – High Retention

    Downstream Port
    (4) Type A Female – High Retention

    Speed
    12 Mbps – Model UHR304
    480 Mbps – Model UHR204
    Multi-transaction Translator, 1 per port

    Isolation
    4 kV – Upstream to Downstream Model UHR304

    Surge Protection
    +/- 0.5 kV DC Ports, +/- 1 kV Signal Ports

    ESD
    15 kV Air, 8 kV Contact

    High Retention
    USB Ports require 15 N (3.2 lbs-force) withdrawal force using standard USB Cable



POWER

    Source
    External (Required for Model UHR304)
    Model UHR204 may be bus powered.
    See Downstream power limitations

    Power Connector

    Terminal Block or threaded barrel jack

    Input Voltage
    10 to 30 VDC

    Power
    UHR204 – 16 Watts (External Source)
    UHR304 – 16 Watts (External Source)

    Power TB
    3 Position, 5.08 mm spacing, 28-12 AWG, Solid Wire

    Barrel Jack
    Locking / Threaded, 5.5 mm,
    Center Positive

    Downstream Power
    500 mA per port
    100 mA per port when bus powered.



INDICATORS

    Power
    Green LED (External Power)
    Yellow LED (Bus Power)

    Port Ready
    Green LED

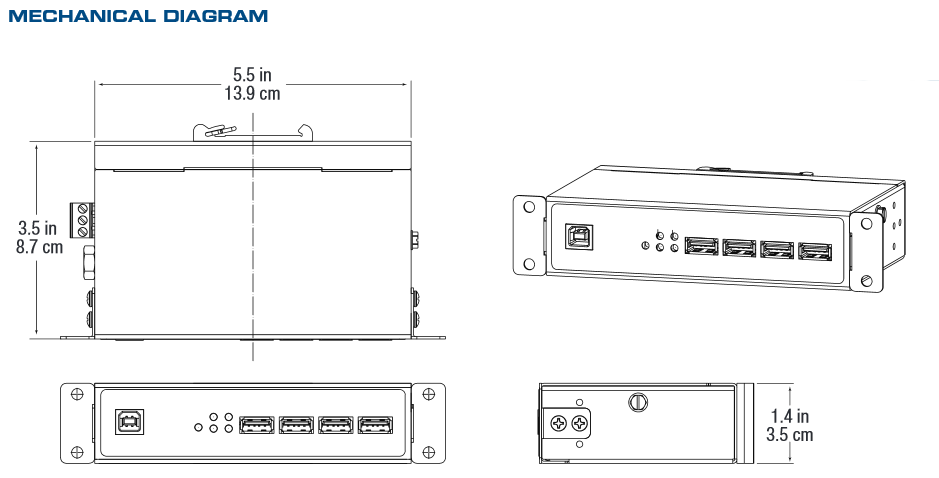

MECHANICAL

    Dimensions
    13.9 x 8.7 x 3.5 cm (5.5 x 3.5 x 1.4 in)

    Enclosure
    IP 30, Metal

    Weight
    1.4 lbs (635 g)

    MTBF UHR204
    211,773 Hours

    MTBF UHR304
    190,999 Hours

    MTBF Calc. Method
    MIL 217F Parts Count Reliability



ENVIRONMENTAL

    Operating Temperature
    -40 to 80°C

    Storage Temperature
    -40 to 85°C

    Operating Humidity
    0 to 95% Non-condensing



APPROVALS/CERTIFICATIONS

    Emissions
    FCC Class B, CISPR Class B (EN55022)

    CE
    EN61000-6-2:2005 (Heavy Industrial)
    EN61000-4-2:2008 (ESD) +/- 8kV contact, +/-15 kV air
    EN61000-4-3:2006 (RI) 10 V/m, 80-1000 Mhz; 3 V/m 1.3 to 2.7 GHz
    EN61000-4-4:2004 (EFT Burst) +/- 2kV DC ports; +/- 1 kV signal ports
    EN61000-4-5:2005 (Surge) +/- 2 kV com; +/- 1 kV differential
    EN61000-4-6:2008 (CI) 10 Vrms, 0.15 to 80 MHz
    EN61000-4-8:2001 (Magnetic) 10 A/m, 50 Hz & 60 Hz

    Other
    IEC60068-2-27 (Shock) 50G Peak, 11 ms, 3 axes
    IEC60068-2-6 (Vibration) 140-500 Hz, 4G, 3 axes
    IEC60068-2-32 (Drop) 10 total drops from sides, corner, edges

    UL
    Class 1 Division 2 Listed File: E245458




ORDERING INFORMATION
Available Models USB SPEED
UHR304 4 Port Industrial USB Hub, Isolated
UHR204 4 Port Industrial USB Hub
ACCESSORIES
PS12VLB-INT-MED Power Supply 12VDC, Medical Grade - US, EU, UK Blades
MDR-20-24 DIN Rail Mount Power Supply 24VDC, 1.0A
USBAMBM-15F Type A Male to Type B Male, 15 ft. (4.6 m)
USBAMBM-3F Type A Male to Type B Male, 3 ft. (0.9 M) (Grey)
USBAMBM-6F Type A Male to Type B Male, 6 ft. (1.8 m) (Grey)
