Advantech BB-WCD1TTJ

Wireless Mesh 802.15.4e Sensor; 2 J-Type Thermocouple inputs, Internal Antenna, Indoor

Advantech BB-WCD1TTJ
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Ultra low power 802.15.4e SmartMesh IP technology
  • Communicates with Spectre Network Gateway via highly scalable and reliable wireless mesh networks
  • Connect to industry standard analog or digital sensors
  • Wzzard app lets you read or configure the nodes using Android tablets and smart phones
  • MQTT and JSON IoT protocol to application platform

The Wzzard™ intelligent wireless sensor platform creates a complete, quick and easy connectivity stack between your sensors and your application, on your network or on the Internet. The platform uses Intelligent Edge Nodes, a wireless 802.15.4e SmartMesh IP network to transmit sensor data to the Spectre Network Gateway. The Spectre Network Gateway can connect to the Internet via wired connections or the cellular data networks and communicate with application platforms using the MQTT IoT protocol and JSON data formats.

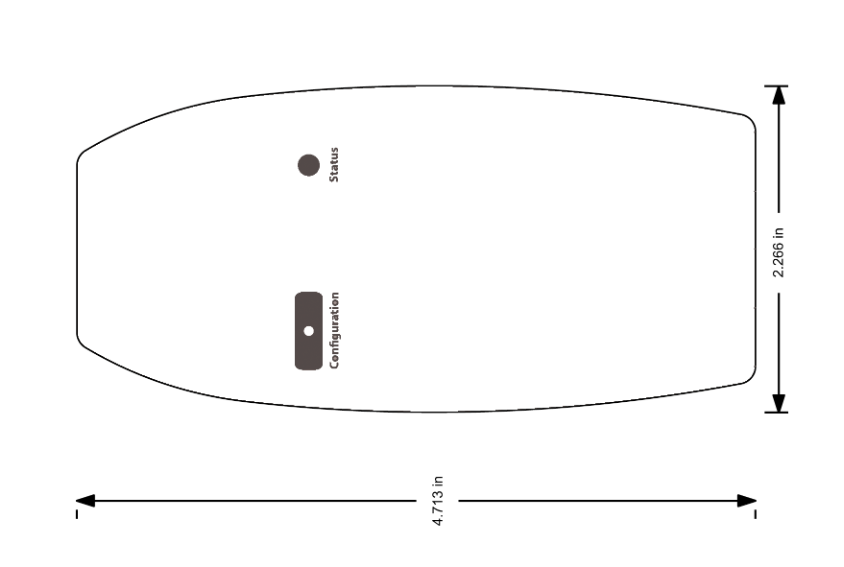

ProdGrafik

SPECIFICATIONS


POWER

    Internal
    (2) 3.6V 2400 mAH Lithium Thionyl Chloride AA batteries

    Battery Life
    Multiyear based on 1 min sensor sampling and reporting

    Optional External Input Voltage
    3.3 VDC +/- 5%, 0.2 W max



MECHANICAL

    Physical Connection
    3.5 mm terminal blocks

    Sensor Inputs
    Analog Input (0 - 5 VDC, 0 – 20 mA, 4 – 20 mA)
    Digital Input (0-48 VDC)
    Dgital Input Frequency 1-1K Hz
    Digital Input Counter
    Integrated Temperature
    Thermocouple J Type
    Digital Output (0-30 VDC)

    Mounting
    Velcro with dual lock adhesive
    Holster Mount

    Weight
    150 g (5.28 oz) with batteries installed



TECHNOLOGY

    Wireless
    802.15.4e, SmartMesh IP

    Protocols
    MQTT-SN, MQTT, JSON

    Bluetooth
    Bluetooth 4.0 Low Energy (LE)

    LED
    Network Connectivity



ENVIRONMENTAL

    Installation
    Indoor

    Operating Temperature
    0 to 65°C (32 to 149°F)

    Storage Temperature
    0 to 70°C (32 to 158°F)

    Operating Humidity
    0 to 95% Non-condensing



WIRELESS SECURITY

    Device Authentication
    128 bit AES-based encryption with multiple keys
    Message integrity check (MIC)
    Synchronized key changeovers
    Customized key rotation




SENSOR INTERFACE SPECIFICATIONS


DIGITAL INPUTS

    Voltage range
    0 – 48 VDC

    V IL
    0.97 V Maximum

    V IH
    1.8 V Minimum

    Pull up current
    32uA

    Type
    Sourcing (PNP)/Sinking (NPN) Software selectable input

    Isolation
    None



RATE/FREQUENCY INPUTS

    Frequency
    Does a 1 second measurement at each measurement/publish interval
    1-1K Hz (Accuracy + or – 1 Hz)
    Uses the falling edge or rising edge based on the Invert Enabled setting



COUNTER INPUT

    Channels
    Actively counts either the falling edge (Invert enabled) or rising edge (Invert disabled)
    Can use a multiplier to convert to a unit type or count
    2 selectable/shared with Digital inputs
    Rolls over at 999999.9



ANALOG INPUTS

    Input ranges
    0 - 5 VDC, 0 – 20 mA, 4 – 20 mA

    Resolution
    12 bit

    Input load resistance
    100 Mega ohm (0-5VDC), 250 ohm (0 - 20 ma)

    Accuracy
    Voltage: 0.10% of full scale reading, 0.20% max.
    Current: 0.11% of full scale reading, 0.24% max.



THERMOCOUPLE INPUT

    Types Supported
    J

    Ranges Supported Resolution
    Type J -210 to +1,200 °C
    0.25 °C

    Accuracy
    Typical +/- 2 °C
    +/- 6 °C over the temperature range of -0 to 65 °C



DIGITAL OUTPUTS

    Voltage range
    0 - 30 VDC

    Output Type
    Open Drain

    Output Current
    Not to be less than 100ma

    Protection
    Current Limit Protection

    Isolation
    None



CE

    EN55022 CISPR (EN55022) Class A
    EN 61000-6-1:2007 Generic immunity standard for residential, commercial and light industrial environments
    EN 61000-6-3:2006+A1:2011 Emission standard for residential, commercial and light-industrial environments
    EN61000-4-2 ESD +/- 8kV air, +/- 4kV contact
    EN61000-4-3 RFI
    EN61000-4-4 EFT
    EN61000-4-6 CI



FCC/IC

    FCC Part 15 Class A
    FCC - Part 15.247
    Industry Canada - RSS210



REGULATORY APPROVALS

    ROHS and WEEE Compliant





 Parameter  Conditions  Min  Typ  Max  Units
 Frequency Band    2400    2.4835  GHz
 Number of Channels      15
 Channel Separation     5    MHz
 Channel Clear Frequency  Where k = 11 to 25, as defined by IEEE 802.4.15    2405 + 5*(k-11)    MHz
 Modulation  IEEE 802.15.4 Direct Sequence Spread Spectrum (DSSS)
 Raw Data Rate      250    kbps
 Range  25 °C, 50% RH, +2dBi Omni-Directional Antenna,
Antenna 2 m above ground

 Indoor      100  m
 Outdoor      300  m
 Receiver Sensitivity  Packet Data Error Rate (PER) = 1%      -93  dBm
 Receiver Sensitivity  PER = 50%      -95  dBm
 Output Power  Delivered to a 50 Ù load      8  dBm




ORDERING INFORMATION
MODEL NUMBER ANALOG INPUT
BB- WCD1TA3 Wireless Mesh 802.15.4e; 3-Analog Inputs
BB-WCD1TD2 Wireless Mesh 802.15.4e; 2-Digital Inputs, 2 Digital Outputs
BB-WCD1TTJ Wireless Mesh 802.15.4e; 2 J-Type Thermocouple
ACCESSORIES
PART NUMBER DESCRIPTION
ACH2-DBAT-DP003 External Antenna, 2.4 GHz, 2 dBi, Dipole, RP-SMA, hinged, 3.8 dBi
ACH2-AT-DP011 Magnetic Mount Antenna, 2.4 GHz, 3.8 dBi
