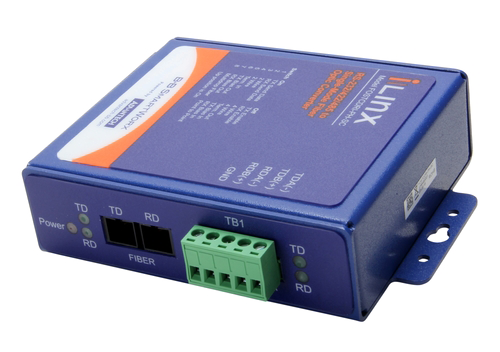

Advantech BB-FOSTCDRI-PH-SC

Heavy Industrial Serial to Single-Mode SC Fiber Optic Converter

Advantech BB-FOSTCDRI-PH-SC
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • IEEE-61850-3, IEEE-1613
  • Single Mode, SC Fiber
  • -40 to 85ˇăC Operating Temperature
  • Rugged, IP30 Metal Panel Mount Case
  • 50G Shock, 4G Vibration
  • 2kV Triple Isolation
The BB-FOSTCDRI-PH-SC series are premium heavy industrial serial to fiber optic converters. Designed for rugged industrial environments, they have been put through most exacting compliance testing in the industry. Meeting IEC 61850-3 and IEEE 1613 requirements, they are suitable for installation in electrical substations. These specifications are more stringent than NEMA TS1/TS2 requirements for transportation applications. Powerful isolation protects equipment and data from damaging ground loops and surges. Additional isolation on the power supply circuits adds a third degree of protection.

Packaged in a rugged IP30 metal case, these units convert serial signals to multi-mode or single-mode fiber optic. Bit-wise enabled circuitry automatically detects the data rate without setting a DIP switch.

In addition to direct point-to-point connectivity, operation in multi-drop mode is possible enabling serial devices to communicate with up to 31 others in a fiber ring. Supporting mixed standards, you can replace other converters and add EMI/RFI protection inherent to fiber optic communications.

ProdGrafik

SERIAL TECHNOLOGY

    Data Rate
    9.6 to 115.2 kbps

    RS-232

      Connector
      Removable terminal block

      Signals
      TD, RD, GND

    RS-422/485

      Connector
      5-position, removable terminal block

    RS-485, 2-wire
    Data A(-), Data B(+), GND

    RS-422/485, 4-wire
    TDA(-), TDB(+), RDA(-), RDB(+), GND

      Bias
      Built-in, switchable, 1.2K¦¸

      Termination
      Built-in, switchable, 120¦¸


ISOLATION

    Rating
    2KV RMS, 1 minute

    Surge Protection
    600 W peak power dissipation

    Clamping Time
    < 1 pico-second

    Lines Protected
    2-way (input, output lines)

    Method
    Optical


FIBER OPTIC TECHNOLOGY

    Type / Wavelength
    Multi-mode / 820 nm

    Output Power
    -16dBm min, -12dBm typical, -9dBm maximum

    Receive Sensitivity
    -24dBm min, -25.4dBm maximum

    Cable
    62.5/125 micro-meter

    Connector
    ST

    Data Rate
    9.6 to 115.2 kbps

    Maximum Distance
    4 km (2.5 mi)

    Idle State, FOSTCDRI
    Transmitter light ON

    Idle State, FOSTCDRI-INV
    Transmitter light OFF


INDUSTRIAL BUS

    Modbus
    ASCII/RTU


POWER

    Source
    External

    Input Voltage
    10 to 48 VDC (56 VDC maximum)

    Consumption
    0.5 W (typical), 1.3W (with termination)

    Connector
    2-position, removable terminal block, 24 to 14 AWG


TERMINAL BLOCKS

    Wire Size Accepted
    28 to 12 AWG

    Pitch
    5.08 mm

    Insulation Resistance
    ˇÝ 500 M¦¸ @ 500 VDC

    Maximum Torque
    5 Kg / cm


LED INDICATORS

    Power
    Red LED

    FO Receive
    Red LED

    FO Transmit
    Red LED


MECHANICAL

    Dimensions
    12.3 x 11.3 x 3.2 cm (4.9 x 4.5 x 1.3 in)

    Enclosure
    IP 20 plastic, 35 mm DIN mount

    Weight
    199.6 g (0.44 lbs)


ENVIRONMENTAL

    Operating Temperature
    -40 to +80 ˇăC (-40 to +176 ˇăF)

    Storage Temperature
    -40 to +85 ˇăC (-40 to +185 ˇăF)

    Operating Humidity
    0 to 95% non-condensing

    MTBF
    138904 hours

    MTBF Calculation Method
    Parts Count Reliability Prediction


APPROVALS / CERTIFICATIONS - FOSTCDRI

    UL Class 1 Division 2, Groups A, B, C, D
    File Number: E222870 (HAZLOC E245458)
    FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class B Emissions

    CE
    EN 61000-6-1: 2007 Generic Standards for Residential, Commercial and Light-Industrial Environments
    EN 61000-4-2: 2009 Electro-Static Discharge (ESD)
    EN 61000-4-3: 2006 +A1 +A2 +IS1 Radiated Field Immunity (RFI)
    EN 61000-4-4: 2012 Electrical Fast Transients-Burst Immunity (EFT)
    EN 61000-4-6: 2009 Conducted Immunity
    Download complete Declaration of Conformity at www.bb-elec.com


APPROVALS / CERTIFICATIONS - FOSTCDRI-INV

    UL 508, File Number: E222870
    FCC Part 15, CISPR, EN 55022: 2010 + AC:2011 Class A Emissions
    CE



ORDERING INFORMATION

MODEL NUMBER DESCRIPTION
BB-FOSTCDRI-PH-MC Serial to Multi-mode SC Converter
BB-FOSTCDRI-PH-MT Serial to Multi-mode ST Converter
BB-FOSTCDRI-PH-SC Serial to Single-mode SC Converter
