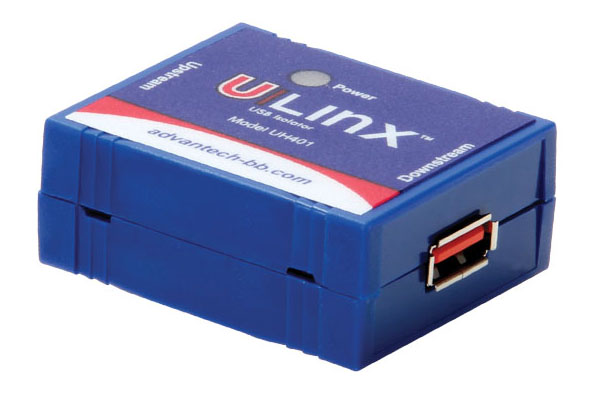

Advantech BB-UH401

1 Port High Retention USB 4KV Isolator

Advantech BB-UH401
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • 15 kV ESD Protection
  • -40 to 80°C Operating Temperature
  • High Retention USB Connectors
  • Ultra-Compact
  • USB Bus Powered
  • USB Cable Included
At just 50.8mm x 43.18mm x 20.32mm (2.0 x 1.7 x 0.8 inches), these litle isolators pack a powerful punch against electrical noise, surges and spikes - up to 4kV isolation. Protect expensive PCs and equipment from damaging electrical storms, power surges and other high EMI/RFI disturbances. This isolation barrier eliminates ground loops which are disruptive in measurement applications.
ProdGrafik

TECHNOLOGY

    Standards
    USB 1.1, 12 Mbps (UH401 & UH401-2KV) or 1.5 Mbps (UH401SL & UH401SL-2KV)
    Note: These devices are transparent to the operating system, require no software drivers and will not be enumerated in device manager.


INTERFACE

    USB Ports
    High Retention USB Type B (Upstream) , Type A (Downstream), Minimum withdrawal force of 15 Newtons (~3.4 lbs-force)

    LED Indicators
    Power from USB bus


POWER

    Input Voltage
    Standard USB bus power (5VDC)

    Downstream Power Provided
    Up to 100mA with full power upstream connection

    Isolation UH401-2KV
    2KV

    Isolation UH401SL-2KV
    2KV,

    Isolation UH401
    4KV

    Isolation UH401SL
    4KV


ENVIRONMENTAL

    Operating Temperature
    -40 to 80° C (-40 to 176° F)

    MTBF
    1,049,851 hours

    MTBF Calculation
    MIL 217F
    Parts count reliability prediction


MECHANICAL

    Enclosure
    IP30 plastic case

    Dimensions
    4.32 x 5.08 x 2.03 cm (1.7 x 2.0 x 0.8 in)


APPROVALS/CERTIFICATIONS

    Emissions
    FCC Class A, CISPR Class A (EN55022)

    CE
    EN61000-6-2:2005 (Heavy Industry)
    EN61000-4-2:2008 (ESD +/-8kV Contact, +/-15kV Air
    EN61000-4-3:2006 (RI) 10V/m, 80-1000MHz; 3V/m, 1.3 to 2.7 GHz
    EN61000-4-4:2004 (EFT Burst) +/-2kV DC ports; +/-1kV signal ports
    EN61000-4-5:2005 (Surge) +/-500V DC ports ; +/-1kV signal ports
    EN61000-4-6:2005 (CI) 10Vrms, 0.15 to 80 MHz
    EN61000-4-8:2001 (Magnetic) 10A/m, 50Hz & 60Hz





ORDERING INFORMATION
MODEL NUMBER USB SPEED ISOLATION
BB-UH401 Full (12 Mbps) 4 kV
BB-UH401SL Low (1.5 Mbps) 4 kV

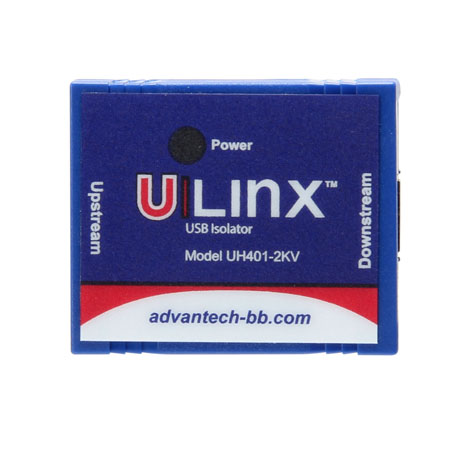

BB-UH401-2KV Full (12 Mbps) 2 kV
BB-UH401SL-2KV Low (1.5 Mbps) 2 kV
