Advantech BB IMC-470 Series

Standalone Media Converter, 1000Mbps

Advantech BB IMC-470 Series
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Designed with internal AC power
  • Supports diagnostic features including Link Loss and Fiber Alert
  • Some models provide two 10/100/1000Mbps copper ports
  • Some models support Link Fault Pass Through (LFPT)
  • Supports a variety of SFP modules
  • Supports multiple mounting options (desktop, DIN rail or wall-mount)

The IMC-450 and 470 series are standalone media converters with an optional internal power security device that make the connection between copper and fiber cables. It can be installed anywhere a network connection is required. In addition, these media converters feature in automatic link restoration. They also increase the scalability of a network by providing rate conversion ,distance extension and multiple types of fixed fiber connectors or open slots for small form-factor pluggable (SFP) connection.

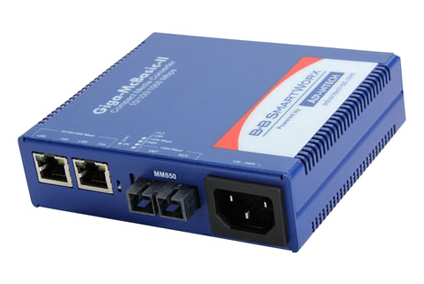

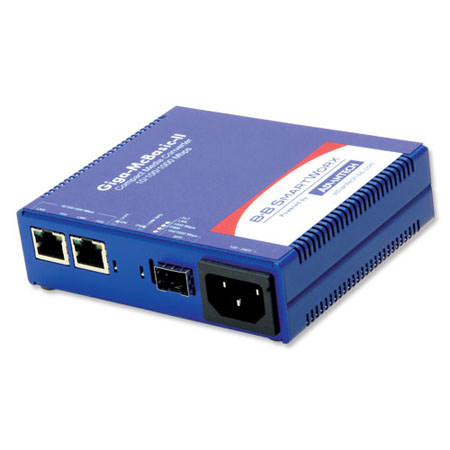

The IMC-450 and 470 support troubleshooting features such as LinkLoss and Fiber Alert which can be enabled/disabled by DIP switches. The diagnostic features allow the network administrator to quickly identify network faults. The IMC-470 series provides two 10/100/1000Mbps copper UTP ports and one fiber port, that is available in an SFP form factor, as well as for fixed-fiber in single-mode and multi-mode. The Link Fault Pass Through (LFPT) functionality allows network operators to determine a fault condition on the interfaces.
ProdGrafik

Specifications

    Technical

      IEEE 802.3u 100Base-TX, 100Base-FX or SX (IMC-450 series)
      IEEE 802.3ab 1000Base-T, 1000Base-LX or SX (IMC-470 series)
      Supports diagnostic LEDs
      Supports AutoCross, Link Loss and Fiber Alert
      Supports Auto Negotiation
      Supports jumbo frame up to 10000 bytes
      1 x RJ-45 connector(IMC-450 series)
      2 x RJ-45 connector(IMC-470 series)



    Power Input

      100-240 V AC, 50/60Hz, 1.0A (IMC-450 series)
      100-240 V AC, 50/60Hz, 7 watts maximum working power (IMC-450 series)



    Environment

      Operating Temperature
      0 to +50 °C (+32 to +122 °F) (IMC-450 series)
      -10 to +50 °C (+14 to +122 °F) (IMC-470 series)

      Storage Temperature
      -20 to +70 °C (0 to +160 °F) (IMC-450 series)
      -35 to +75 °C (-31 to +167 °F) (IMC-470 series)

      Operating Humidity
      5 ~ 95% (non-condensing)
      0 ~ 10,000 ft. altitude

      MTBF
      0.38 million hours (IMC-450 series)
      1.8 million hours (IMC-470 series)



    Mechanical

      Dimensions (H x W x D)
      4.20 x 12.17 x 11.64 cm (1.64 x 4.75 x 4.9 in) (IMC-450 series)
      2.03 x 10.16 x 10.16 cm (0.80 x 4.0 x 4.0 in) (IMC-470 series)

      Weight
      0.58 kg (1.3 lb) (IMC-450 series)
      0.3kg (0.7lb) (IMC-470 series)



    Certifications

      CE, FCC Class A, UL/cUL, CSA




Ordering Information

    Media Converter with US power cord


Part Number Also
Known
As
Ethernet Speed Optical Mode Wavelength Distance Optical
Connector
Ethernet
Connector
IMC-450-M8-US 855-10930 100 Mbps Multi-mode 850 nm 2 km SC 1 x RJ45
IMC-450-M8ST-US 855-10929 100 Mbps Multi-mode 850 nm 2 km ST 1 x RJ45
IMC-450-MM-US 855-10928 100 Mbps Multi-mode 1300 nm 5 km SC 1 x RJ45
IMC-450-MMST-US 855-10927 100 Mbps Multi-mode 1300 nm 5 km ST 1 x RJ45
IMC-450-SE-US 855-10932 100 Mbps Single-mode 1310 nm 40 km SC 1 x RJ45
IMC-450-SEST-US 855-10931 100 Mbps Single-mode 1310 nm 40 km ST 1 x RJ45
IMC-450-SL-US 855-10934 100 Mbps Single-mode 1310 nm 80 km SC 1 x RJ45
IMC-450-SLST-US 855-10933 100 Mbps Single-mode 1310 nm 80 km ST 1 x RJ45
IMC-470-MM-US 856-30601 10/100/1000 Mbps Multi-mode 850 nm 550 m SC 2 x RJ45
IMC-470-M1-US 856-30602 10/100/1000 Mbps Multi-mode 1300 nm 2 km SC 2 x RJ45
IMC-470-SM-US 856-30603 10/100/1000 Mbps Single-mode 1310 nm 10 km SC 2 x RJ45
IMC-470-SE-US 856-30604 10/100/1000 Mbps Single-mode 1310 nm 40 km SC 2 x RJ45
IMC-470-SFP-US 856-30600 10/100/1000 Mbps Various Various Various SFP 2 x RJ45



    Media Converter w/o power cord


Part Number Ethernet Speed Optical Mode Wavelength Distance Optical
Connector
Ethernet
Connector
IMC-450-M8 100 Mbps Multi-mode 850 nm 2 km SC 1 x RJ45
IMC-450-M8ST 100 Mbps Multi-mode 850 nm 2 km ST 1 x RJ45
IMC-450-MM 100 Mbps Multi-mode 1300 nm 5 km SC 1 x RJ45
IMC-450-MMST 100 Mbps Multi-mode 1300 nm 5 km ST 1 x RJ45
IMC-450-SE 100 Mbps Single-mode 3 1310 nm 40 km SC 1 x RJ45
IMC-450-SEST 100 Mbps Single-mode 3 1310 nm 40 km ST 1 x RJ45
IMC-450-SL 100 Mbps Single-mode 3 1310 nm 80 km SC 1 x RJ45
IMC-450-SLST 100 Mbps Single-mode 3 1310 nm 80 km ST 1 x RJ45
IMC-470-MM 10/100/1000 Mbps Multi-mode 850 nm 550 m SC 2 x RJ45
IMC-470-M1 110/100/1000 Mbps Multi-mode 1300 nm 2 km SC 2 x RJ45
IMC-470-SM 10/100/1000 Mbps Single-mode 1310 nm 10 km SC 2 x RJ45
IMC-470-SE 10/100/1000 Mbps Single-mode 1310 nm 40 km SC 2 x RJ45
IMC-470-SFP 10/100/1000 Mbps Various Various Various SFP 2 x RJ45



Accessories

Part Number Description
     895-39226      Rackmount Bracket


    * SFP fibers sold separately – available at www.advantech.com
