Advantech BB IMC-711-AC-US

Chassis for Modular Media Converters

Advantech BB IMC-711-AC-US
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Designed for a variety of media and mode conversion modules
  • Supports a wide range of protocols and future-proof upgrade paths
  • High flexibility for module combinations for different environments

also known as IE-MediaChassis 850-13100

The IMC-71x series provides conversion of Ethernet-to-fiber and a variety of networking technologies. It enables network operators to drastically reduce the capital and operational expenses by providing all copper-to-fiber and multi-mode to single-mode conversions and network distance extensions. This modular approach allows network operators to inexpensively change protocols by simply changing the module rather than the entire unit. With AC or DC power options, it is a economical way to overcome a variety of media and mode conversion challenges.

The IMC-713/716/719 series has the highest port density in the industry -- along with a robust design, hot-swappable architecture, SNMP management via iView2, and redundant power supplies for fault tolerance, which a diverse range of applications, using a variety of protocols, require. The temperature controlled fans in the IMC-713/716 chassis activate only when the chassis reaches a certain temperature, thereby extending the life of the fans. The fans on the IMC-719 series can be remotely controlled via SNMP.
ProdGrafik

Product Specifications

    Mechanism

      Number of Slot
      1

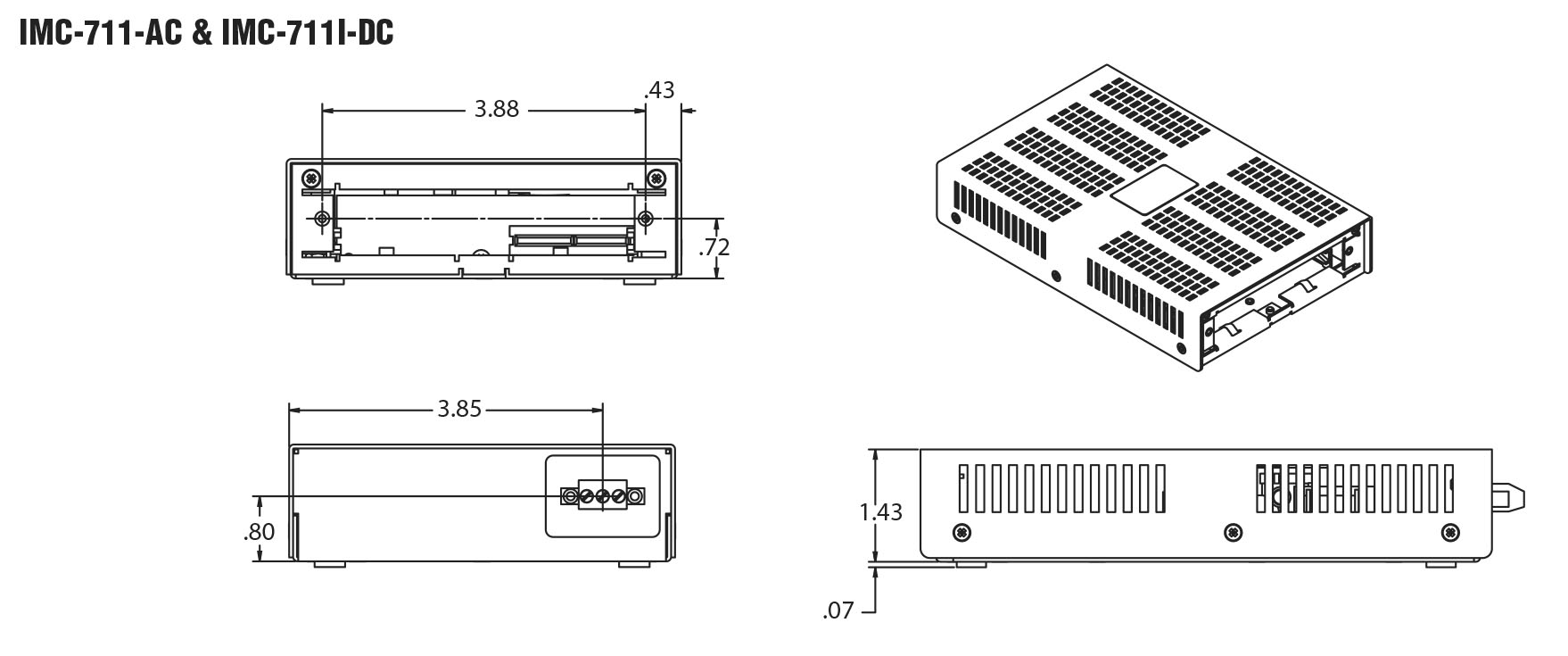

      Dimensions (W x H x D)
      12.03 x 3.81 x 18.54 cm (4.74 x 1.5 x 7.3 in.) x

      Weight
      0.73 kg (1.6 lbs)



    Power

      Power Input (AC)
      100 ~ 240 VAC, 50~60Hz, 1.0A



    Environment

      Temperature (Operating Range)
      0 ~ 50 °C (32 ~ 122 °F)

      Temperature (Storage Range)
      -40 ~ 85°C (-40 ~ 185°F) x

      Humidity (Operating Range)
      5 ~ 95% (non-condensing)



    Certification

      Safety
      UL/cUL

      EMC
      CE, FCC Class A, CSA



Ordering Information

    Modular Media Converter Chassis


Part Number Also Known As Slot Extended
Temperature
Power Input
IMC-711-AC-US 850-13100 1 - AC
IMC-711-AC - 1 - AC
IMC-711I-AC-PS 850-33100 1 Yes AC
IMC-711I-DC 850-32105 1 Yes DC
IMC-712-AC-US 850-13101 2 - AC
IMC-712-AC - 2 - AC
IMC-712I-AC-US 850-13106 2 Yes AC
IMC-712I-AC - 2 Yes AC
IMC-712I-DC 850-32106 2 Yes DC


    * Power Modules sold separately – available at www.advantech.com



    SNMP-Manageable Modular Media Converter Chassis


Part Number Also Known As Slot Power Input
IMC-713-AC-US 850-10949-AC 3 Single AC
IMC-713-AC - 3 Single AC
IMC-713-2AC-US 850-10949-2AC 3 Dual AC
IMC-713-2AC - 3 Dual AC
IMC-713-DC 850-10949-DC 3 Single DC
IMC-713-2DC 850-10949-2DC 3 Dual DC
IMC-713-ACDC-US 850-10949-ACDC 3 1 x AC + 1 x DC
IMC-713-ACDC - 3 1 x AC + 1 x DC
IMC-716-AC-US 850-10953-AC 6 Single AC
IMC-716-2AC-US 850-10953-2AC 6 Dual AC
IMC-716-DC 850-10953-DC 6 Single DC
IMC-716-2DC 850-10953-2DC 6 Dual DC
IMC-719 605-10144-10 20 -
IMC-719-2AC-US 605-10144-2AC 20 Dual AC
IMC-719-2AC - 20 Dual AC
IMC-719-2DC 605-10145-2DC 20 Dual DC
IMC-719-2AC-A - 20 Dual AC Module
IMC-719-2DC-A - 20 Dual DC Module




    Accessories


Part Number Description
806-39105 DIN Rail Clip (For IMC-711I-AC)
895-39226 Rackmount Bracket (For IMC-711 & IMC-712 series)
895-39227 Wall-mount Bracket (For IMC-711 & IMC-712 series)
895-39229 Wall-mount Bracket (For IMC-711I & IMC-712I series)
806-39125-AC Spare AC Power Supply (125W) (For IMC-716)
806-39125-DC Spare DC Power Supply (125W) (For IMC-716)
605-10144-AC Spare AC Power Supply (300W, 100-240V AC) (For IMC-719)
605-10145-DC Spare DC Power Supply (300W, -48V DC) (For IMC-719
