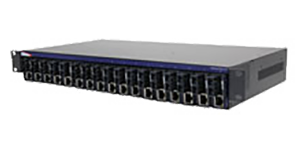

Advantech BB IMC-318I

Hardened Centralized Powered Media Converter Chassis,
Rackmount, 18-slot Chassis

Advantech BB IMC-318I
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Features internal AC power
  • Supports an extended operating temperature range
  • Modular design, hot-swappable
  • 18-slot chassis

formerly BB-850-13086

The IMC-318I centralize-powered chassis is designed with a modular enclosure that takes up to 18 miniature media converters (the IMC-350/370 series). It provides high port density mounting and elevates much power efficiency. By easily and effectively connecting multiple converters in one chassis, the IMC-318I eliminates the mass needs of AC power adapters and thus saves much network device construction space.
ProdGrafik

Specifications


    Technical

      18 slot chassis that can house miniature media convert IMC-350/370 series

      Single AC power supply included

      Fits into a 19” rack ; table top mounting



    Power AC

      100-240 VAC, 1.5A



    MTBF

      MTBF
      150,422 hours



    Environment

      Operating Temperature
      -25 to +70 °C (-13 to +158 °F)

      Storage Temperature
      -25 to +70 °C (-13 to +158 °F)

      Operating Humidity
      5 ~ 95% (non-condensing)
      0 ~ 10,000 ft. altitude



    Mechanical

      Dimensions (H x W x D)
      5.8 x 43.10 x 23.5 cm (2.30 x 16.97 x 9.25 in)

      Weight
      4.5 kg (10.0 lb)



    Certifications

      CE, FCC Class A, UL/cUL, CSA





Ordering Information

    Part Number Also Known As Slot Power Cord
    IMC-318I - 18 -
    IMC-318I-US 850-13086 18 US
