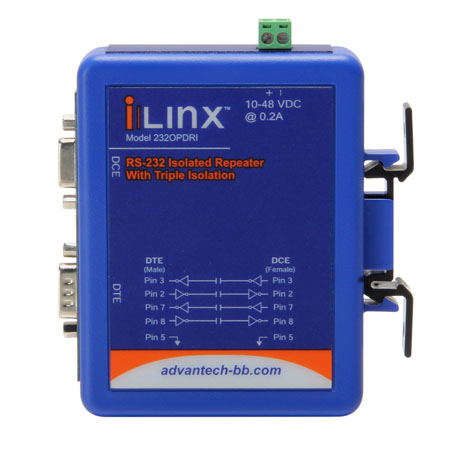

Advantech BB-232OPDRI
Triple Isolated RS-232 DIN Rail Repeater
- Supports Data Rates up to 115.2 Kbps
- Wide -40 to 80°C Temperature Range
- 10 to 48 VDC Input Power Range
- 2000 V 3-Way Optical Isolation
- UL Class 1 Division 2 Listed
Our RS-232 optical isolators are ideally suited for many applications – from “control panel” installations requiring DIN Rail mounting to “in-line” or “bump in the cable” installations found in laboratory or retail systems. They provide 2 kV of isolation to protect your equipment as well as a variety of connector options. If you require extended temperature ranges and extra rugged construction, our industrial products will fit the bill. They have advanced EMC and emissions specifications that run the gamut from light industrial EN 61000-6-1 to heavy industrial EN 61000-6-2 with IEEE 1613. We also offer versions with UL 508 and UL Class 1 Division 2. Check out the specs on each product and select the optical isolator that is best suited for your needs.
SERIAL TECHNOLOGY
- Serial Connector
DB9 F (DCE), DB9 M (DTE)
Data Rate
Up to 115.2 Kbps
Isolation
2 KV RMS, 1 minute
POWER
- Source
External
Power Connector
2 Position Removable Terminal Block
Input Voltage
10 to 48 VDC (56 VDC Maximum)
Power Consumption
0.6 W typical
TERMINAL BLOCKS
- Wire Size Accepted
28 to 12 AWG, Copper wire only.
Pitch
5.08 mm
Insulation Resistance
≥500 MΩ @ 500 VDC
Maximum Torque
5 Kg / cm
INDICATORS
- Power
Red LED
TD / RD
Red LED TD, RD, CTS, RTS
MECHANICAL
- Dimensions
12.3 x 11.3 x 3.2 cm (4.9 x 4.5 x 1.3 in)
Enclosure
IP 30 Plastic, 35 mm DIN Mount
Weight
0.43 lbs (195 g)
MTBF
177250 Hours
MTBF Calc. Method
Parts Count Reliability Prediction
ENVIRONMENTAL
- Operating Temperature
-40 to 80°C (-40 to 176°F)
Storage Temperature
-40 to 85°C (-40 to 185°F)
Operating Humidity
0 to 95% Non-condensing
REGULATORY
- Approvals
FCC, CE
UL C1 D2, File Number E245458
UL 508, File Number E222870
