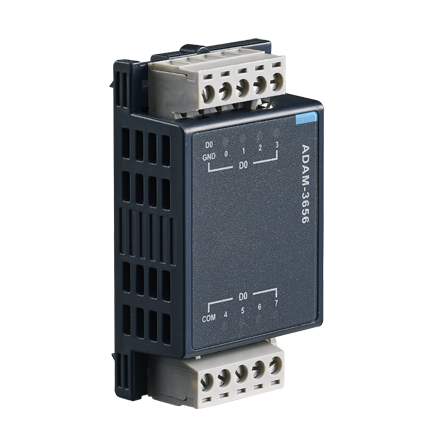

Advantech ADAM-3656

8-ch Digital Output Module

Advantech ADAM-3656
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Supports open collector (Sink) output type
  • Rated voltage : 8 ~ 30 VDC
  • Rated current : 200 mA (max load)
  • Over voltage protection : +40 VDC
  • Pulse output frequency : 1 KHz
  • Opto-isolator response time : 150 us (max)
  • Isolation voltage : 2000 VDC
  • -40 ~ 70°C operating temperature
ADAM-3656 is a 8-ch digital output expansion module for ADAM-3600-C2G intelligent RTU.
ProdGrafik


Specifications


General


Power Consumption
1W (Max.)

Certification
CE/FCC, C1D2

Digital Output


Channel
8

Output Type
Open Collector (Sink)

OC Output
Rated Voltage 8 ~ 30 V
DC Rated Current 200mA (max load)

Over Voltage Protection
+40 V DC

Pulse Output Frequency
1 KHz

Opto-isolator Response time
150 us (max)

Isolation Voltage
2000 V DC

Environment


Operating Temp.
-40 ~ 70°C

Storage Temp.
-40 ~ 85°C

Humidity
5 ~ 95% (no-condensation)
