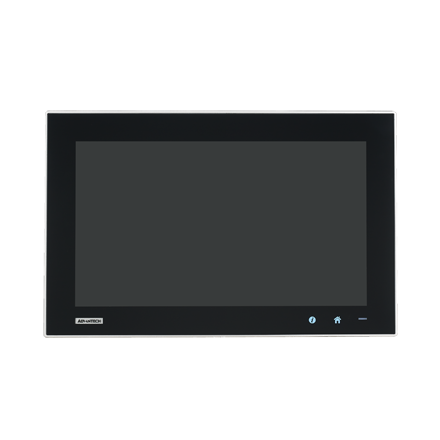

Advantech TPC-1581WP

15.6 WXGA TFT LED LCD Intel® 4th Generation Core i3 Multi-Touch Panel Computer

Advantech TPC-1581WP
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Industrial 15.6 HD TFT LCD with 50K Lifetime LED Backlight
  • Intel 4th Generation Core i3-4010U with 4GB DDR3L SDRAM
  • 16:9 Wide Screen with PCT Multi-Touch
  • IP66 Approved Front Protection & Panel Mounting
  • Built-in Intelligent Home key and i Key for Intuitive UI
  • Front LED Indicator to Show Operating Status
  • Diverse system IO and Isolated Digital IO by iDoor Technology
  • Supports Fieldbus Protocol by iDoor Technology
  • 3G/GPS/GPRS/WiFi Communication by iDoor Technology
  • Supports MRAM by iDoor Technology
  • Chassis Grounding Protection
  • HDMI and Audio Multimedia Support
  • Anti-scratch surface: 7H hardness
With growing up in Multi-Touch technology, the TPC-1581WP features Intel 4th Generation Core i3-4010U 1.7GHz processor with 4GB DDR3L SDRAM provides the high computing performance. To enhance reliability and durability, built-in 7H hardness anti-scratch surface on high resolution 15.6" HD display with Multi-Touch in 16:9 format. Through the Mini-PCIe slot, Advantech iDoor technology can provide more I/O connectors, Isolated Digital IO, the Fieldbus Protocol, 3G/GPS/GPRS/WiFi Communication and MRAM. A 2nd monitor and speaker can be attached via the integrated HDMI and Audio port.
ProdGrafik
    Specifications

      General
      • BIOS   AMI UEFI
      • Certification   BSMI, CCC, CE, FCC Class A, UL
      • Cooling System   Fanless design
      • Dimensions (W x H x D)   419.7 x 269 x 56.7 mm (16.52" x 10.59" 2.23")
      • Enclosure
        • Front bezel: Die-cast Aluminum alloy
        • Back housing: PC/ABS Resin
      • Mounting   Panel Mount
      • OS Support   Microsoft® Windows WES7 32bit/64bit /WES8 64bit / Windows 7 32bit/64bit / Windows 8 64bit/Linux Kernel 3.x
      • Power Consumption   18W Typical, 60W Max. (Without Add-on card)
      • Power Input   24V DC +/- 20%
      • Watchdog Timer   1 ~ 255 sec (system)
      • Weight (Net)   6 kg (13.22 lbs)


      System Hardware
      • CPU   Intel 4 th Generation Core i3-4010U 1.7GHz
      • Chipset   Lynx Point-LP
      • Memory   4GB DDR3L 1600MHz SO-DIMM SDRAM
      • LAN   10/100/1000 Base-T x 2
      • Expansion Slots   Full-size Mini PCI-E
      • Storage
        • CFast slot x 1
        • 2.5" SATA SSD slot x 1
        • mSATA slot x 1 (via Mini PCIe slot, can´t be used simultaneously with iDoor)
      • I/O
        • RS-232/422/485 x 1, RS-232 x 1
        • USB 3.0 x 2, HDMI 1.4 x 1
        • Audio Line out x 1, USB 2.0 x 1 (optional)
        • Audio MIC x 1 (optional)


      LCD Display
      • Display Type   WXGA TFT LED LCD
      • Display Size   15.6
      • Max. Resolution   1366 x 768
      • Max. Colors   16.7M
      • Luminance cd/m 2   300
      • Viewing Angle (H/V°)   170/160
      • Backlight Life   50,000 hrs
      • Contrast Ratio   500:1


      Touchscreen
      • Light Transmission   ≥88%
      • Resolution   2048 x 2048 dot
      • Type   Projected capacitive


      Environment
      • Humidity   10 ~ 95% RH @ 40°C, non-condensing
      • Ingress Protection   Front panel: IP66
      • Operating Temperature   0 ~ 55°C (32 ~ 131°F)
      • Storage Temperature   -20 ~ 60°C (-4 ~ 140°F)
      • Vibration Protection   With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)


      Ordering Information
      • TPC-1581WP-433AE   15.6" HD Multi-Touch Panel PC, Intel i3-4010U, 4GB, iDoor


      Accessories
      • PWR-248-AE   150W DC 24V/6.25A Output Power Supply (High power consumption expansion card required, e.g. PoE)
      • PWR-247-BE   63W DC 24V/2.62A Output Power Supply
      • 1702002600   Power Cable US Plug 1.8 M
      • 1702002605   Power cable EU Plug 1.8M
      • 1702031801   Power cable UK Plug 1.8M
      • 1700000596   Power Cable China/Australia Plug 1.8 M
      • EWM-W151H01E   802.11bgn RTL8188EE 1T1R, Half-size Mini-PCIe (also need 9656EWMG00E)
      • 9656EWMG00E   Half-size miniPCIe to Full-size miniPCIe bracket set
      • 1750000318   EMI Antenna 2DBI 2.4GHz SMA CONN for ARK-3384
      • 1750003222   802.11b/g 5dBi Dipole Antenna
      • 1750003418   Wireless Antenna AN2400-5901RS R/P SMA.M9dB Automation Sofware
      • 968WEXP003X   PanelExpress V2.0 300 tags S/W license
      • 968WEXP015X   PanelExpress V2.0 1500 tags S/W license
      • 968WEXP050X   PanelExpress V2.0 5000 tags S/W license
      • 968WEXP2USB   PanelExpress V2.0 S/W USB dongle


      iDoor Modules
      • PCM-2300MR-AE   MR4A16B, 2MByte
      • PCM-26D1PB-AE   Hilscher netX100 FieldBus, ProfiBus, DB9 x 1
      • PCM-26D2CA-AE   SJA1000 CANBus, CANOpen, DB9 x 1
      • PCM-24D2R4    OXPCIe-952 UART, Isolated RS-422/485, DB9 x 2
      • PCM-24D2R2    OXPCIe-952 UART, Isolated RS-232, DB9 x 2
      • PCM-24D4R4    OXPCIe-954 UART, Non-Isolated RS-422/485, DB37 x 1
      • PCM-24D4R2   OXPCIe-954, UART, Non-Isolated RS-232, DB37 x 1
      • PCM-27D24DI-AE   Digital I/O, 16DI / 8DO, DB37 x 1
