Gefen EXT-AVCONFS

A/V Conference Room Processor

Gefen EXT-AVCONFS
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Scales every input and output resolutions up to 1080p, 1920 x 1200, and 2k
  • Switches and converts every A/V source to HDMI
  • Dolby Digital™ decoding and processing
  • Built in 25 W, 2-channel amplifier
  • 2.1 pre-amplifier output
  • High performance frame rate conversion engine
  • Speaker binding posts for plug-and-play installation
  • Auto 3:2 pull-down and 2:2 pull-down detection and recovery
  • Aspect Ratio Control
  • Built-in menu system
  • RS-232 Control
  • Field upgradable firmware
  • Rack-mountable
  • HDCP Compliant
  • Line-level volume control
  • Subwoofer support
Multiple Input A/V Switcher-Scaler for Conference Rooms with Built-In Audio Amplifier

Integrating multiple audio/video sources in a professional setting has never been easier. Gefen’s new A/V Conference Room Processor with built-in audio amplifier connects set top boxes, Blu-ray players, gaming consoles, computers and more. Video is scaled and output in HDMI format with cinema-quality scaling up to 2K or 1080p Full HD resolution, supporting large-scale HDTV displays. The audio is mixed down from 5.1 Dolby™ surround to two-channel audio with support for a powered subwoofer. A built-in 2-channel audio amplifier delivers 25 watts per channel from digital and analog sources, ideal for creating high-fidelity sound in the conference room environment. Two speakers may be connected directly to the amplifier binding posts for "plug and play" installation in any conference room, educational facility or presentation venue.

How It Works

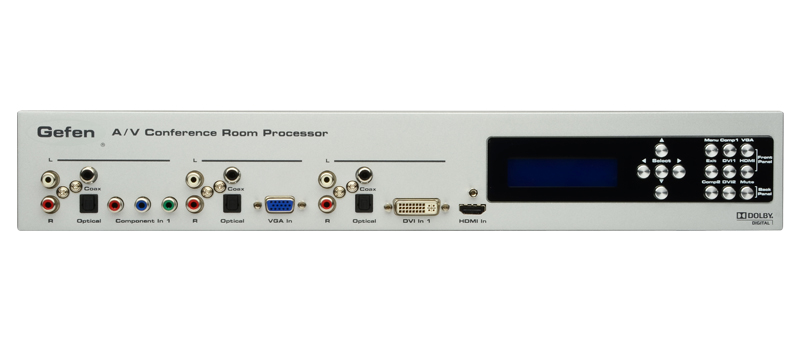

Connect each video input source and corresponding audio source to connectors on the front or rear panel. Power up the A/V Conference Room Processor. The buttons on the front panel are used to select the active A/V source. Use the LCD menu system to select the scaler output resolution and desired A/V processing functions. The A/V Conference Room Processor will convert the selected A/V inputs to HDMI video output with two-channel analog line-level and speaker-level with powered subwoofer support.

ProdGrafik
Specifications
  • Maximum Pixel Clock: 225MHz
  • Analog Video Bandwidth: 350MHz
  • Input Video Signal: 1.2V p-p
  • Input DDC Signal: 5V p-p (TTL)
  • Speaker Output: 25W per channel RMS

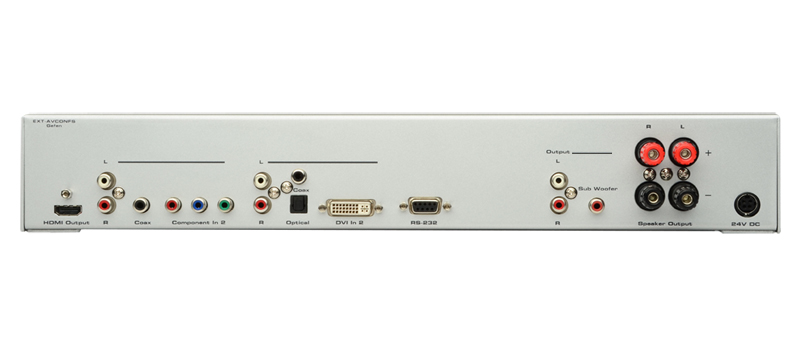

  • Video Input Connectors: (1) HDMI Type-A 19-pin, female, (2) DVI-I 29-pin, female, (1) VGA HD-15, female, (2) Component, RCA
  • Video Output Connector: (1) HDMI Type-A 19-pin, female
  • Audio Input Connectors: (4) TOSLINK, (4) S/PDIF (Coax), (5) L/R analog audio (2 x RCA, female)
  • Audio Output Connectors: (1) L/R analog audio + Subwoofer (3 x RCA female)
  • Speaker Connectors: L/R Binding Posts
  • RS-232 Serial Port: DB-9, female
  • Operating Temperature: 0 - 40 °C
  • Power Supply: 24V DC
  • Dimensions: 16.9" W x 8" D x 2.6" H
  • Shipping Weight: 15 lbs.
