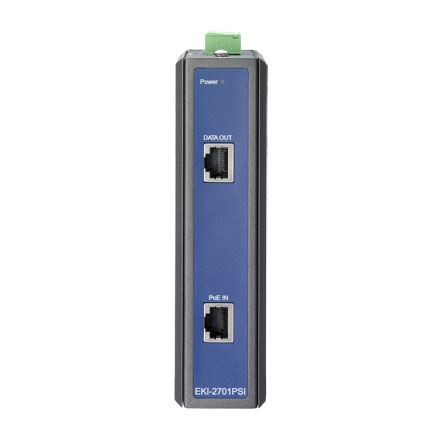

Advantech EKI-2701PSI

Industrial PoE Splitter with Wide Temperature

Advantech EKI-2701PSI
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Supports 10/100/1000 Base-TX for PoE in and Data out
  • IEEE 802.3af compliant split power/data from PoE equipment
  • Power isolation and short circuit protection for power output
  • Supports output power up to 12.95 W at 24 VDC
  • Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism
  • Supports operating temperatures from -40 to 75°C
With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard Ethernet CAT5 cable, EKI-2701PSI plays the role of powered device (PD) and splits power from PoE to Ethernet devices. In this case, both power and data can be transmitted up to 328 feet (100m) from power source equipment (PSE). This product can operate in a wide range of temperature between -40 and 75°C, and the rugged hardware design makes EKI-2701PSI perfect to ensure your PoE Ethernet equipment can meet industrial applications demanding.
ProdGrafik
Part Number             EKI-2701PSI-AE


I/O

Transmission Distance
Ethernet: up to 100 m

Transmission Speed
10/100/1000Mbps


Power Supply

Power Consumption
17.76W @ 48 VDC

Power Input
2 x Unregulated 12 ~ 48 VDC

Power Output
12.95 W @ 24 VDC


Operating System

Temperature (Operating)
-40 ~ 75°C (-40 ~ 167°F)


General

Ethernet Connectors
PoE IN: RJ-45, DATA OUT: RJ-45 10/100/1000 Ethernet

Mounting
DIN-rail, Wall


Interface

Ports Number
2
