PERLE IOLAN DS I/O

Management, Monitoring and Control of High-Value Distributed I/O Assets

PERLE IOLAN DS I/O
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • Universal Digital I/O, Analog input, RTD/Thermocouple temperature sensor input and EIA/RS-232/422/485 offers flexibility for a wide range of applications
  • Dual processor architecture - 87 MIPS main processor along with a 16 MIP I/O co-processor for the best performance on the market
  • Models with AES or 3DES encryption are also available
  • Attached I/O devices can be MODBus UID addressable for operational compatibility
  • Indicators for network and serial interfaces for easy troubleshooting
  • Plug & Play installation utility eliminates configuration hassles for all IOLAN’s on your IP network
  • Advanced event management using Syslog, and SNMP V3 event notification
  • Central management capabilities via a Perle Device Manager for Windows
  • Access IOLAN DS units using common web browsers or command line interface
  • Trueport software provides COM or fixed TTY communications for serial based applications over an Ethernet LAN
  • Software Development Kit available to develop powerful custom applications
  • Next Generation IP support ( IPv6 ) for investment protection and network compatibility
  • Compact and protective solid metal enclosure for tabletop, wall mount or DIN rail mounting
  • DIN Rail mounting option for Industrial Automation applications
  • RoHS and WEEE Compliant
  • Lifetime Warranty
Perle’s Ethernet I/O technology (IOLAN DS I/O Device Servers) enables comprehensive access and control of remote digital I/O, analog I/O, pulse I/O, relays and temperature sensors as well as connections of remote serial equipment on any IP network. The IOLAN DS I/O has the ability to monitor environmental alarms, intrusion detection, relay contact closures and equipment failure. Through remote operator or application control, opening and closing of integrated relay contacts or activation of digital output signals can be incorporated into any response of a critical event.

Management, Monitoring and Control of High-Value Distributed I/O Assets

Ideal for
  • The monitoring and protection of high-value distributed I/O assets and access to its data. This also involves the protection and control of the physical environment along with the ability to take corrective action when necessary. Digital and analog sensors, proximity and mechanical switches, relays, pushbuttons, temperature and humidity sensors can assist in determining the integrity of the asset’s local environment. Information from these sent back to a central support location over a network can help an enterprise react more quickly to an important event or failure.


Why IOLAN DS I/O Device Servers are the preferred choice:
  • Universal Digital I/O, Analog input, RTD/Thermocouple temperature sensor input and EIA/RS-232/422/485 offer flexibility for a wide range of applications

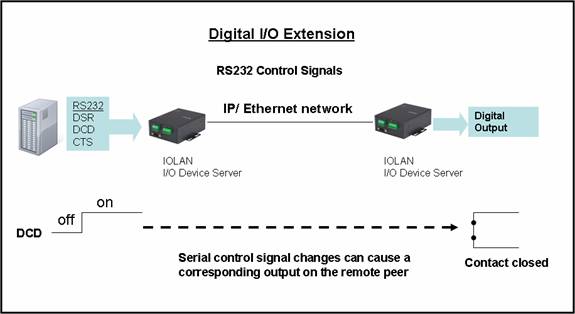

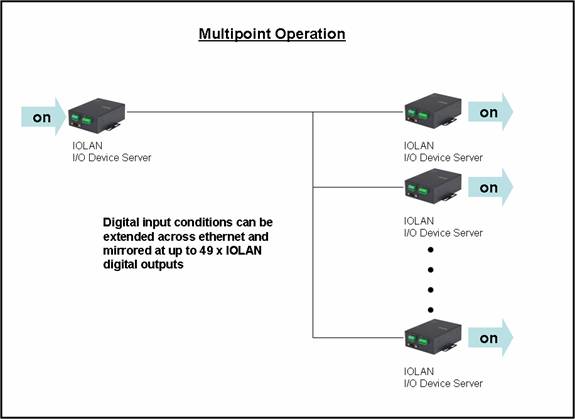

  • Digital I/O Extension provides a cable replacement solution by transmitting digital input signals to a remote output peer over an IP/ Ethernet network
  • Models with AES or 3DES encryption are also available
  • Attached I/O devices can be Modbus UID addressable for operational compatibility
  • Plug & Play installation utility eliminates configuration hassles for all IOLAN’s on your IP network
  • Advanced event management using Syslog, and SNMP V3 event notification
  • Central management capabilities via a Perle Device Manager for Windows
  • Access IOLAN DS units using common web browsers or command line interface
  • Software Development Kit available to develop powerful custom applications


Access I/O Devices over Ethernet using Popular Central Applications

An IOLAN I/O Device Server is ideal for remote I/O management using common SCADA or OPC Servers using Modbus/TCP protocol as well as Network Management Systems ( NMS) utilizing SNMP.

Flexible and Reliable COM/TTY Access to Ethernet I/O

An IOLAN I/O Device Server is ideal for connecting COM/TTY based applications such as Modbus ASCII/RTU to remote I/O devices. Perle’s TruePort re-director provides COM port or fixed TTY connections across an IP network.

An Application Program Interface ( API ) is also available so that custom applications can be developed to access distributed I/O channels attached to remote IOLAN I/O Device Servers. Common serial applications such as Visual Basic can be used to send IOLAN API commands to remote IOLAN I/O Device Servers across an IP network. This API is available for the most popular operating systems today.

Universal I/O

The IOLAN DS I/O device server connects to a wide variety of distributed I/O devices.

Universal I/O on IOLAN I/O Device Servers provides flexibility when used across a wide array of environments. Individual digital channels can be configured as either inputs or outputs. Analog Inputs can support a broad range of voltage or current type devices including industrial grade temperature sensors such as thermocouples and RTDs.

Models with integated solid state relays can be used to control remote contact closures.

Automated response to alarm conditions

IOLAN DS I/O Device Servers have the capability of measuring input conditions and intelligently alerting enterprise resources such as central TCP/IP based applications, Syslog or SNMP. By instantly generating alerts when pre-defined threshold levels have been exceeded, alarm notifications can be passed along when needed. This eliminates the packet based overheads associated with polled environments.

Rugged Industrial-Grade Design

Compact and protective metal enclosure for wall mount or DIN rail mounting environments. Industrial grade unit protection is provided though optical isolation of I/O channels of 2000 Vrms, Ethernet isolation of 1500 Vrms, open/short detection logic on RTD/Thermocouple inputs and 15,000 volts electrostatic discharge protection across all serial pins.

Advanced IP Technology

With support for Next Generation IP (IPv6) the IOLAN range provides organizations with investment protection to meet this rapidly growing standard.

Demand for IPv6, which is compatible with IPv4 addressing schemes, is driven by the need for more IP address. With the implementation and rollout of advanced cellular networks, a robust method is needed to handle the huge influx of new IP addressable devices on the Internet. In fact, the US Department of Defense has mandated that all equipment purchased be IPv6 compatible. In addition, all major Operating Systems such as Windows, Linux, Unix and Solaris, as well as routers, have built-in support for IPv6.

It is therefore important for end users and integrators to select networking equipment that incorporates the IPv6 standard. The IOLAN line with support for IPv6 already built in, is the best choice in serial to Ethernet technology.

Lifetime Warranty

The Perle IOLAN DS is backed by the best service and support in the industry including Perle’s unique lifetime warranty. Since 1976 Perle has been providing its customers with networking products that have the highest levels of performance, flexibility and quality.


Technical Specs for Perle I/O Device Servers

IOLAN DS1 D4, DS1 A4, DS1 D2R2, DS1 T4, DS1 A4R2, DS1 A4D2



Main Processor
    MPC852T, 66 Mhz, 87 MIPS



Memory

    RAM MB
    16

    Flash MB
    4


I/O Processor

    ATMEG48, 16 MIPS


Network/Ethernet

    1 x 10/100Mb RJ45
    1.5 KV magnetic isolation


I/O Connectors

    Removable terminal blocks


Digital I/O

    2 or 4 channels depending on model
    software selectable as inputs or outputs
    optical isolation of 2000V rms


Digital Input

    Dry Contact
    Logic 0 = open. Logic 1= close to GND

    Wet Contact
    Logic 0 = 0-3VDC, Logic 1= 10VDC-30VDC


Digital Output

    Open collector to 30VDC ( source, sink or both )
    200 mA max load
    Digital out ( DO ) or pulse mode


Relay

    Form C type SPDT

    Contact rating
    1A@30VDC, 0.5A @AC: 120VAC

    Breakdown voltage
    500 VAC (50/60 Hz)

    Relay on time
    7 msec; Relay off time: 3 msec.

    Total switching time
    10 msec.

    Insulation resistance
    1000 MW minimum at 500 VDC


Analog Input

    Channels
    4 differential
    16-bit resolution

    Input range
    ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V,0-20 mA, 4-20 mA

    Optical Isolation
    3000 VDC

    Fault and overvoltage protection
    up to ±35 V

    Sampling rate
    10 samples/sec.

    Input impedance
    20 M Ohm

    Accuracy
    ±0.1% or better

    Zero drift
    ±5 µV/° C

    Span drift
    ±25 ppm/° C

    CMR @ 50/60 Hz
    90 dB min


Thermocouple Input

    Types
    J, K, T, E, R, S, B

    Isolation voltage
    2000 VDC

    Sampling rate
    10 samples/sec.

    Accuracy
    ±0.15% or better

    Zero drift
    ±5 µV/° C

    Span drift
    ±25 ppm/° C

    CMR @ 50/60 Hz
    130 dB


RTD ( Resistance Temperature Detector )

    Channels 4 differential inputs

    Input type
    PT100, PT1000, Ni 518

    Optical Isolation
    2000 VDC

    Sampling rate
    10 samples/sec

    Accuracy
    ±0.05% or better

    Zero drift
    ±2.5 µV/° C

    Span drift
    ±25 ppm/° C

    CMR @ 50/60 Hz
    130 dB


Protocols

    IPV6, IPV4, TCP/IP, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, Telnet, raw, reverse Telnet, MODBus/TCP, RCP, WINS, HTTP, SNMPV3*


Management

    Via Web browser
    Perle DeviceManager software to manage single or multiple device servers
    CLI – Telnet or shared console port
    Menu
    SNMP, MIB II, Perle MIB, read and write capabilities
    SYSLOG
    Easy Configuration Wizard

    Failsafe mode
    Default outputs if loss of communication occurs

    Set a personalized factory default for IOLANs


Serial Port

    Software selectable EIA/RS-232/422/485
    DB9M connector
    Full modem and hardware flow control on RS-232
    50bps to 230Kbps for EIA-232
    Customizable baud rate support for unique speed requirements
    up to 230Kbps for EIA-422/485
    SUN Break Safe
    Full bidirectional modem support
    15Kv ESD protection on all signals
    EIA 232 full duplex
    EIA 422 full duplex
    EIA 485 4 wire, full duplex
    EIA 485 2 wire, half duplex, with echo
    EIA 485 2 wire, half duplex, without echo


Indicators

    Power/Ready
    Network Link activity

    Serial
    Transmit and Receive data LEDs


Dimensions, Weight

    Dimensions (L x W x H):
    12.7 x 9.2 x 4.5 (cm)

    Weight
    0.5 kg


Power

    9-30V DC on terminal blocks.
    Optional AC adapters available from Perle
    p/n 04031154 (USA), 04031151 (UK), 04031152 (EU)


TruePort: Fixed TTY/COM port emulation software.

    TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. Perle supports the most comprehensive driver set in the industry.


Environmental

    Operating Temperature
    0C to +55C (32F to +131F)

    Storage Temperature
    -40C to +66C (-40F to +150F)

    Reach, RoHS and WEEE Compliant

    Chassis
    Metal with an IP30 ingress protection rating


Approvals

    FCC Part 15A, CE, CAN/CSA 22.2, UL/CN 60950, EN 55022 Class A, EN 55024 Class A, CFR 47, ICES-003, IEC 60950-1


Ordering Information


           Available Modules

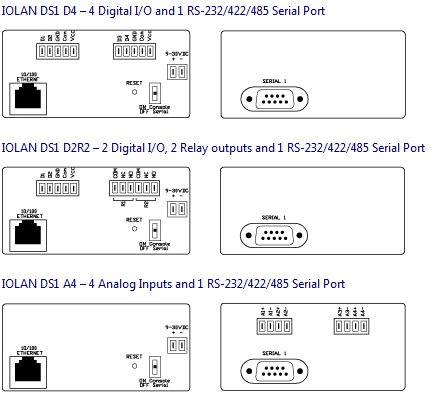

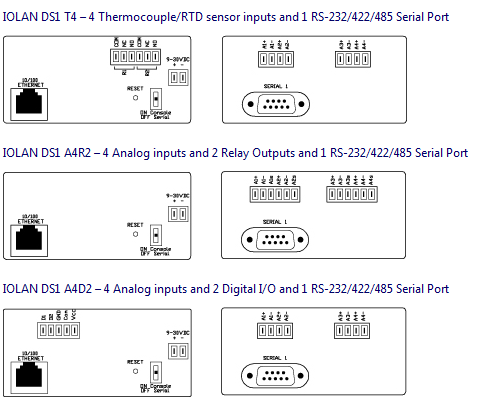

IOLAN DS1 D2R2 two digital I/O and two relay outputs,
1 x DB9M serial port, software selectable RS232/422/485 interface, 10/100 Ethernet.
Terminal block connectors for power and I/O
IOLAN DS1 D4 four digital I/O,
1 x DB9M serial port, software selectable RS232/422/485 interface, 10/100 Ethernet.
Terminal block connectors for power and I/O
IOLAN DS1 A4 four analog inputs,
1 x DB9M serial port, software selectable RS232/422/485 interface, 10/100 Ethernet.
Terminal block connectors for power and I/O
IOLAN DS1 T4 four thermocouple/RTD inputs,
1 x DB9M serial port, software selectable RS232/422/485 interface, 10/100 Ethernet.
Terminal block connectors for power and I/O
IOLAN DS1 A4R2 four analog inputs and two relay outputs,
1 x DB9M serial port, software selectable RS232/422/485 interface, 10/100 Ethernet.
Terminal block connectors for power and I/O
IOLAN DS1 A4D2 four analog inputs and two digital I/O,
1 x DB9M serial port, software selectable RS232/422/485 interface, 10/100 Ethernet.
Terminal block connectors for power and I/O
